Fuel Pump

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect "fuel level sensor unit and fuel pump" harness connector.
  2. Check resistance between "fuel level sensor unit and fuel pump" terminals 1 and 3.

    Resistance: Approximately 0.2 - 5.0Ω [at 25°C (77°F)]

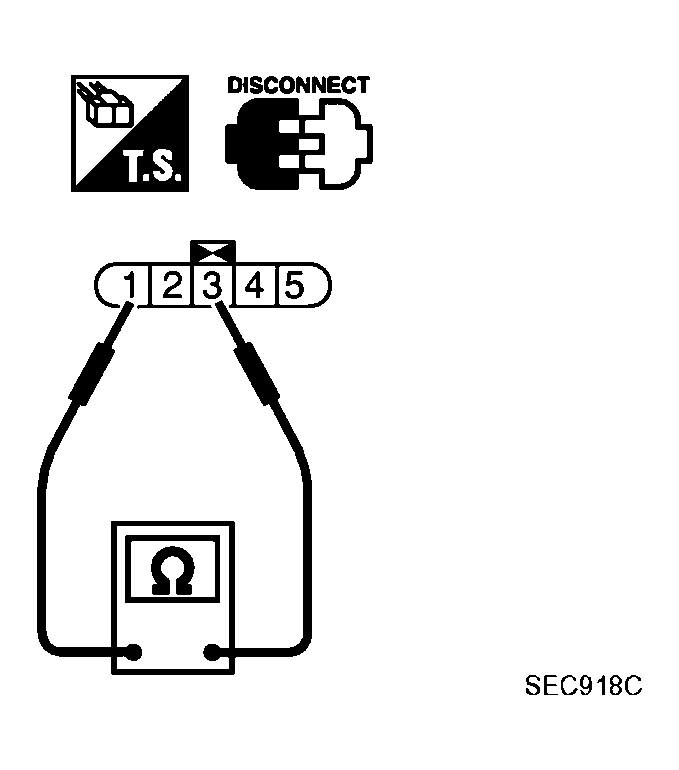

Fig 1: Identifying Resistance Between "Fuel Level Sensor Unit And Fuel Pump" Terminals 1 And 3
G04203309Courtesy of NISSAN MOTOR CO., U.S.A.
