Key Unlock

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Check operation by applying battery voltage to key switch and key lock solenoid.

CAUTION: Be careful not to cause burnout of the harness.

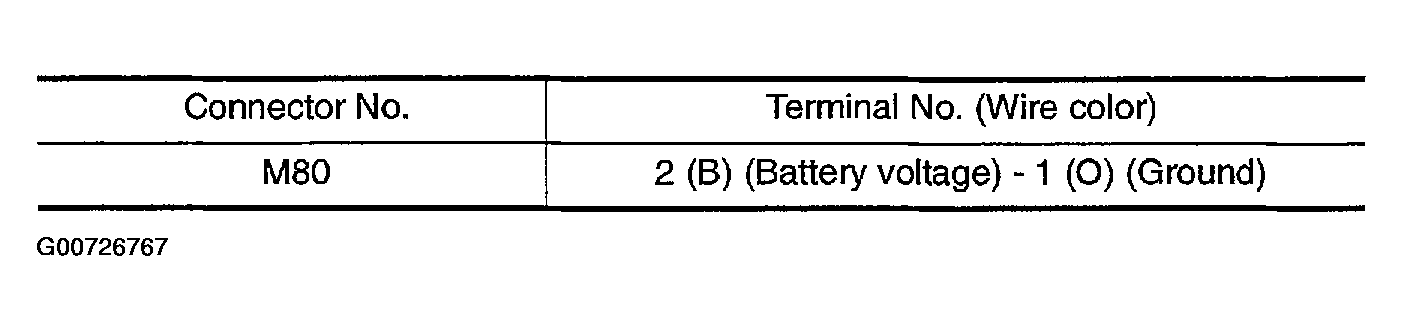

Fig 1: Applying Voltage Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

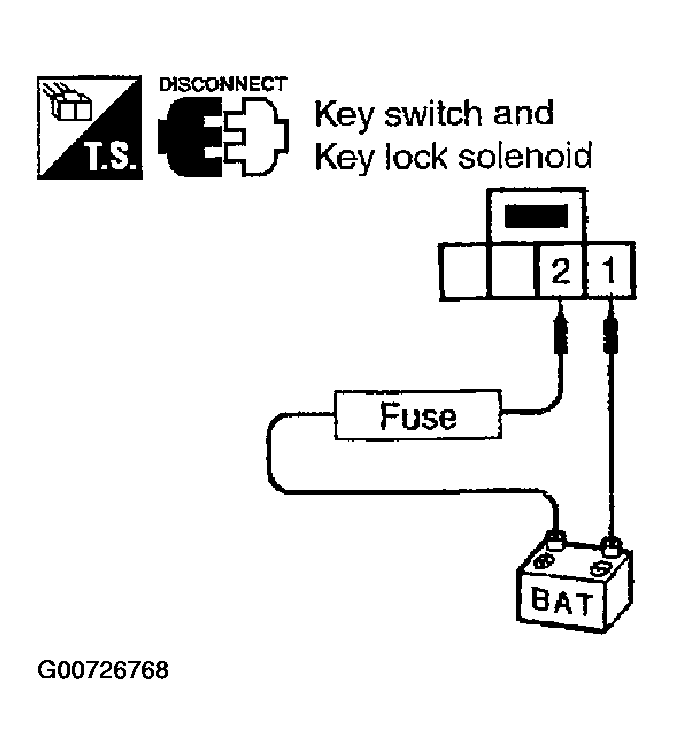

Fig 2: Applying Voltage To Key Switch And Key Lock Solenoid

Courtesy of NISSAN MOTOR CO., U.S.A.
