Stop Lamp Switch

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals of the stop lamp switch.

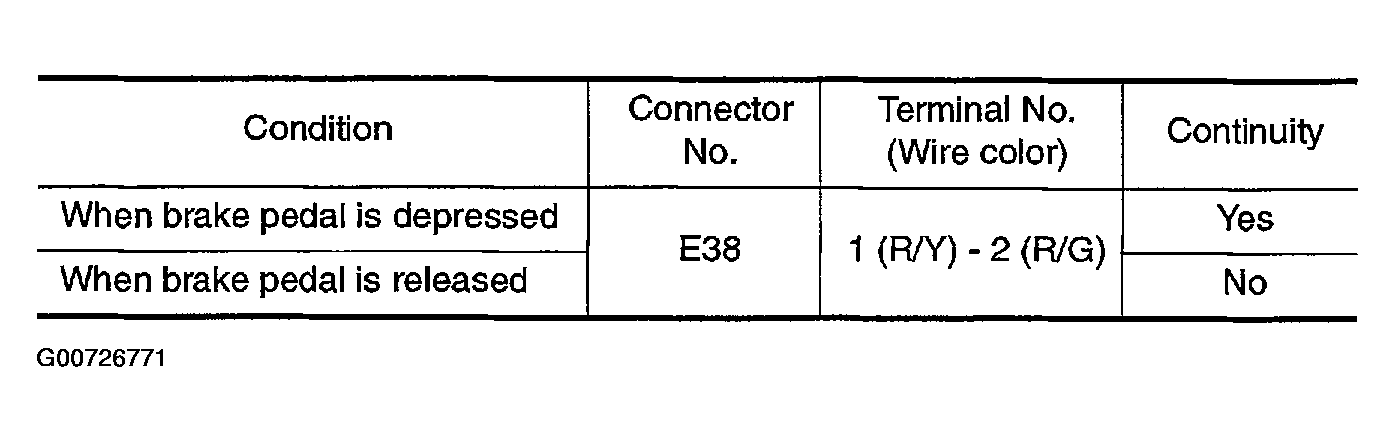

Fig 1: Continuity Table
Courtesy of NISSAN MOTOR CO., U.S.A.

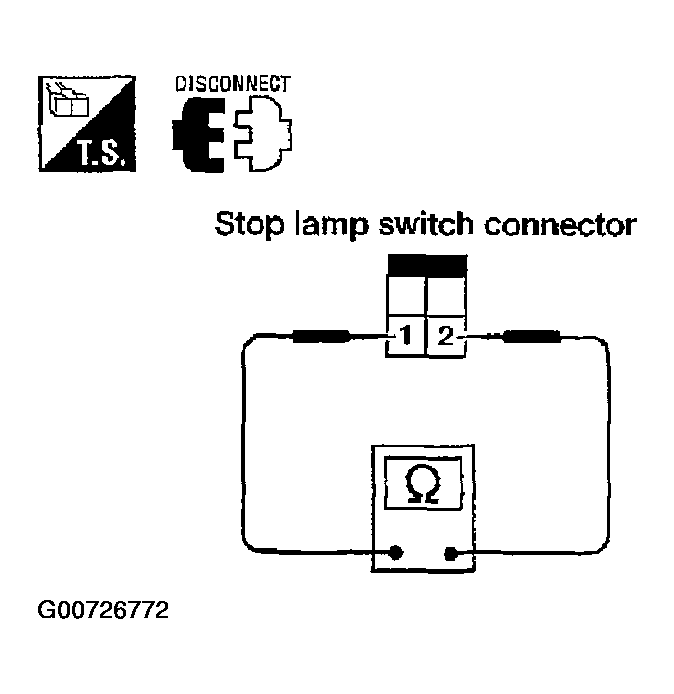

Fig 2: Checking Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.

Check stop lamp switch after adjusting brake pedal.
