Key Interlock Cable: Removal

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Unlock slider from adjuster holder and remove rod from cable.

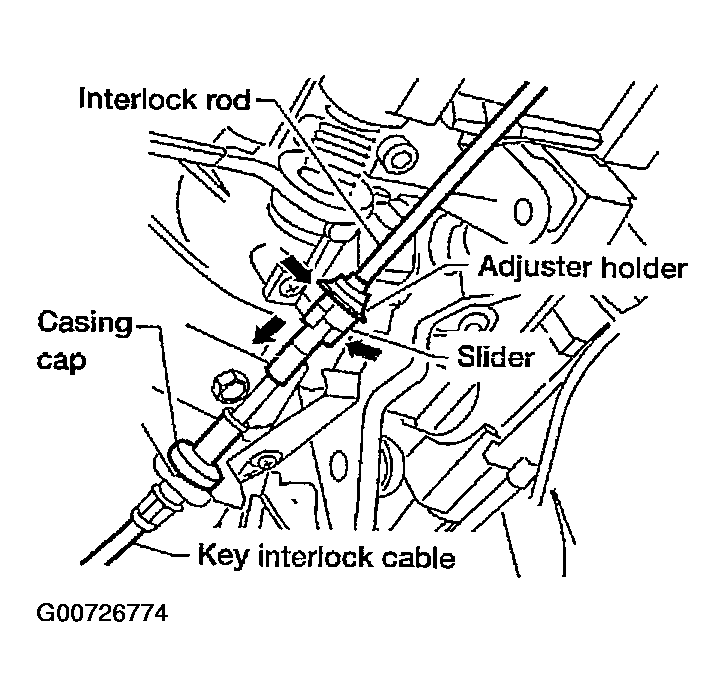

Fig 1: Unlocking Slider
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove casing cap from bracket.

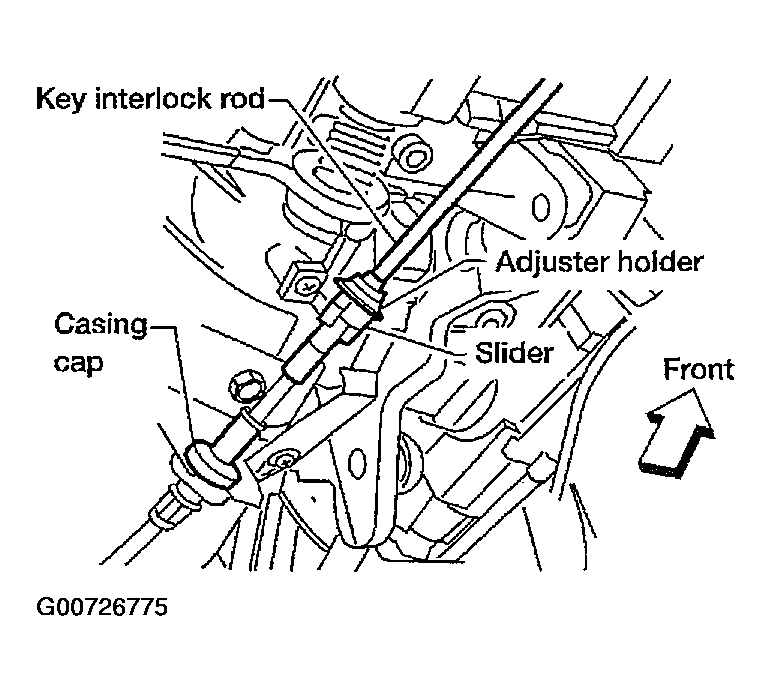

Fig 2: Removing Casing Cap
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect the holder from the key cylinder and remove the key interlock cable.

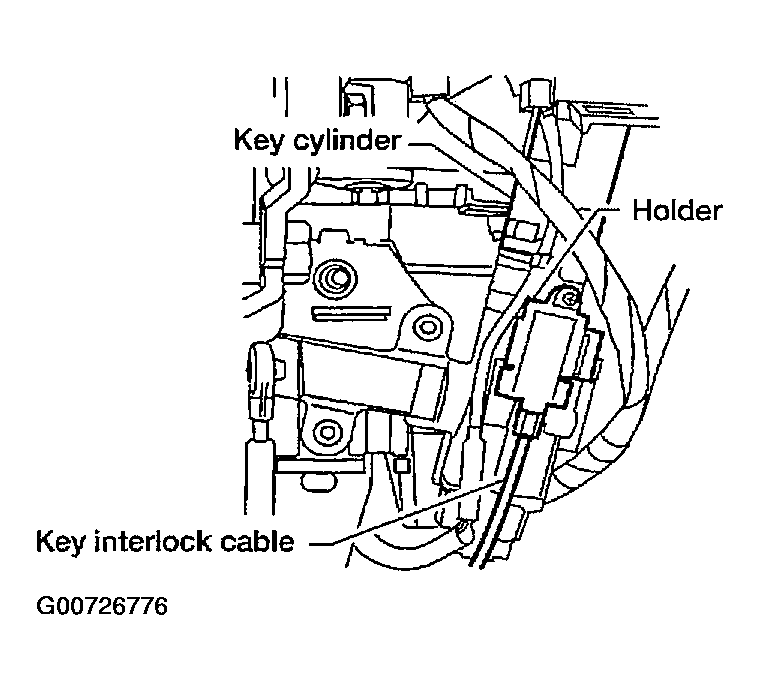

Fig 3: Disconnecting The Holder
Courtesy of NISSAN MOTOR CO., U.S.A.
