Throttle Control Motor Relay

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Apply 12V direct current between relay terminals 1 and 2.

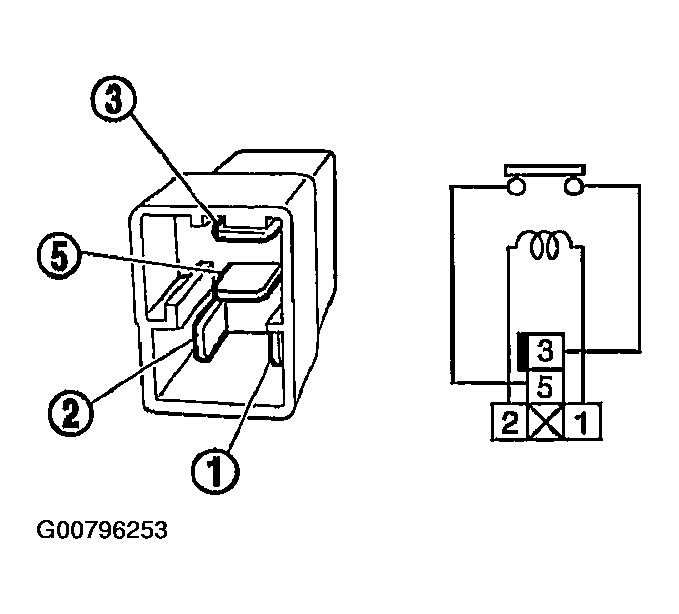

Fig 1: Identifying Relay Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
Check continuity between relay terminals 3 and 5.

Fig 2: Checking Continuity Between Relay Terminals 3 & 5
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace throttle control motor relay.
