Data Link Connector: Wiring Diagram
WARNING:
This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

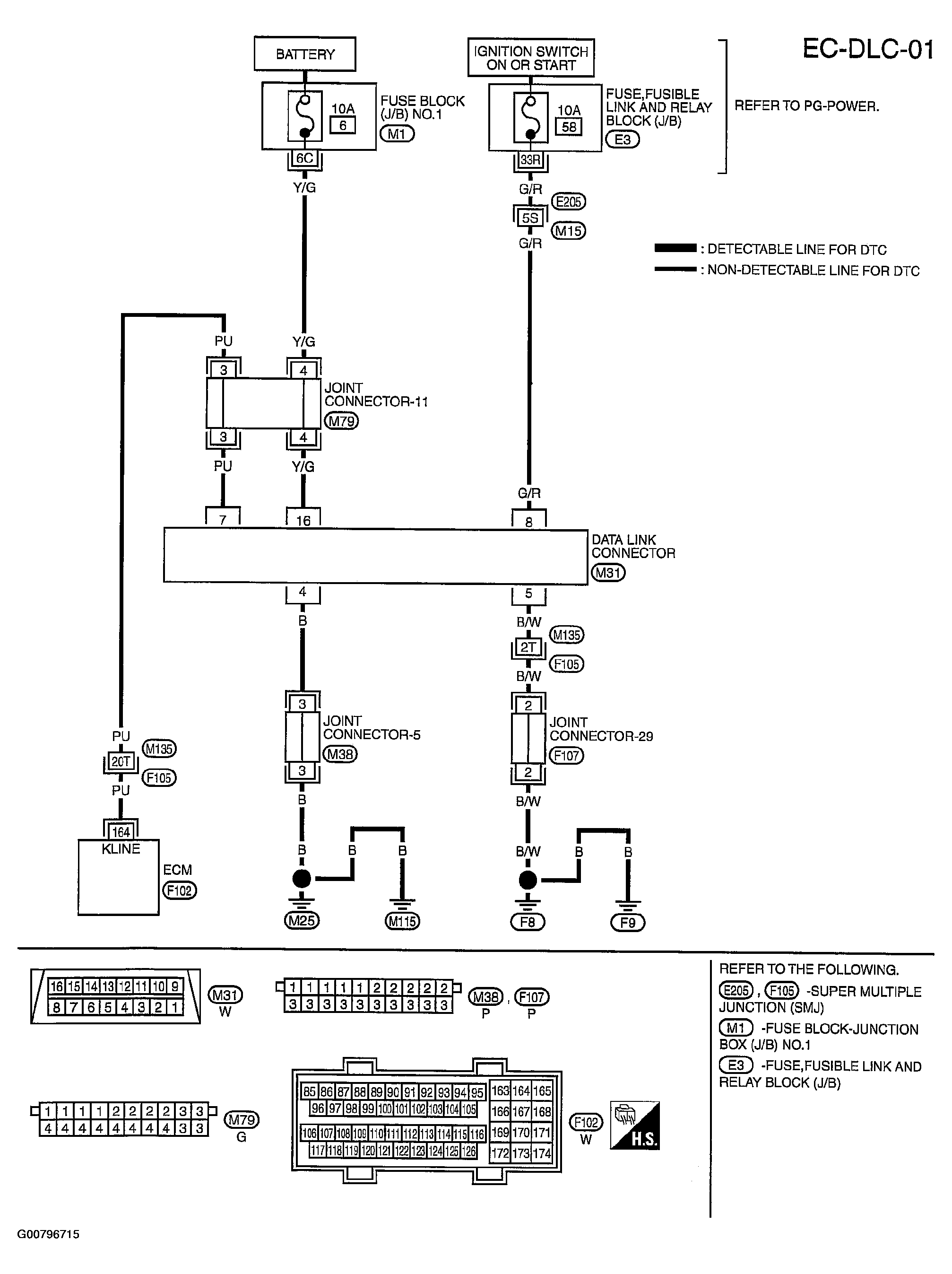

Fig 1: Circuit Diagram - Data Link Connector - EC-DLC-01
Courtesy of NISSAN MOTOR CO., U.S.A.
