Without CONSULT-II
WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
- Stop engine and disconnect vacuum hose connected to power valve actuator.
- Disconnect VIAS control solenoid valve harness connector.
- Start engine and let it idle.

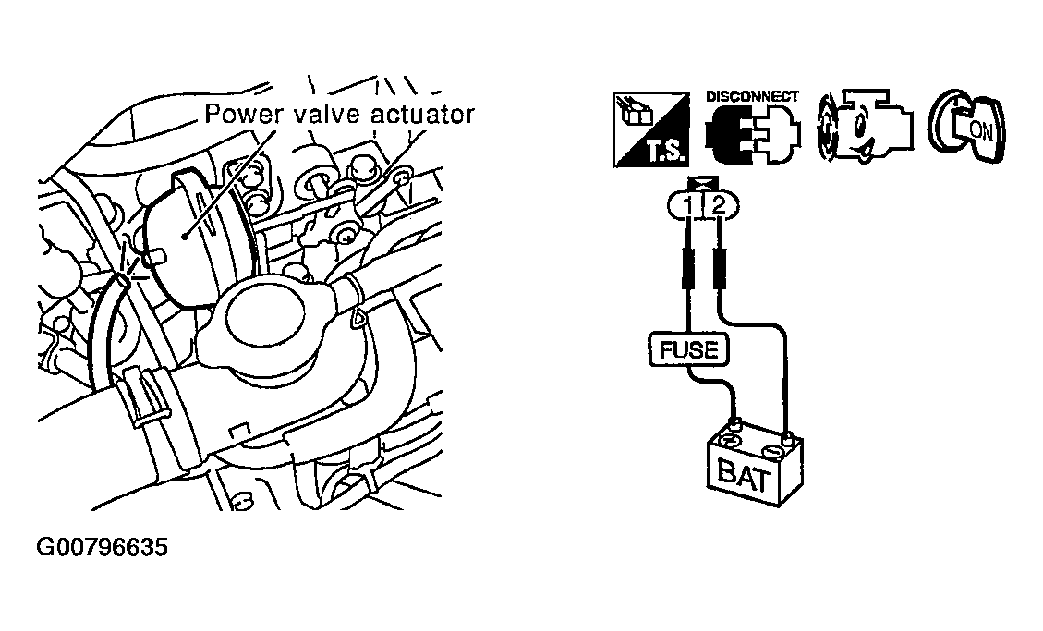

- Apply 12V of direct current between VIAS control solenoid valve terminals 1 and 2.

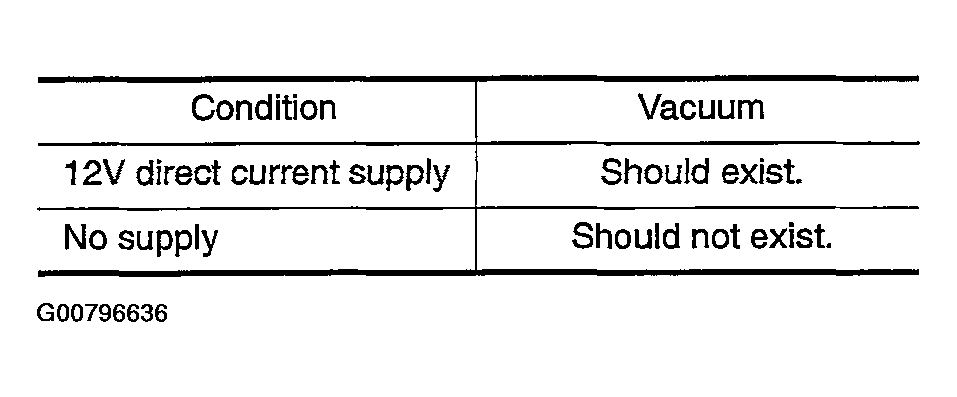

- Check vacuum existence under the following conditions.
OK or NG
- OK: Repair or replace power valve actuator.
- NG: GO TO 4.
