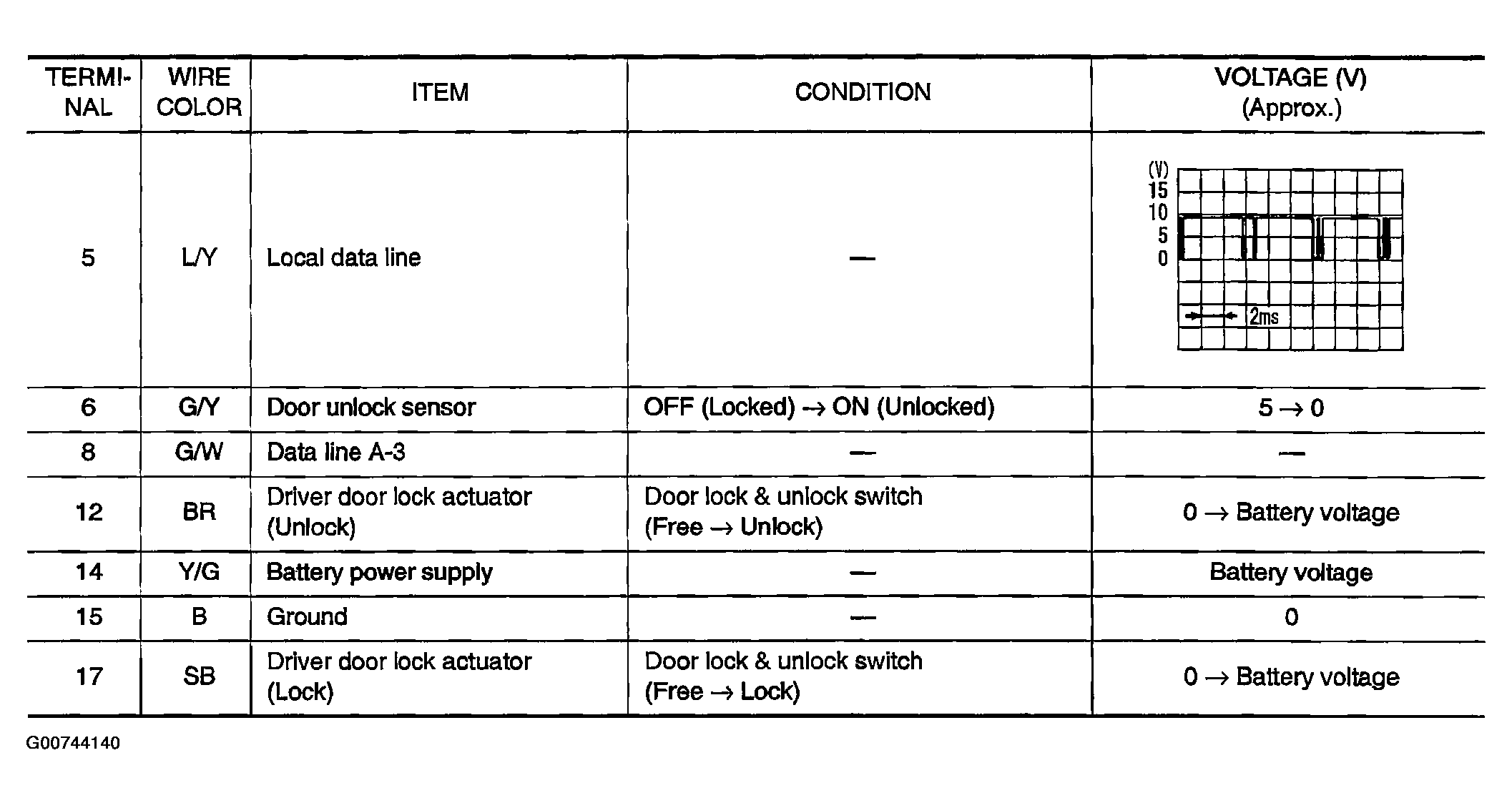

Terminal and Reference Value for Driver Door Control Unit (LCU01)

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
