CAN Communication Inspection Using CONSULT-II (Self-Diagnosis)

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

SELF-DIAGNOSTIC RESULT CHECK
1. Connect to CONSULT-II, and select "BCM" on "SELECT SYSTEM" screen.
2. Select "BCM control unit" on "SELECT WORK ITEM" screen, and select "SELF-DIAG RESULTS".
3. Check display content in self-diagnostic results.

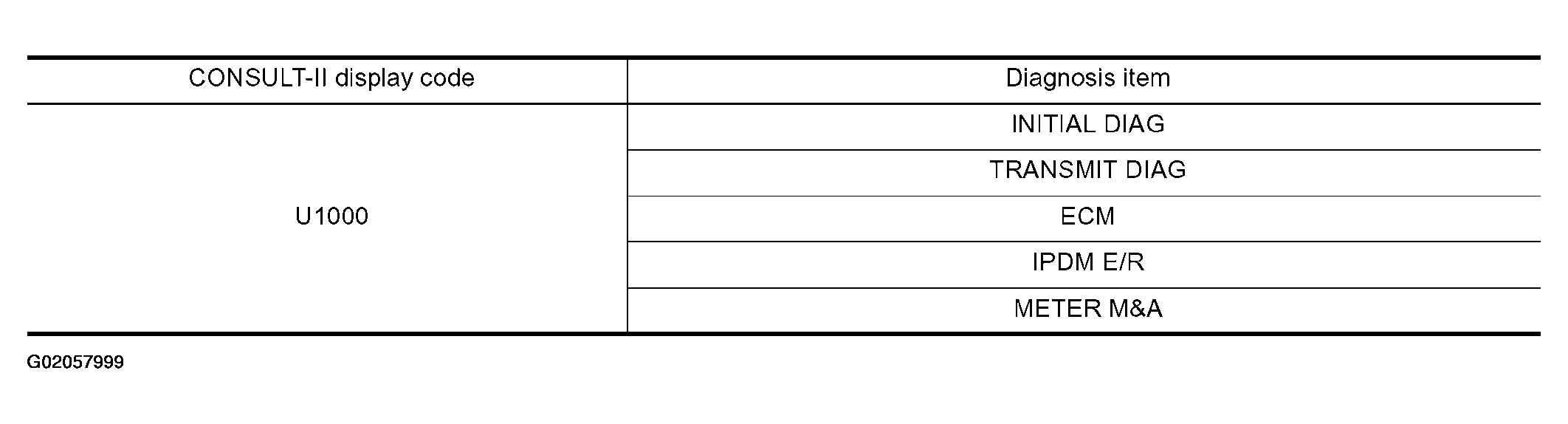

  Fig 1: Identifying CONSULT-II Display Item And Code
  Courtesy of NISSAN MOTOR CO., U.S.A.
Contents displayed

No malfunction : Inspection End

Malfunction in CAN communication system : After printing the monitor items, go to "CAN System". Refer to "CAN SYSTEM " article.
