How To Change The Display For ODO/Trip Meter

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

The CAN communication signals (vehicle speed signal) from VDC/TCS/ABS control unit, and the memory signals from the meter memory circuit are processed by the combination meter, and the mileage is displayed.
Operating the ODO/trip meter switch allows switching the mode in the following order.

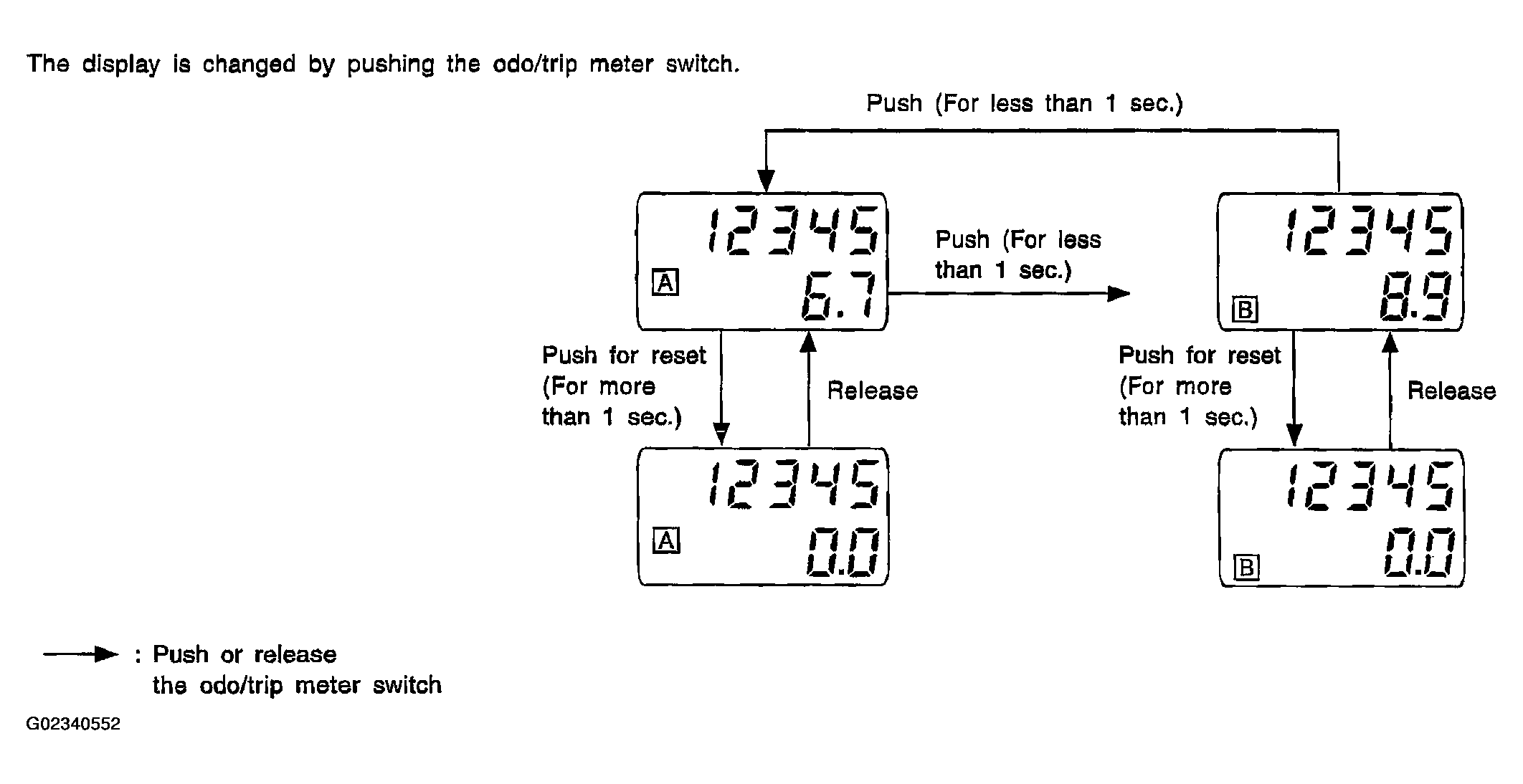

Fig 1: Identifying ODO/Trip Meter Display Modes
Courtesy of NISSAN MOTOR CO., U.S.A.
The odometer/trip display switching and trip display resetting can be identified by the time from pressing the odometer/trip switch to releasing it.
When resetting with trip A displayed, only trip A display is reset (same as trip B).
