Schematic (With Left Front Only Power Window Anti-pinch System)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

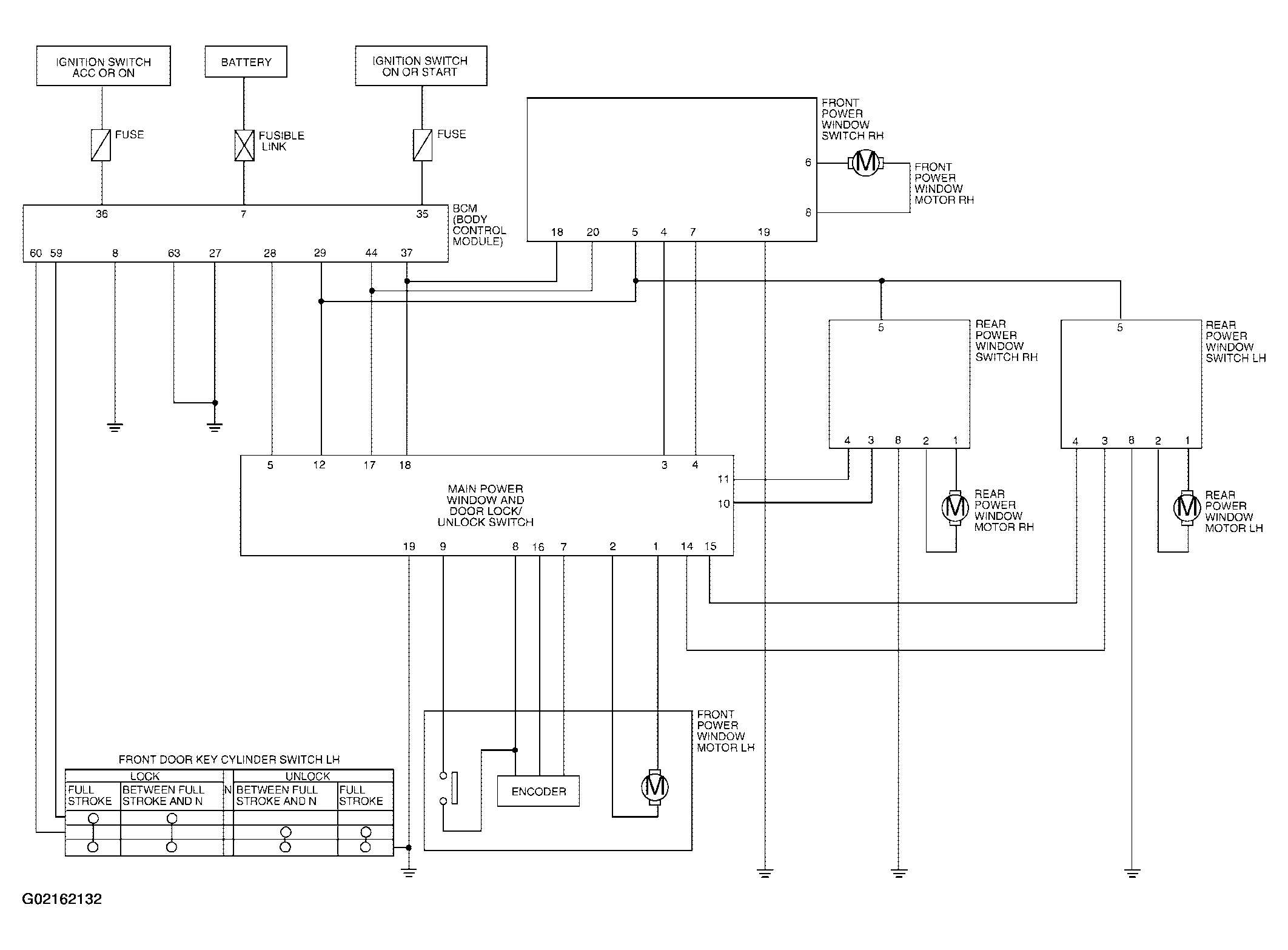

Fig 1: Schematic Diagram - Power Window System (With Left Front Only Power Window Anti-Pinch System)

Courtesy of NISSAN MOTOR CO., U.S.A.
