Shift Lock System Electrical Parts Location

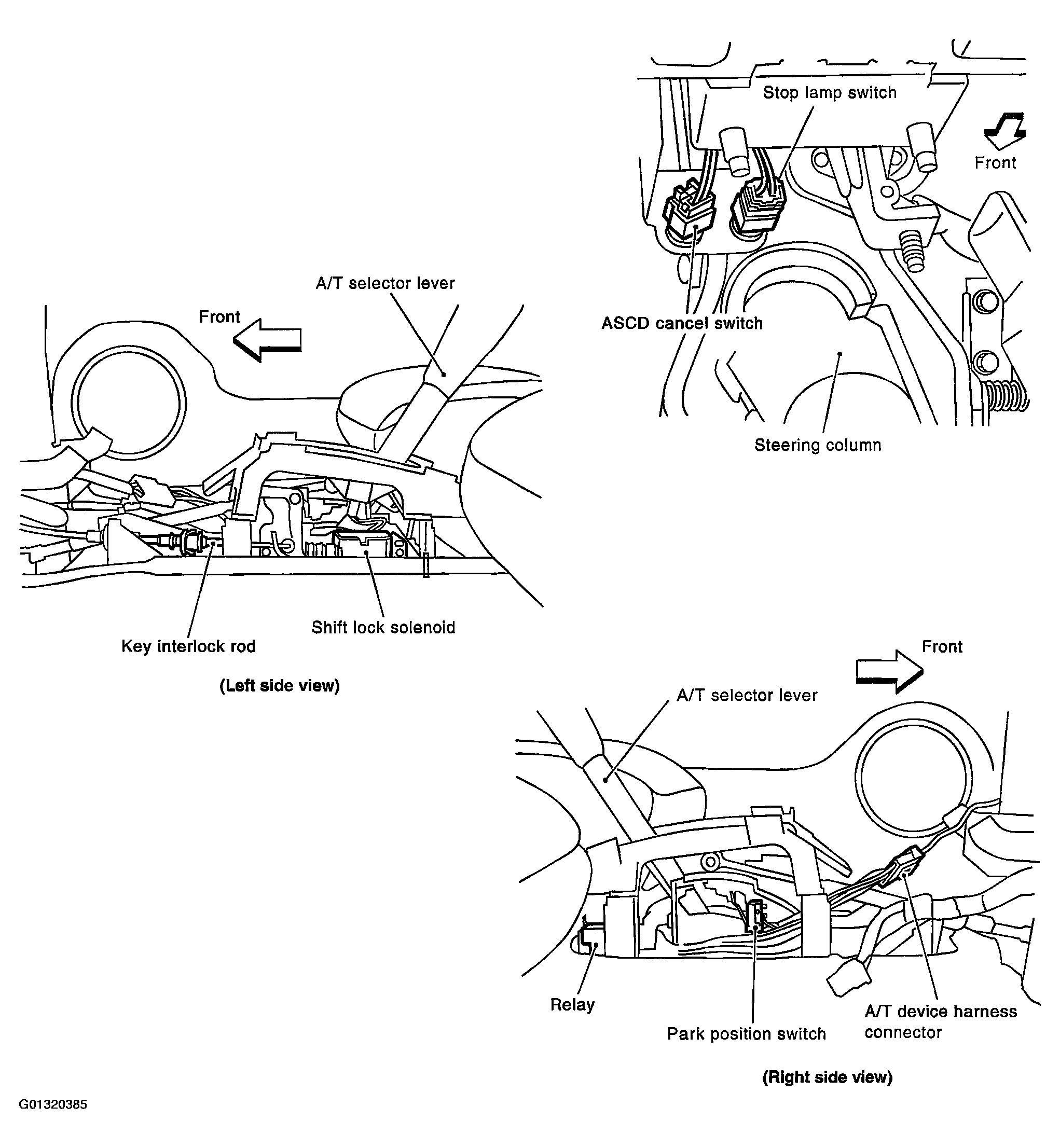

Fig 1: Locating Shift Lock System Electrical Components
G01320385Courtesy of NISSAN MOTOR CO., U.S.A.
