DTC Work Support Mode

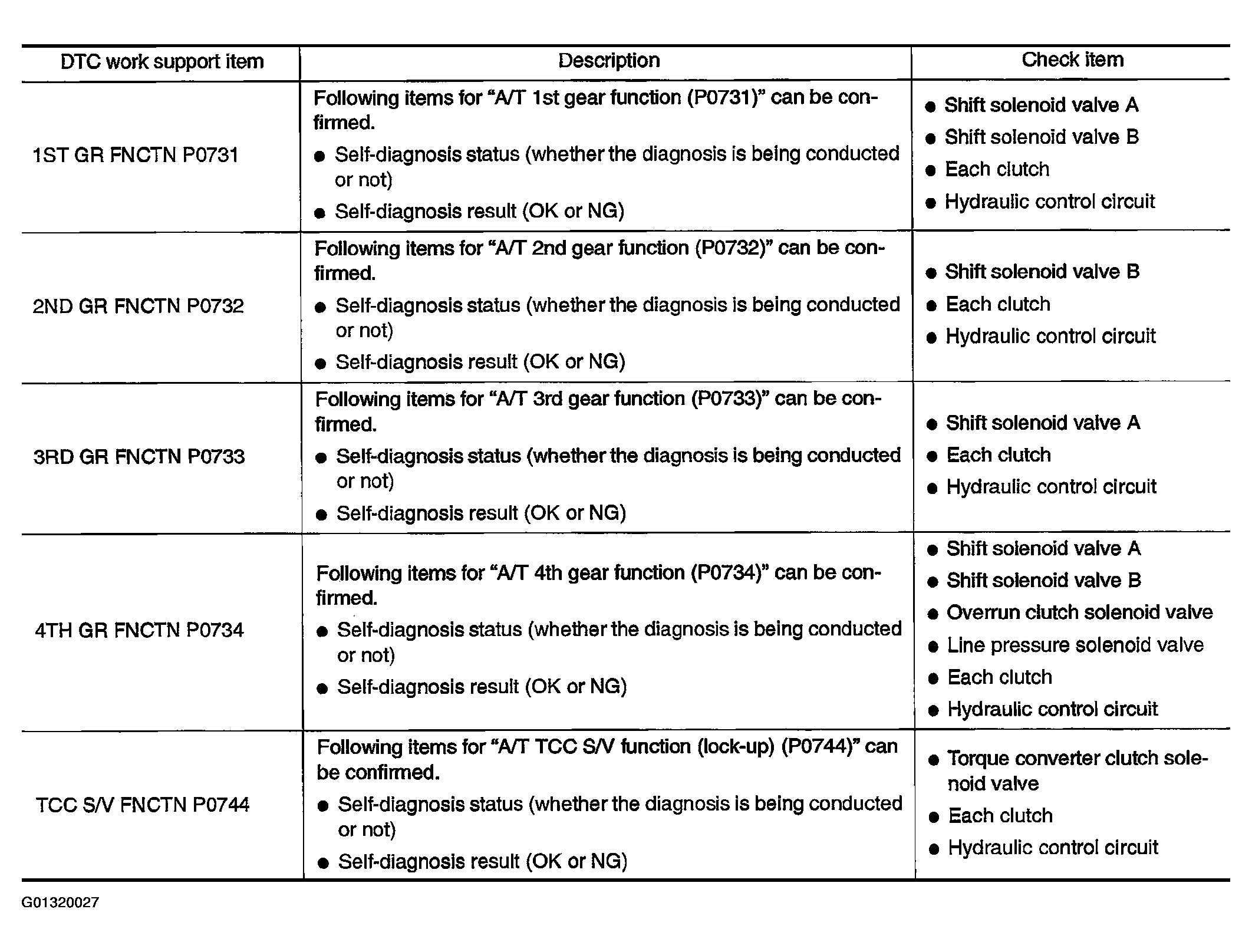

Fig 1: DTC Work Support Mode Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
