CONSULT-II Setting Procedure

Turn ignition switch OFF.

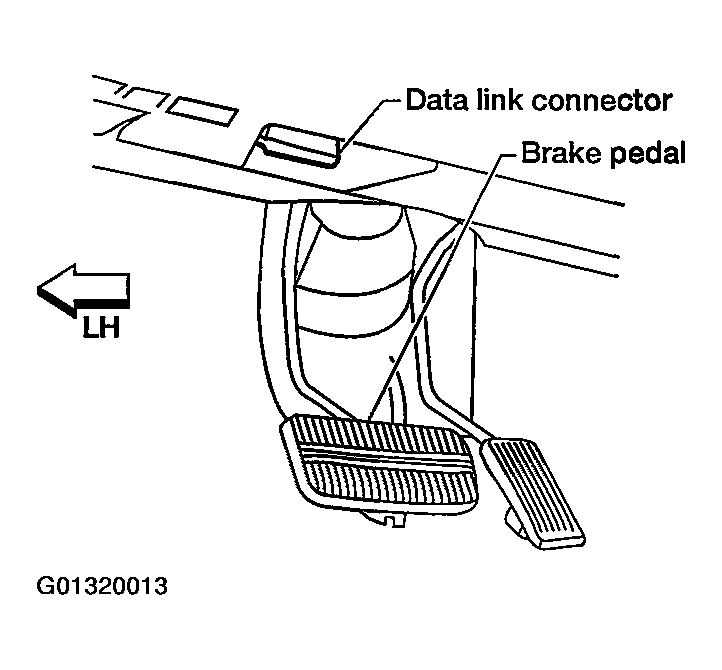

Connect CONSULT-II to data link connector, which is located in left side dash panel.

Fig 1: Connecting CONSULT-II To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START".

Fig 2: CONSULT-II Display - Touch "START"
Courtesy of NISSAN MOTOR CO., U.S.A.

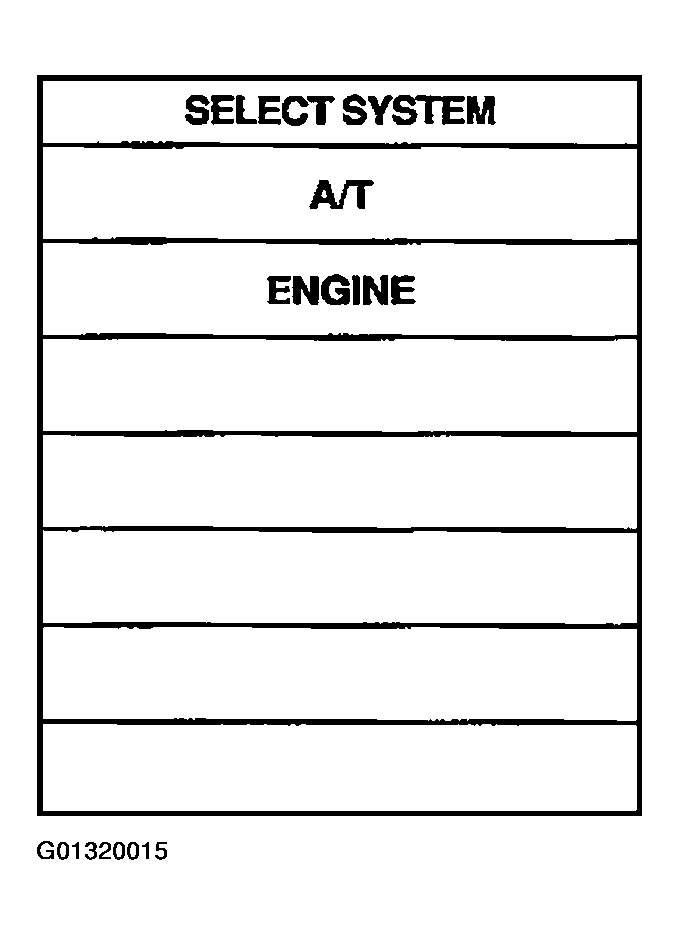

Touch "A/T".

Fig 3: CONSULT-II Display - Touch "A/T"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DTC WORK SUPPORT".

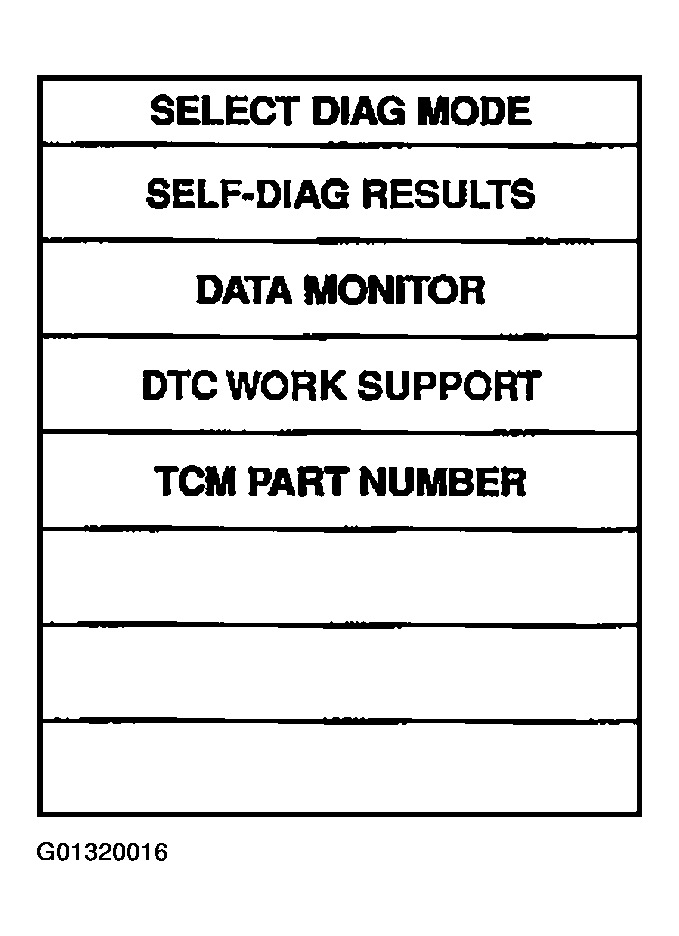

Fig 4: CONSULT-II Display - Touch "DTC WORK SUPPORT"
Courtesy of NISSAN MOTOR CO., U.S.A.

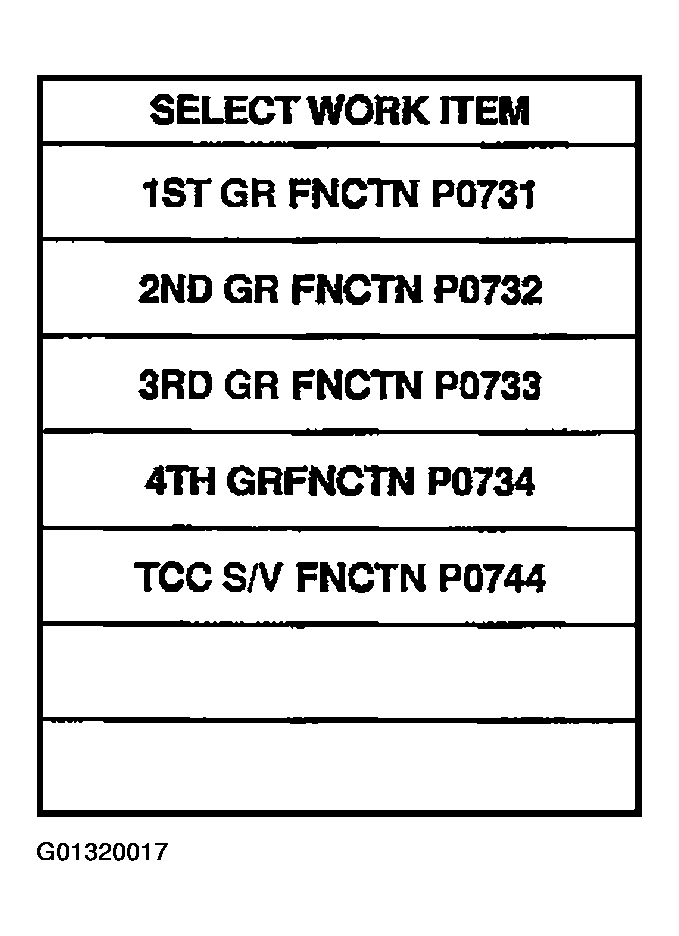

Touch select item menu (1ST, 2ND, etc.).

Fig 5: CONSULT-II Display - Touch "Touch Select Item Menu"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

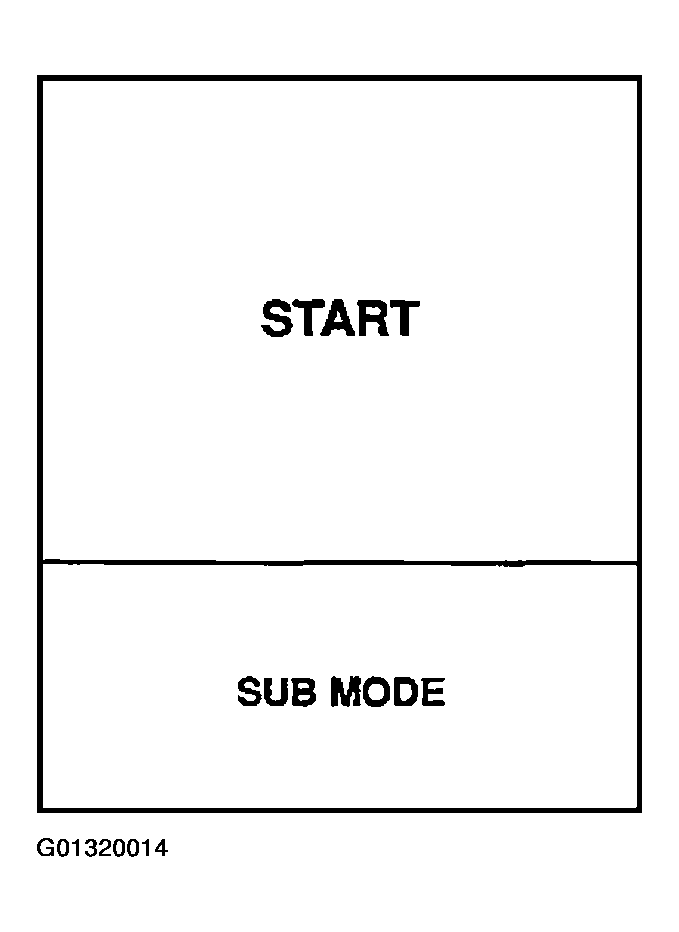

Fig 6: CONSULT-II Display - Touch "START"
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".

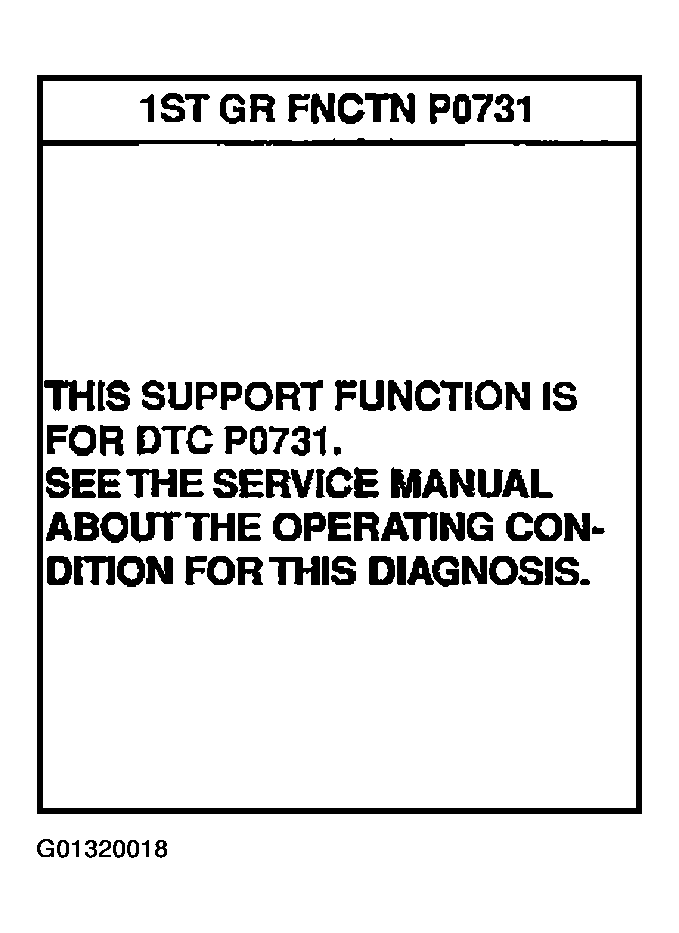

Fig 7: CONSULT-II Display - DTC Confirmation Procedure
Courtesy of NISSAN MOTOR CO., U.S.A.

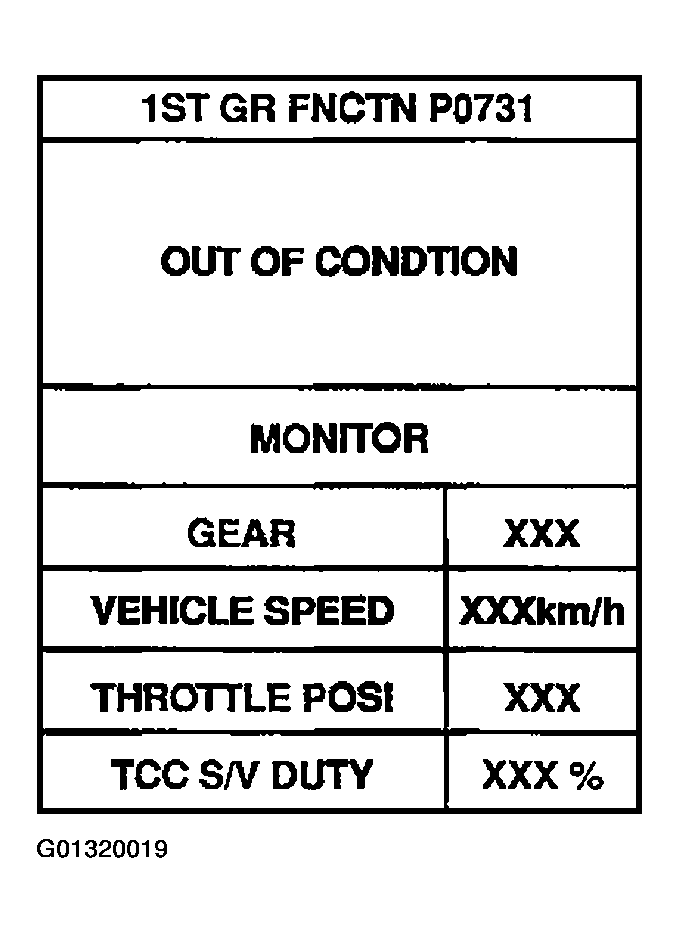

- When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING".

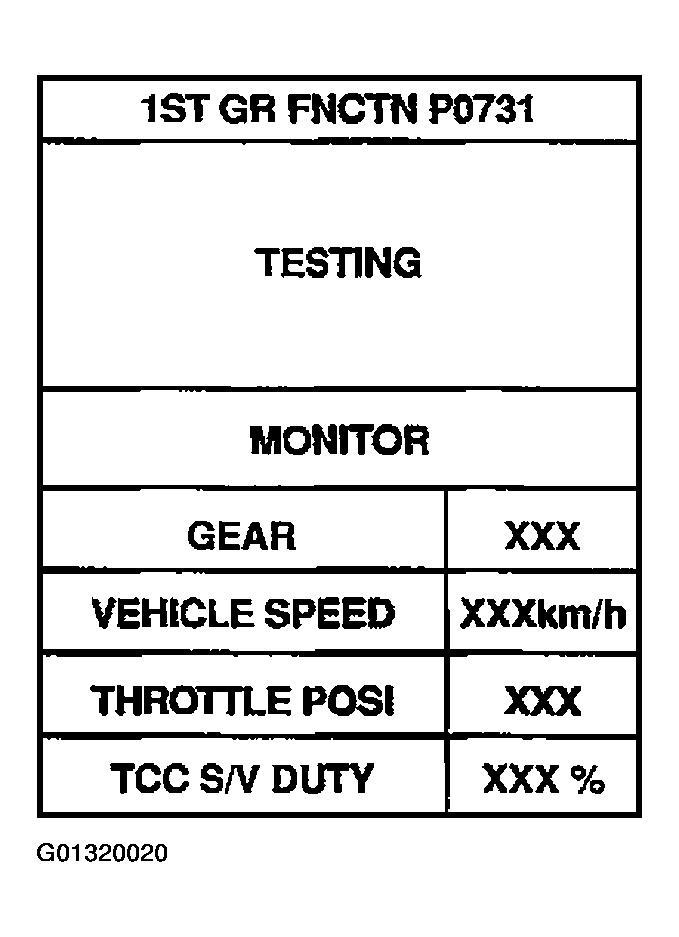

Fig 8: CONSULT-II Display - Testing
Courtesy of NISSAN MOTOR CO., U.S.A.
Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".

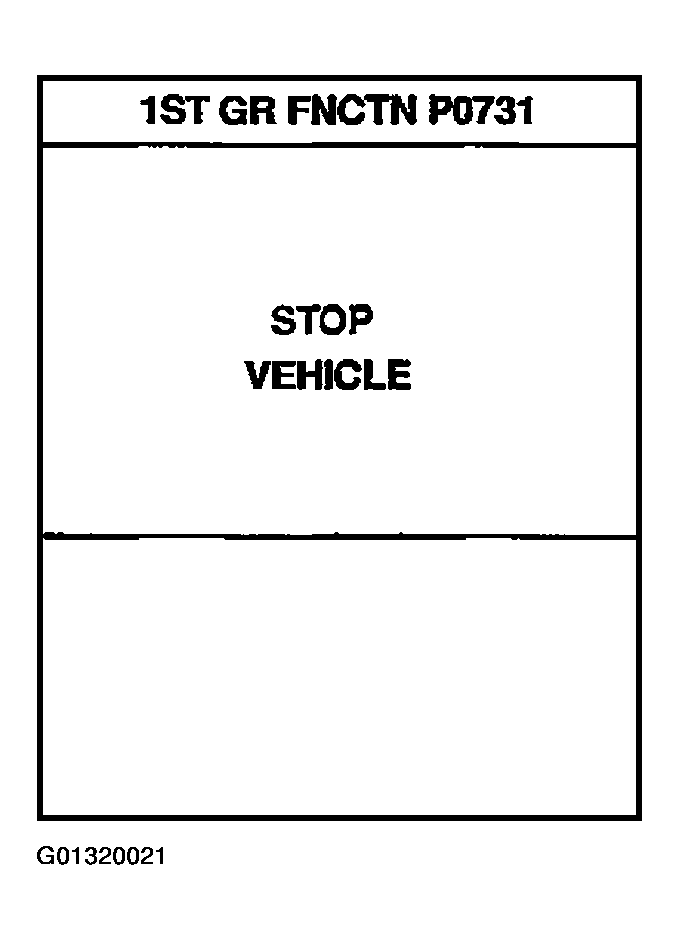

Fig 9: CONSULT-II Display - Stop Vehicle
Courtesy of NISSAN MOTOR CO., U.S.A.

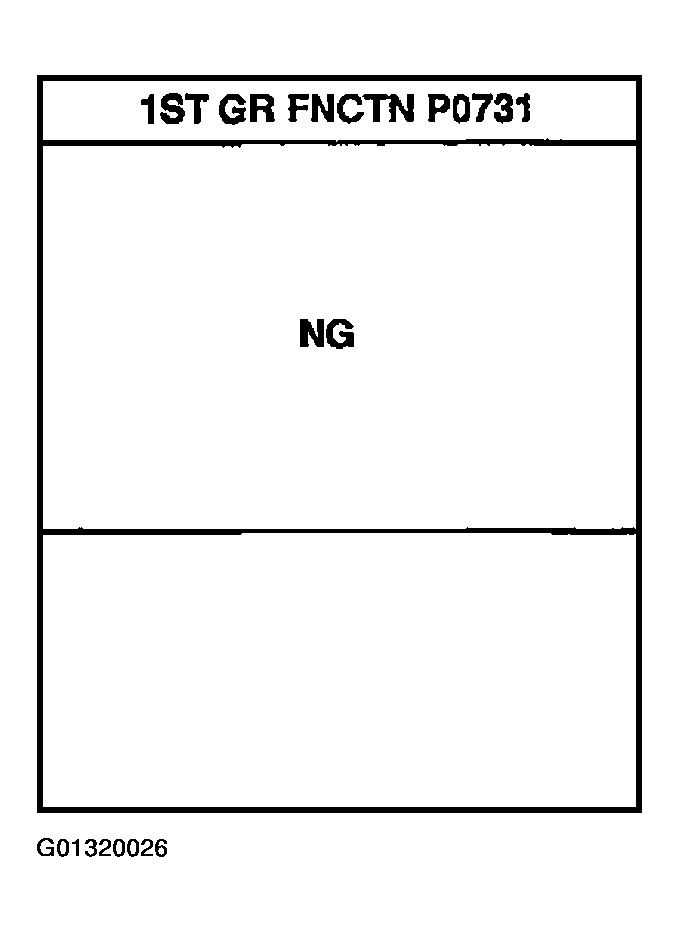

Fig 10: CONSULT-II Display - NG
Courtesy of NISSAN MOTOR CO., U.S.A.

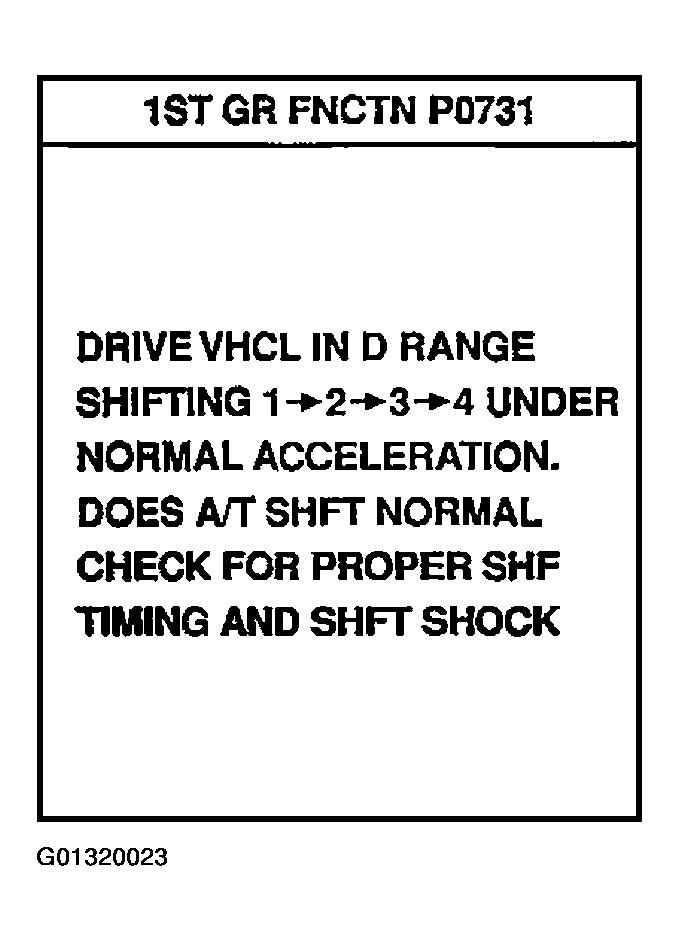

Perform test drive to check gear shift feeling in accordance with instructions displayed.

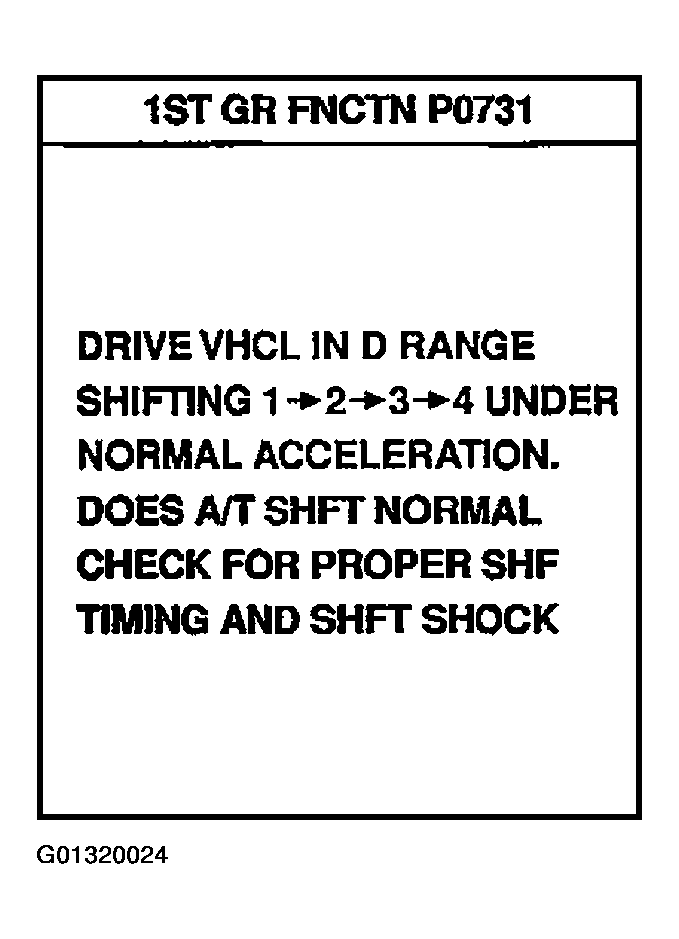

Fig 11: CONSULT-II Display - Performing Test Drive
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "YES" or "NO".

Fig 12: CONSULT-II Display - Touch "YES Or NO"
Courtesy of NISSAN MOTOR CO., U.S.A.

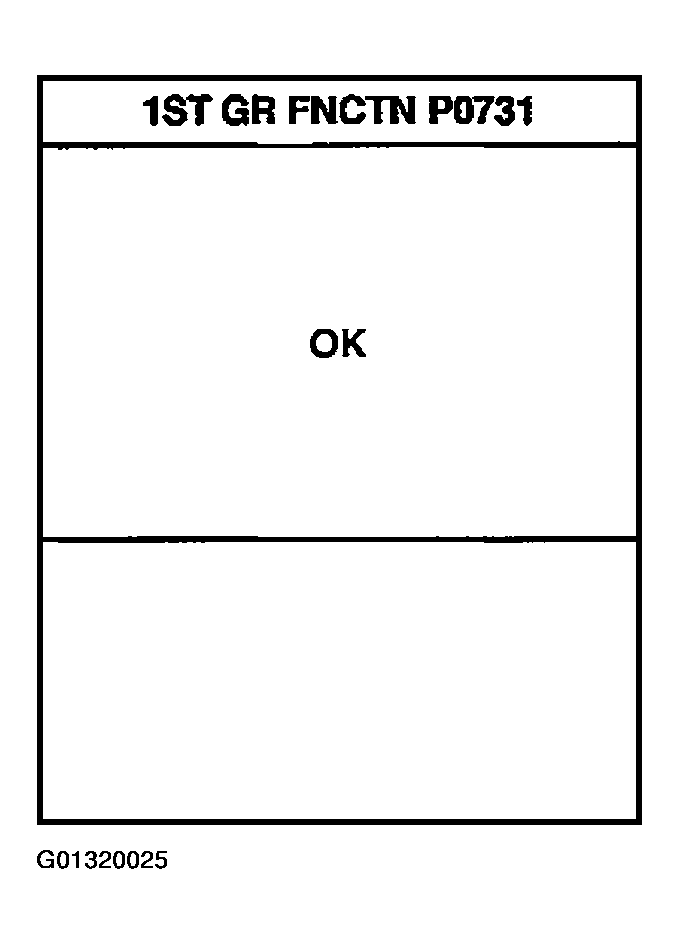

CONSULT-II procedure ended.

Fig 13: CONSULT-II Display - Touch "OK"
Courtesy of NISSAN MOTOR CO., U.S.A.

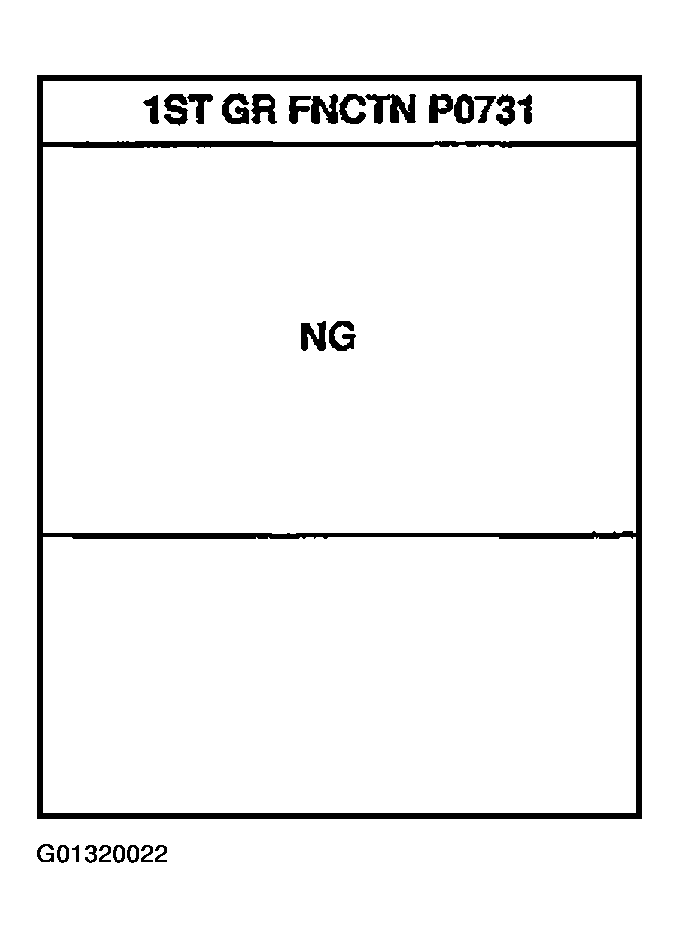

Fig 14: CONSULT-II Display - Touch "NG"
Courtesy of NISSAN MOTOR CO., U.S.A.

If "NG" appears on the screen, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".
