Data Monitor Mode (A/T)

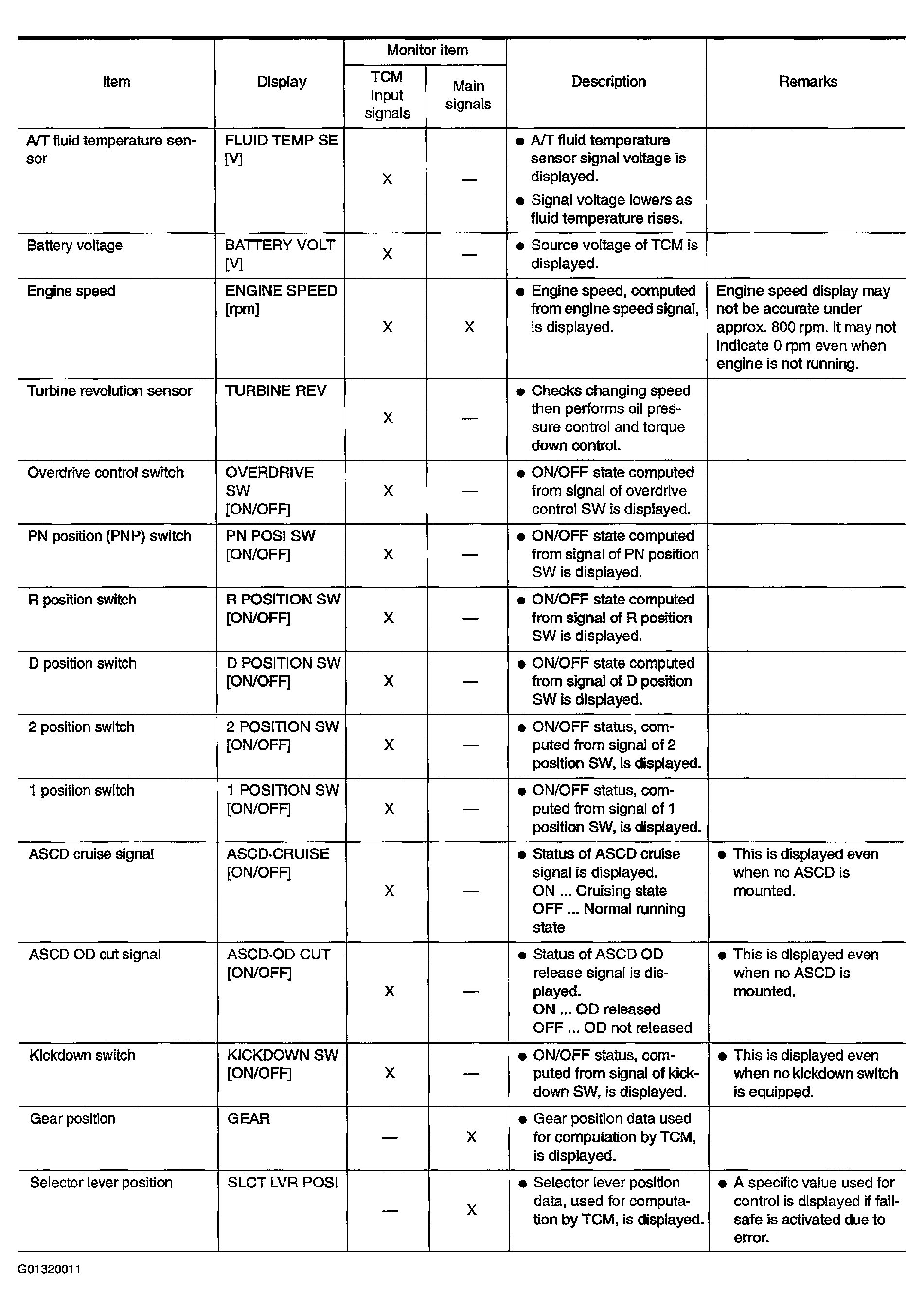

Fig 1: Data Monitor Mode Chart (Automatic Transaxle) (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

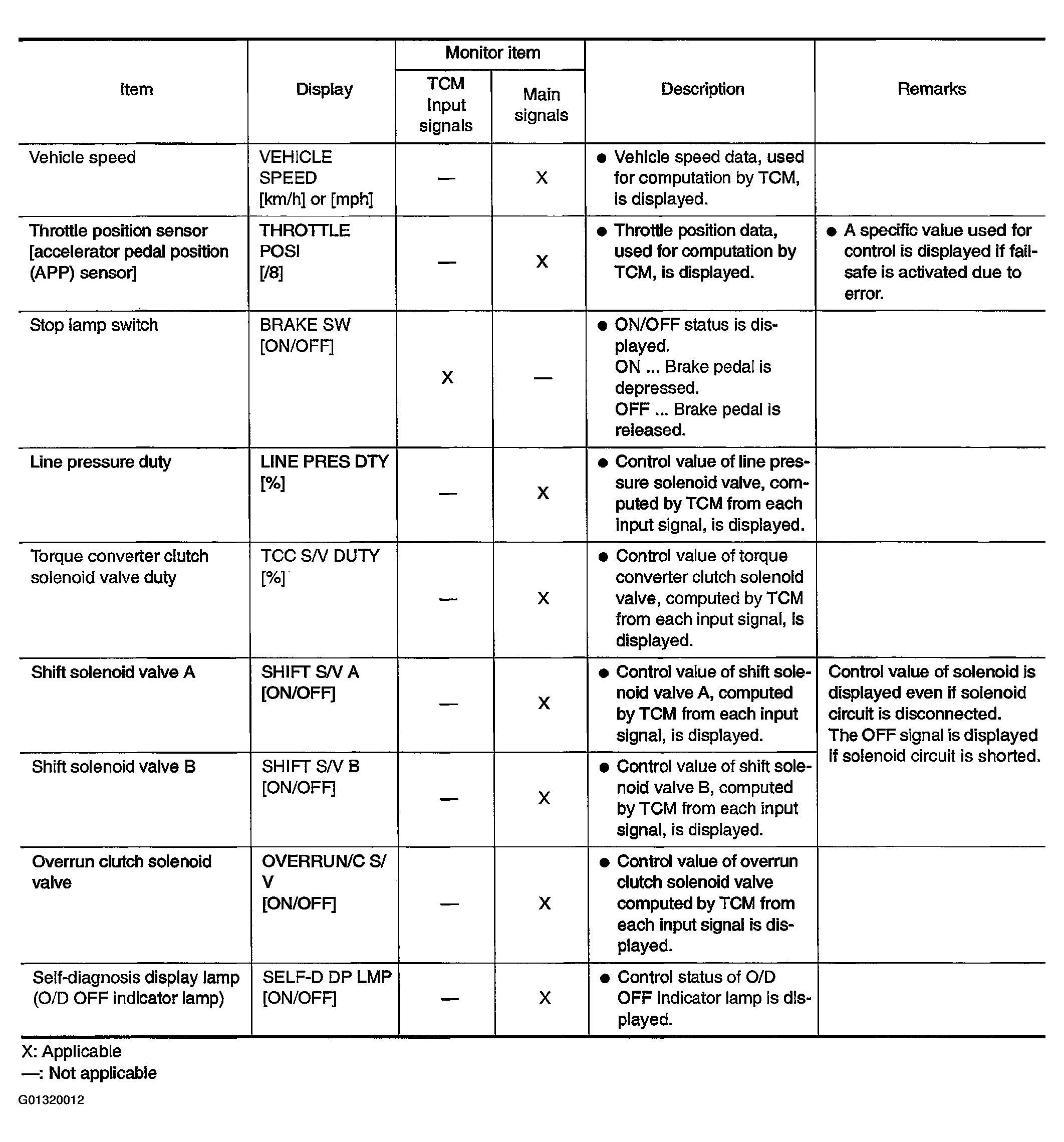

Fig 2: Data Monitor Mode Chart (Automatic Transaxle) (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Data Monitor Mode Chart (Automatic Transaxle) (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
