Revolution Sensor Replacement

  1. Remove under cover.
  2. Remove revolution sensor from A/T.
  3. Reinstall any part removed.
    • Always use new sealing parts.

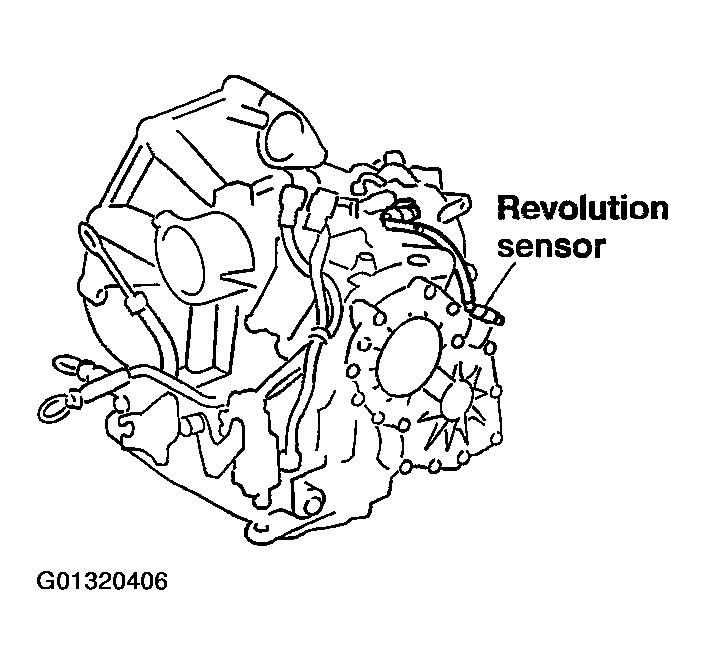

    Fig 1: Locating Revolution Sensor
    G01320406Courtesy of NISSAN MOTOR CO., U.S.A.
