Circuit Diagram

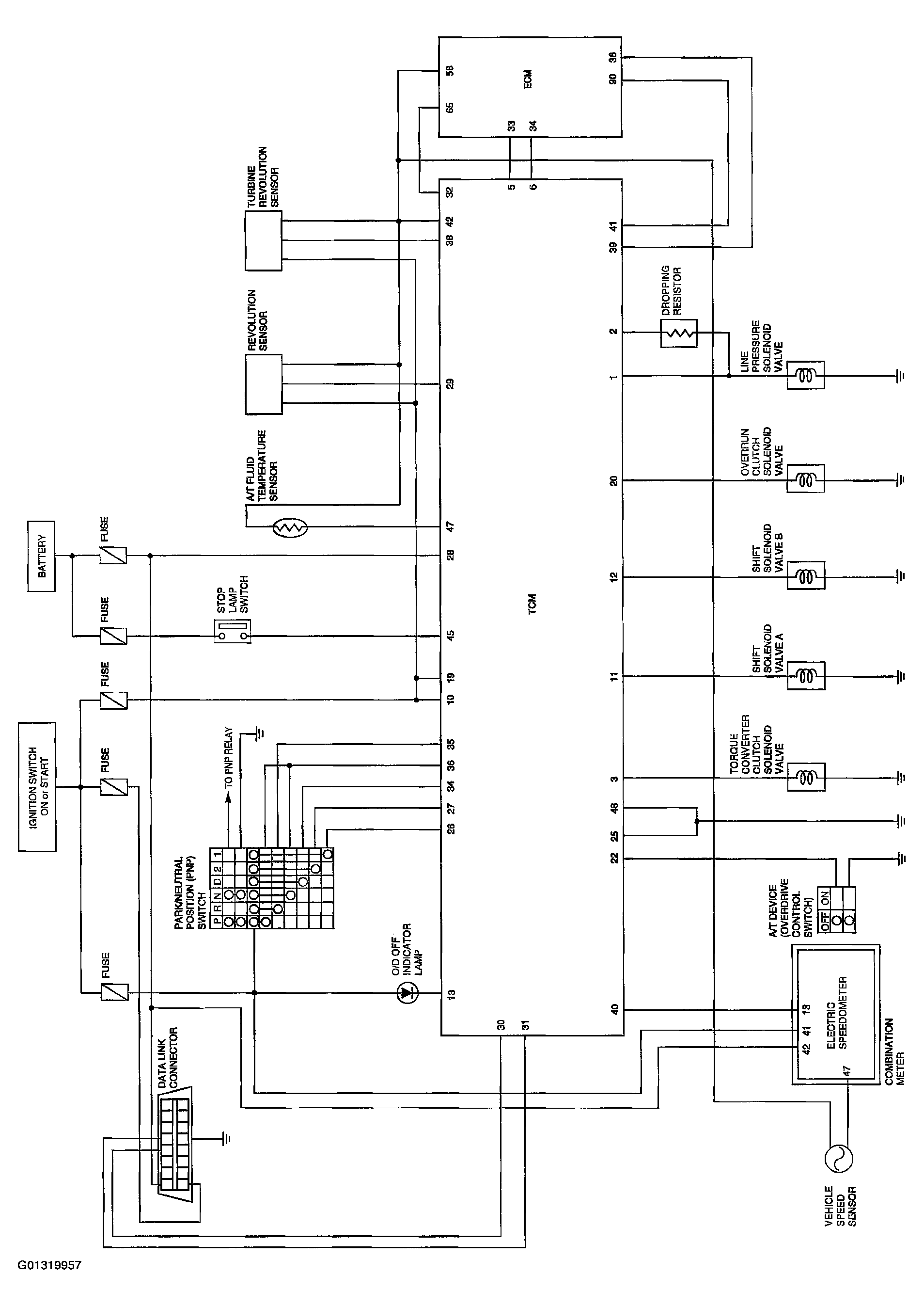

Fig 1: Automatic Transaxle System Circuit Diagram (RE4F04B)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
