Oil Channel

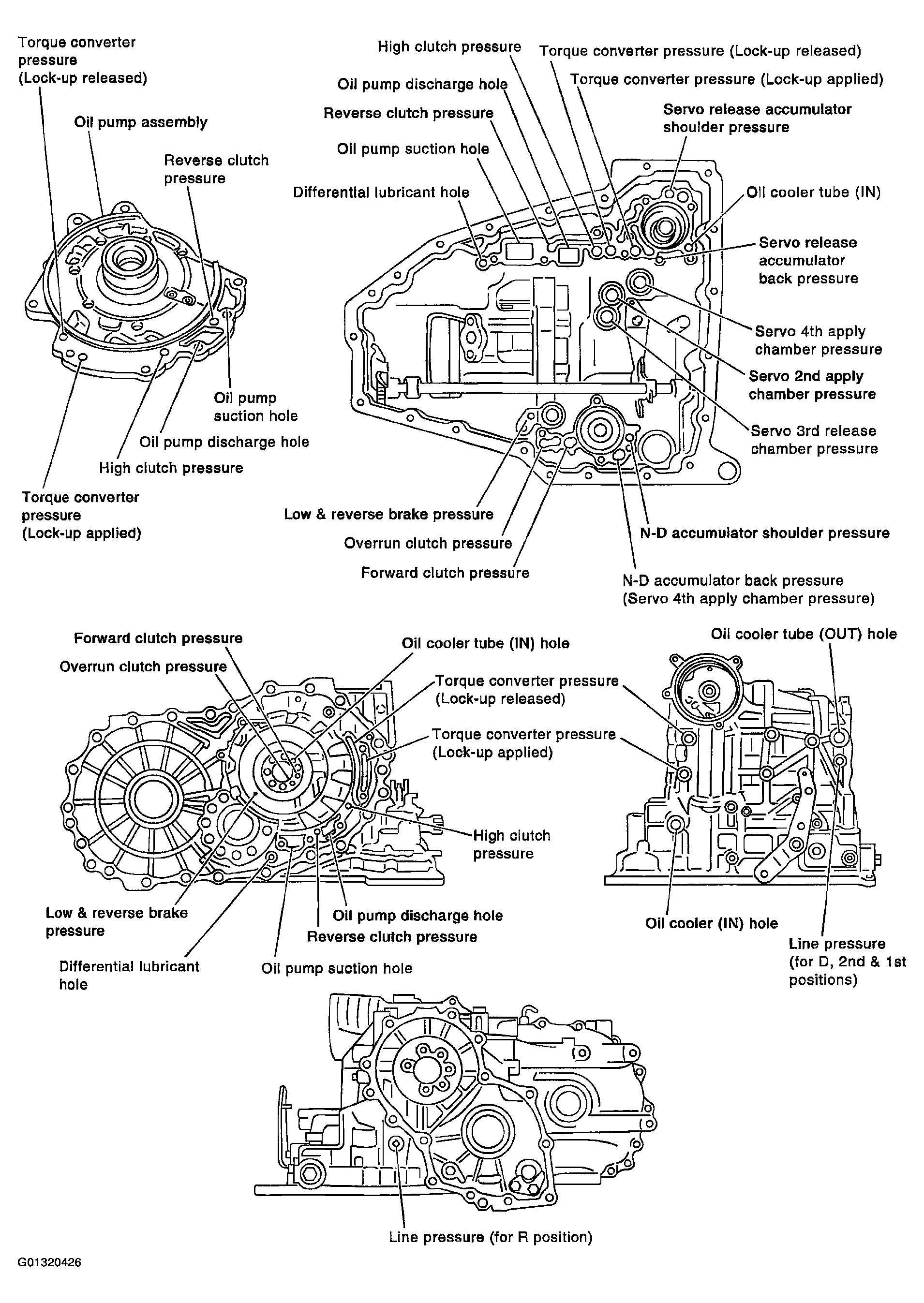

Fig 1: Locating Automatic Transaxle Components (Oil Channel)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
