Band Servo Piston Assembly: Assembly

  1. Install D-rings to servo piston retainer.
    • Apply ATF to D-rings.
    • Pay attention to position of each O-ring.

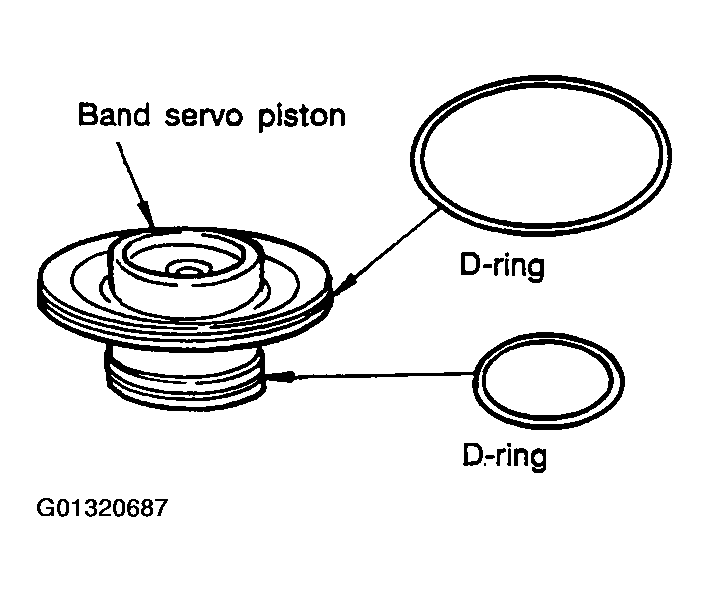

    Fig 1: Installing D-Rings To Band Servo Piston Retainer
    G01320687Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install band servo piston stem, band servo thrust washer, O/D servo return spring and spring retainer to band servo piston.

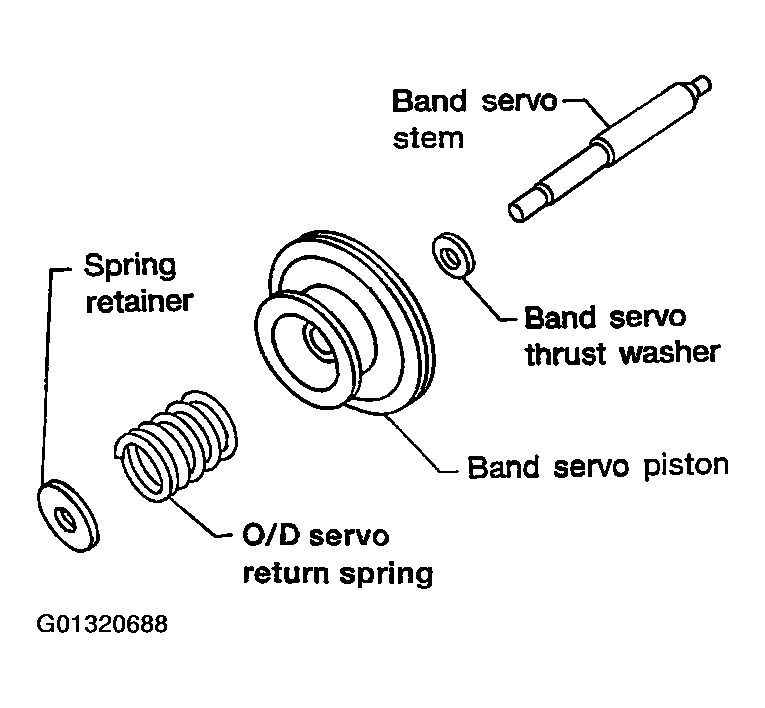

    Fig 2: Installing Band Servo Piston Stem, Thrust Washer, OD Servo Return Spring And Spring Retainer
    G01320688Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Place piston stem end on a wooden block. While pushing servo piston spring retainer down, install E-ring.

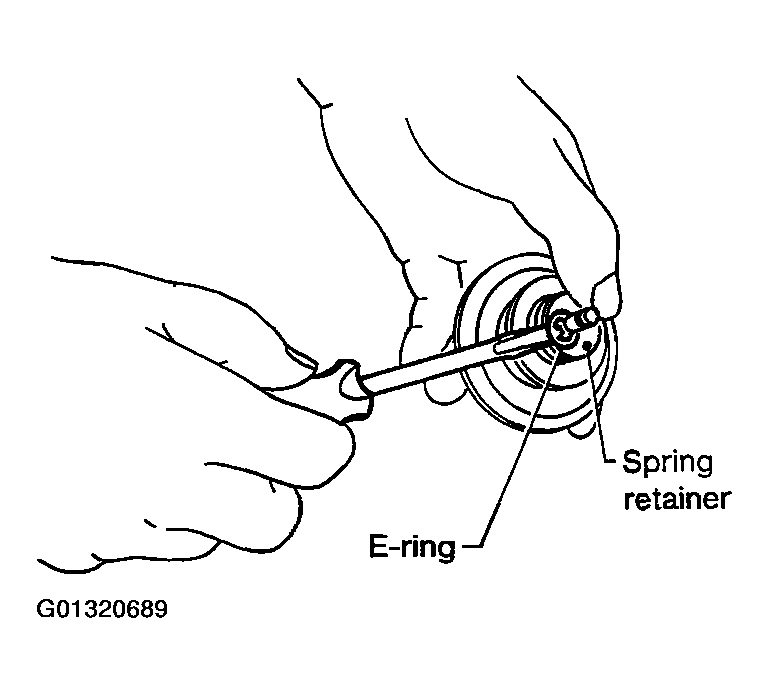

    Fig 3: Installing E-Ring
    G01320689Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install O-rings to servo piston retainer.
    • Apply ATF to O-rings.
    • Pay attention to position of each O-ring.

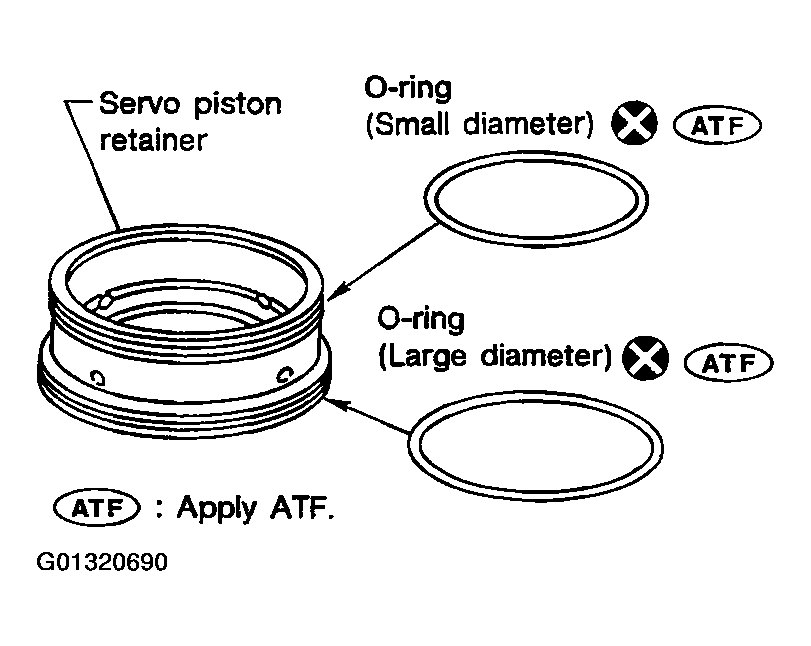

    Fig 4: Installing O-Rings To Servo Piston Retainer
    G01320690Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install band servo piston assembly to servo piston retainer by pushing it inward.

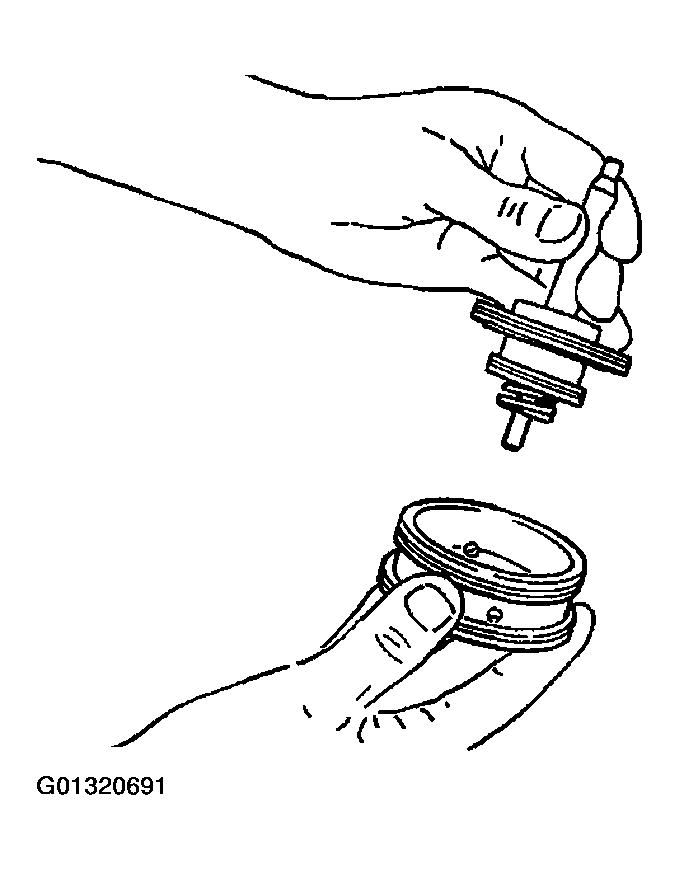

    Fig 5: Installing Band Servo Piston Assembly To Servo Piston Retainer
    G01320691Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install D-ring to O/D servo piston.
    • Apply ATF to D-ring.

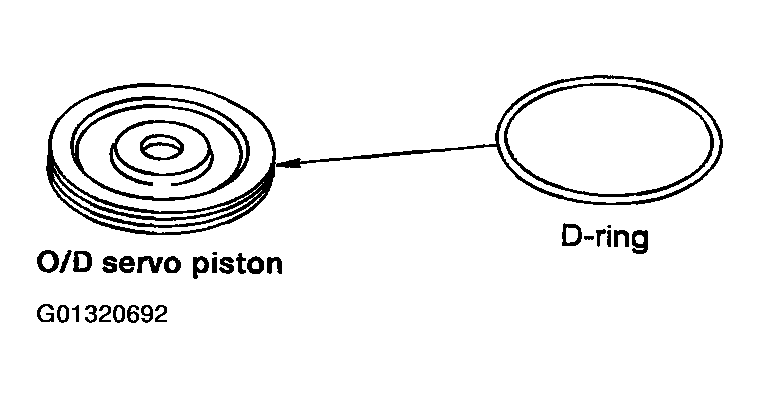

    Fig 6: Installing D-Ring To OD Servo Piston
    G01320692Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install O-rings to O/D servo piston retainer.
    • Apply ATF to O-rings.
    • Pay attention to position of each O-ring.

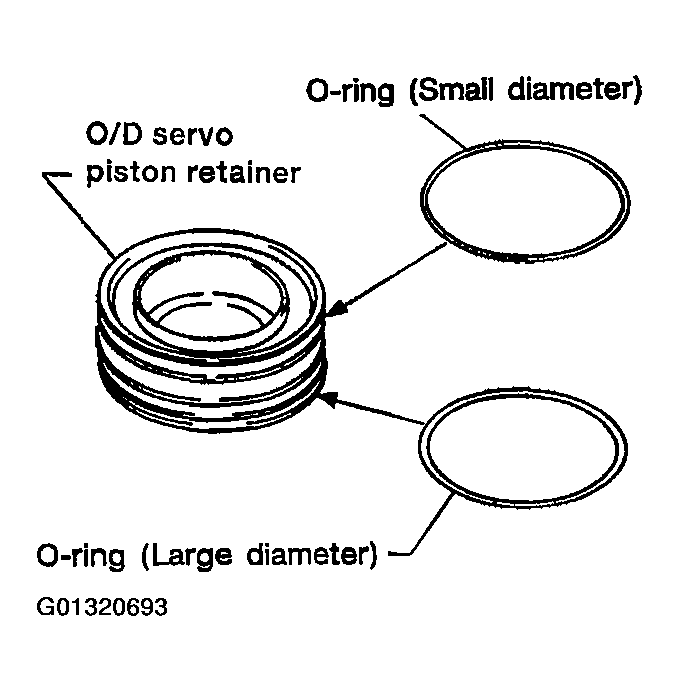

    Fig 7: Installing O-Rings To OD Servo Piston Retainer
    G01320693Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install O/D servo piston to O/D servo piston retainer.

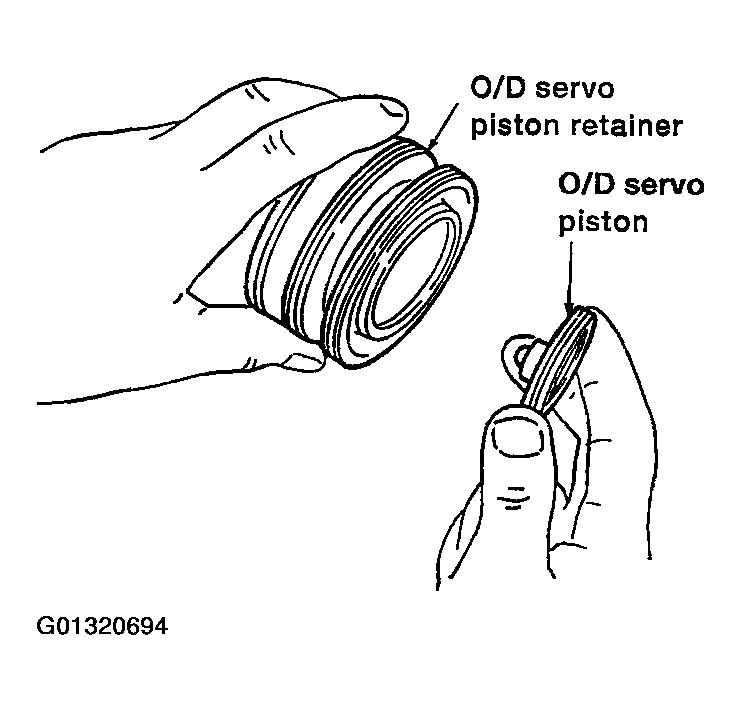

    Fig 8: Installing OD Servo Piston To OD Servo Piston Retainer
    G01320694Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install band servo piston assembly and 2nd servo return spring to transmission case.
    • Apply ATF to O-ring of band servo piston and transmission case.

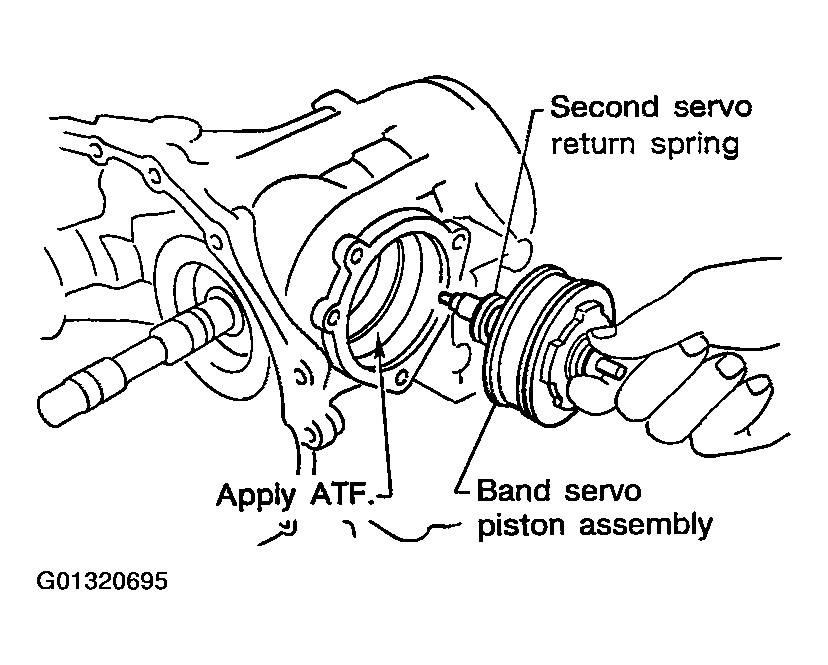

    Fig 9: Installing Band Servo Piston Assembly And 2nd Servo Return Spring To Transmission Case
    G01320695Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Install O/D servo piston assembly to transmission case.
    • Apply ATF to O-ring of band servo piston and transmission case.

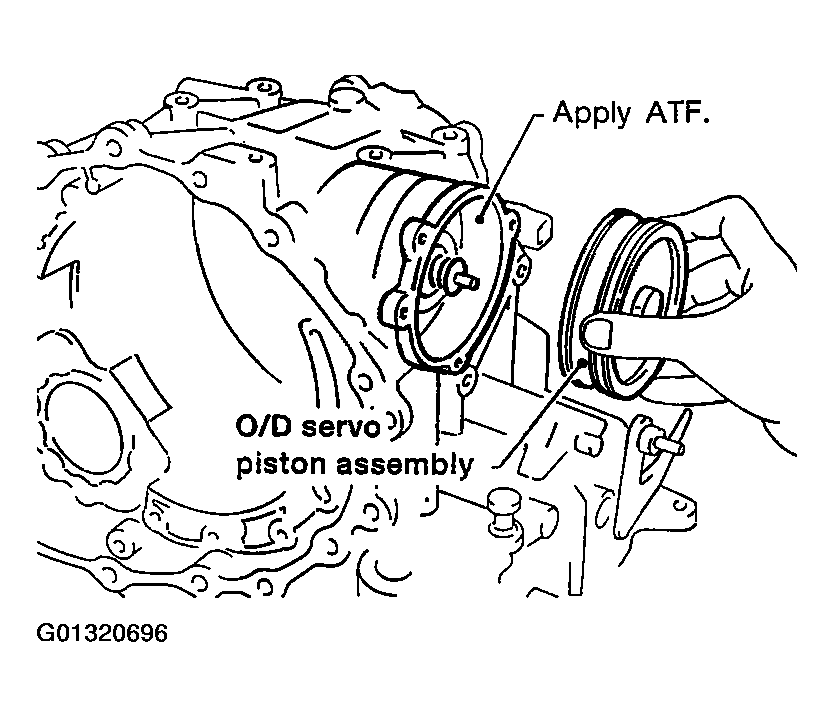

    Fig 10: Installing OD Servo Piston Assembly To Transmission Case
    G01320696Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install O/D servo piston retainer to transmission case.

    Refer to "ASSEMBLY ".

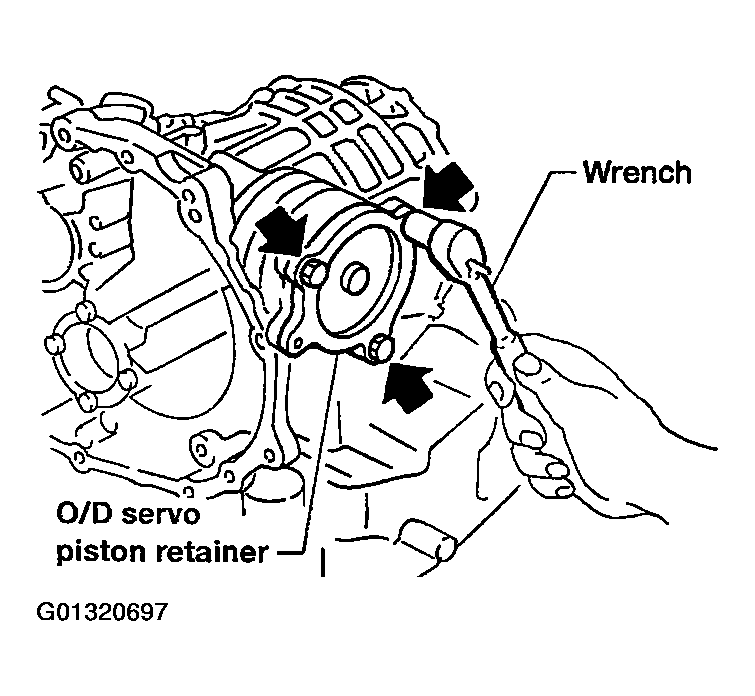

    Fig 11: Installing O/D Servo Piston Retainer To Transmission Case
    G01320697Courtesy of NISSAN MOTOR CO., U.S.A.
