Retainer Plate (Lower Body)

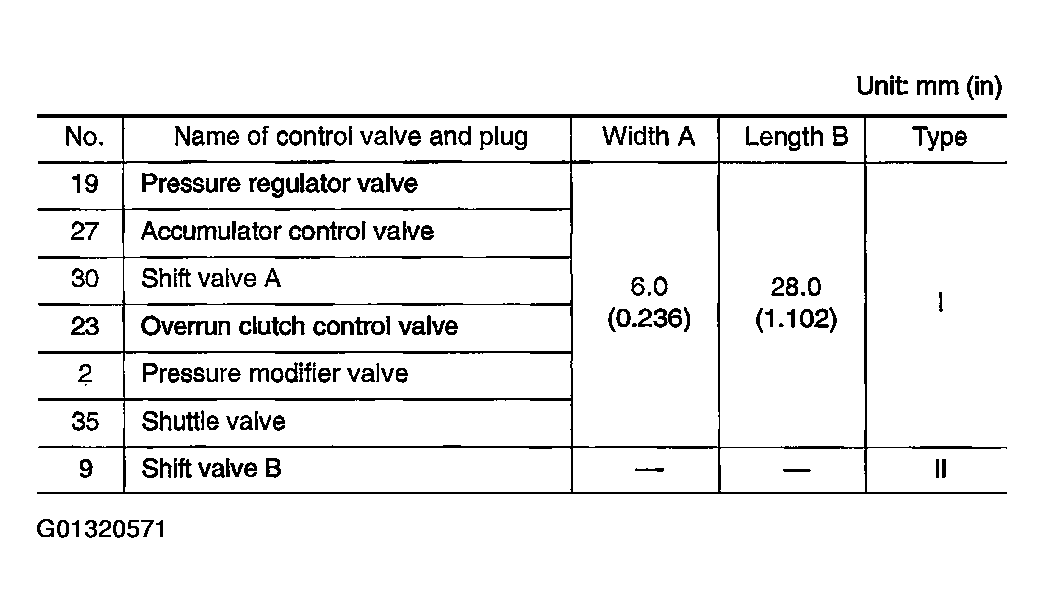

Fig 1: Lower Body Retainer Plate Control Valve Specifications
G01320571Courtesy of NISSAN MOTOR CO., U.S.A.

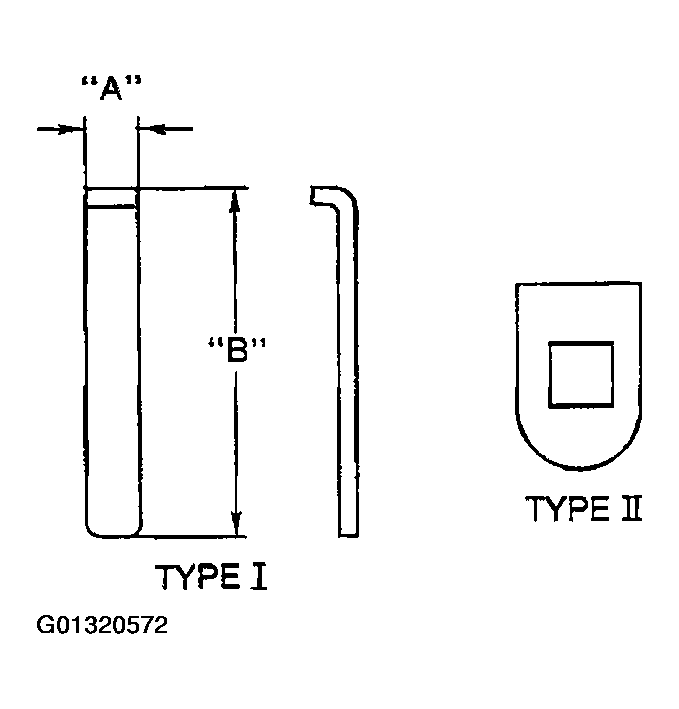

Fig 2: Identifying Lower Body Retainer Plate Control Valve Width And Length
G01320572Courtesy of NISSAN MOTOR CO., U.S.A.
