High Clutch: Assembly

  1. Install D-rings on piston.
    • Apply ATF to both parts.

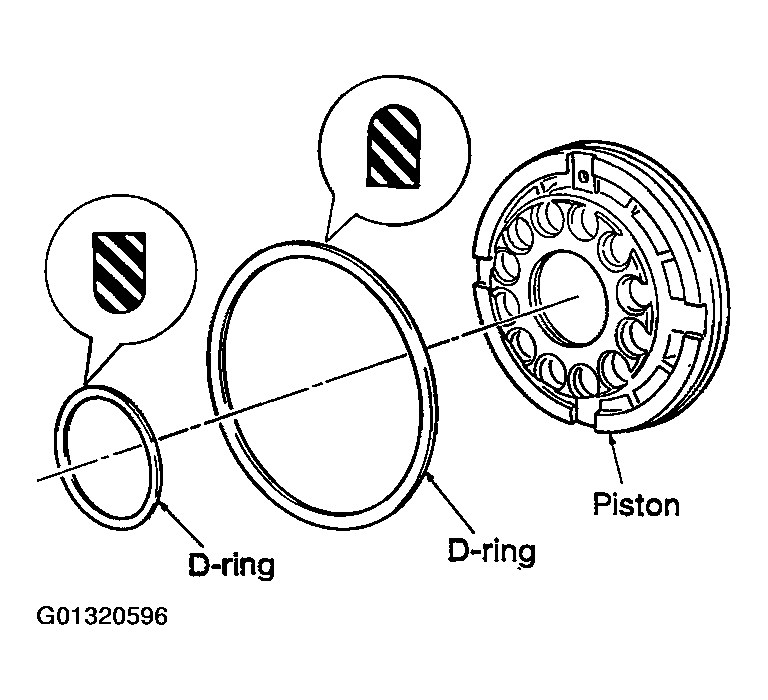

    Fig 1: Installing D-Rings On Piston
    G01320596Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install piston assembly by turning it slowly.
    • Apply ATF to inner surface of drum.
    Fig 2: Installing Piston Assembly
    G01320597Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install return springs and spring retainer on piston.

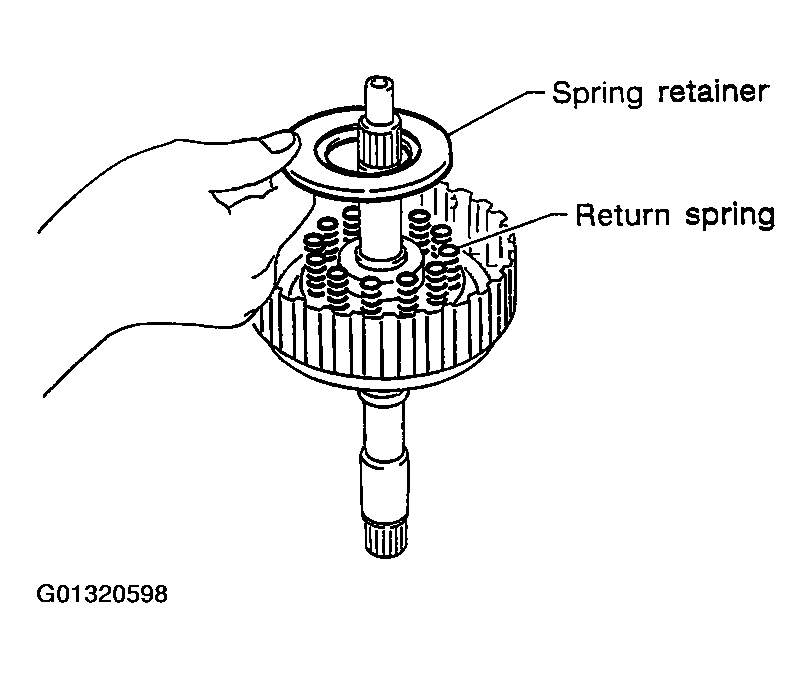

    Fig 3: Installing Return Springs And Spring Retainer On Piston
    G01320598Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Set Tool on spring retainer and install snap ring while compressing return springs.
    • Set Tool directly over return springs.

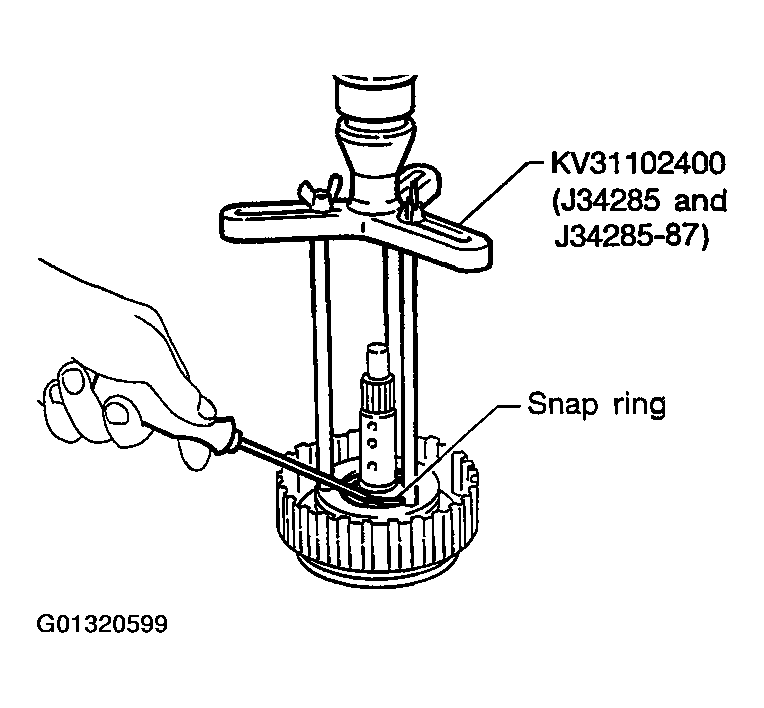

      Fig 4: Installing Snap Ring By Compressing Return Springs
      G01320599Courtesy of NISSAN MOTOR CO., U.S.A.
    • Do not align snap ring gap with spring retainer stopper.

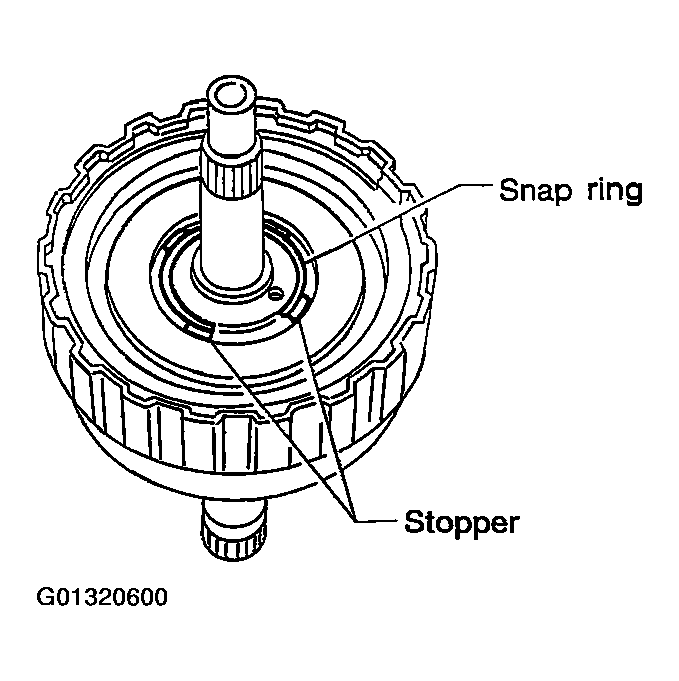

    Fig 5: Locating Snap Ring And Spring Retainer Stopper
    G01320600Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install drive plates, driven plates and retaining plate.
    • Take care with the order and direction of plates.

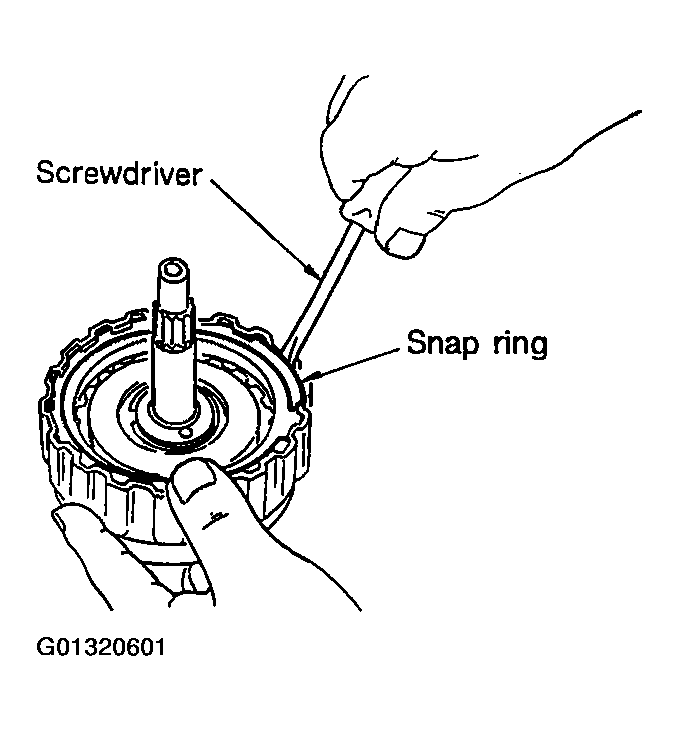

    Fig 6: Installing Snap Ring
    G01320601Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install snap ring.
  7. Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate.

    Specified clearance

    Standard: 1.8 - 2.2 mm (0.071 - 0.087 in)

    Allowable limit: 2.8 mm (0.110 in)

    Retaining plate: Refer to " HIGH CLUTCH  ".

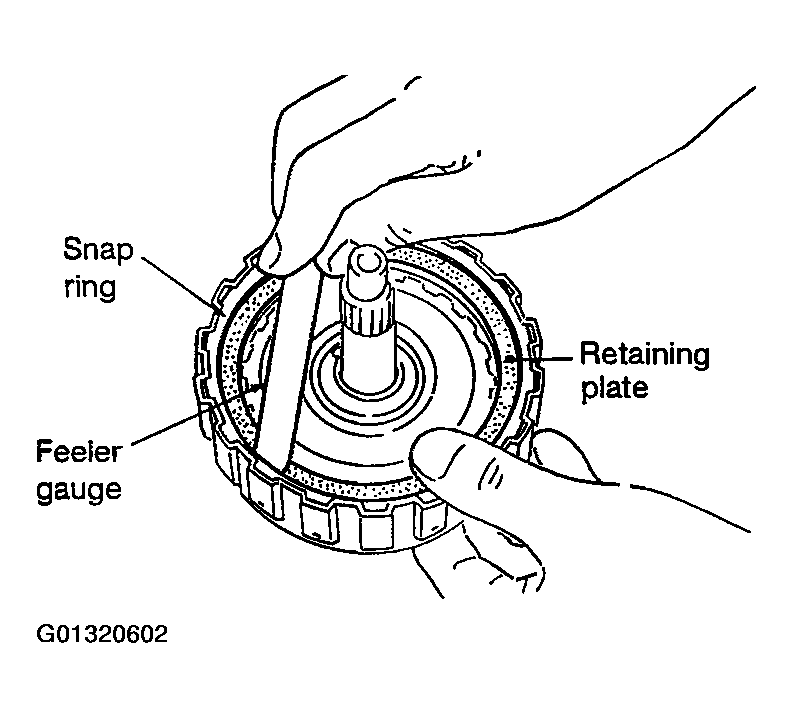

    Fig 7: Measuring Clearance Between Retaining Plate And Snap Ring
    G01320602Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Check operation of high clutch.

    Refer to "DISASSEMBLY ".

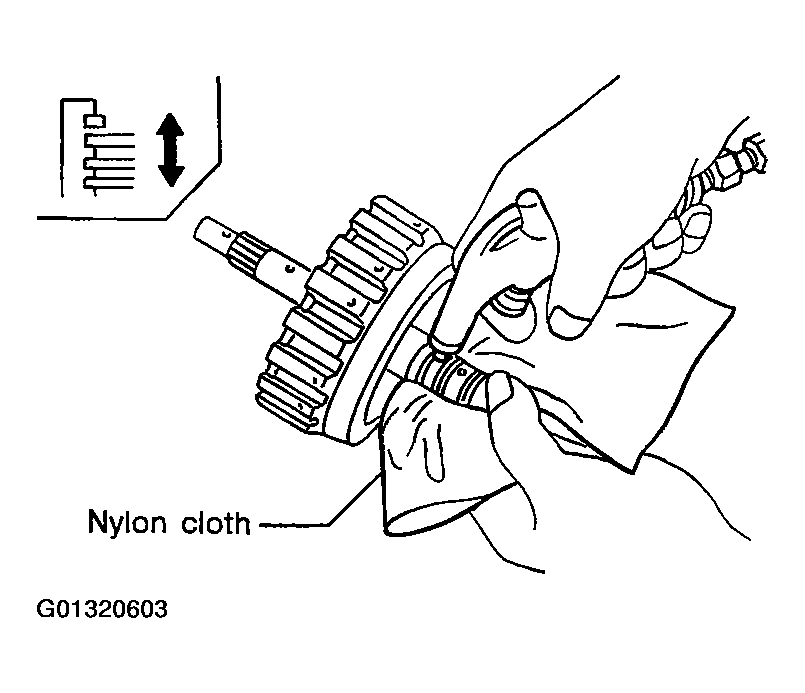

    Fig 8: Applying Compressed Air To Oil Hole
    G01320603Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install seal rings to input shaft.
    • Apply petroleum jelly to seal rings.
    • Always replace when removed.

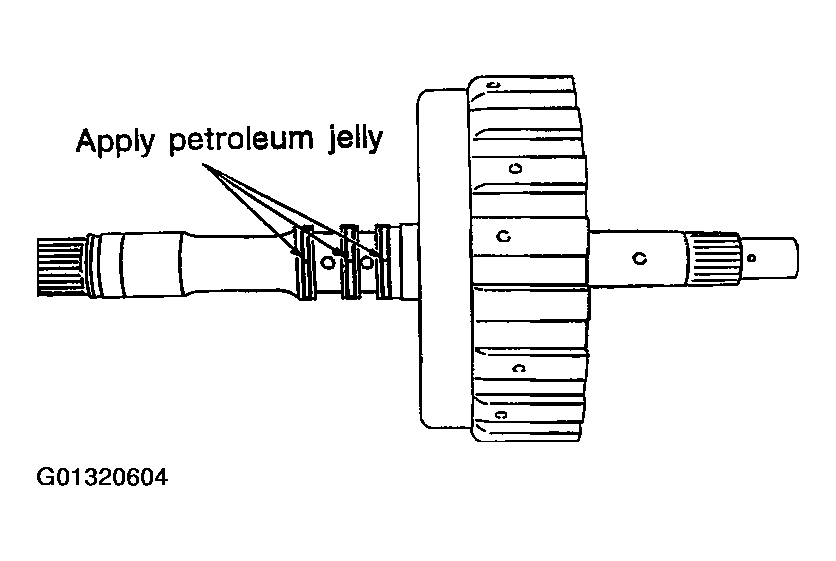

      Fig 9: Installing Seal Rings To Input Shaft
      G01320604Courtesy of NISSAN MOTOR CO., U.S.A.
    • Roll paper around seal rings to prevent seal rings from spreading.

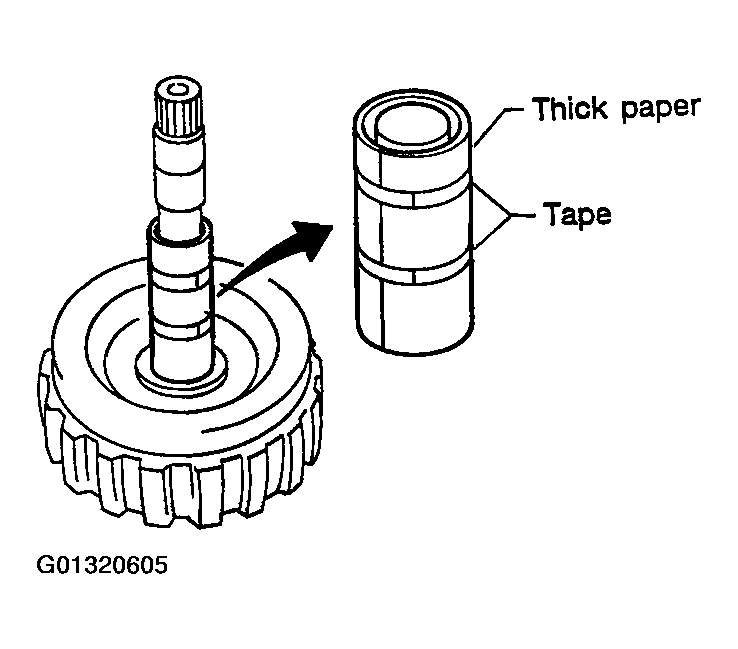

    Fig 10: Identifying Paper Roll Support For Seal Bearing
    G01320605Courtesy of NISSAN MOTOR CO., U.S.A.
