Manual Shaft: Installation

  1. Install manual shaft oil seal.
    • Apply ATF to outer surface of oil seal.

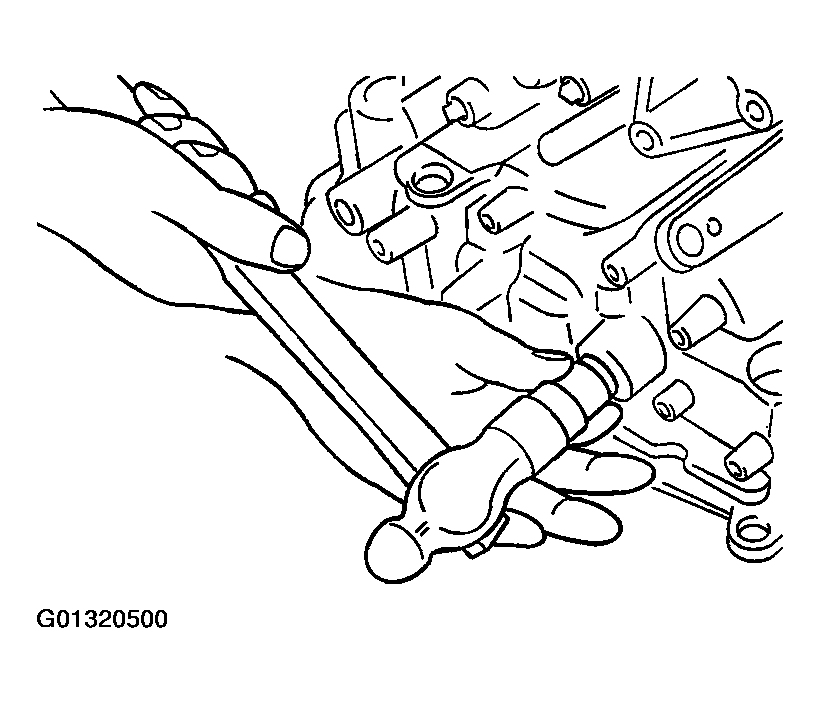

    Fig 1: Installing Manual Shaft Oil Seal
    G01320500Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install manual shaft and manual plate.

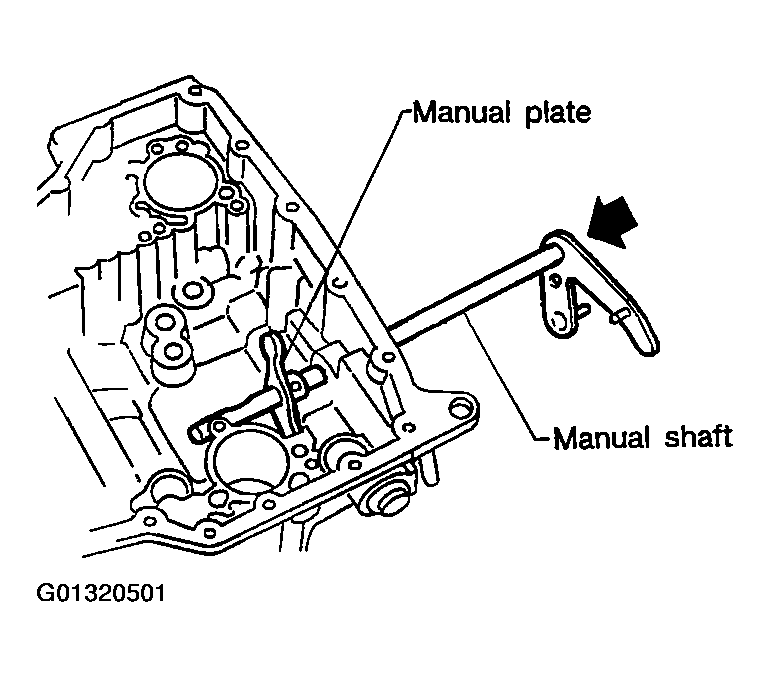

    Fig 2: Installing Manual Shaft And Manual Plate
    G01320501Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Align groove of manual shaft and hole of transmission case.
  4. Install manual shaft retaining pin up to bottom of hole.

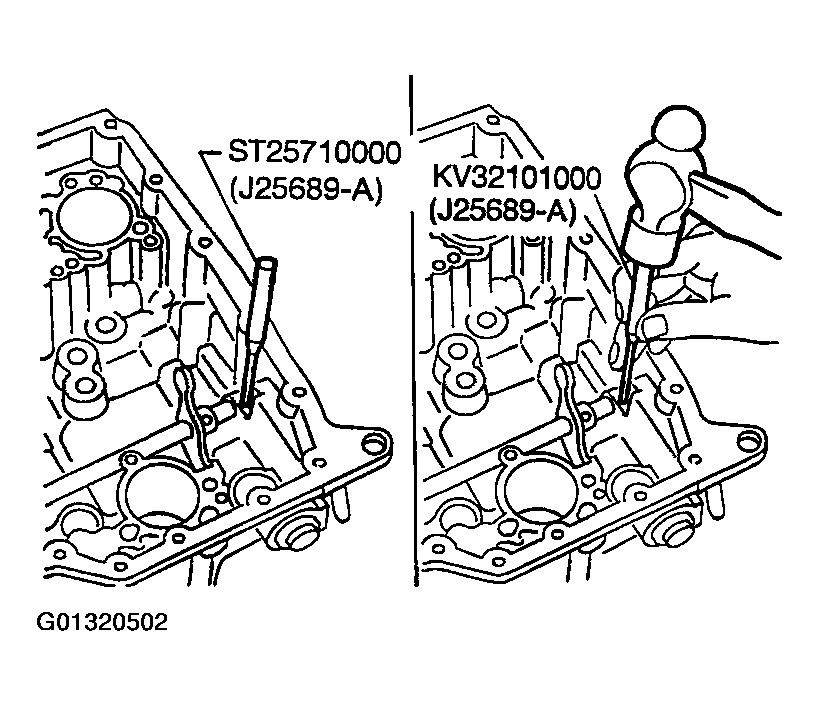

    Fig 3: Installing Manual Shaft Retaining Pin
    G01320502Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install parking rod to parking rod plate.
  6. Set parking rod assembly onto manual shaft and drive retaining pin.
    • Both ends of pin should protrude.

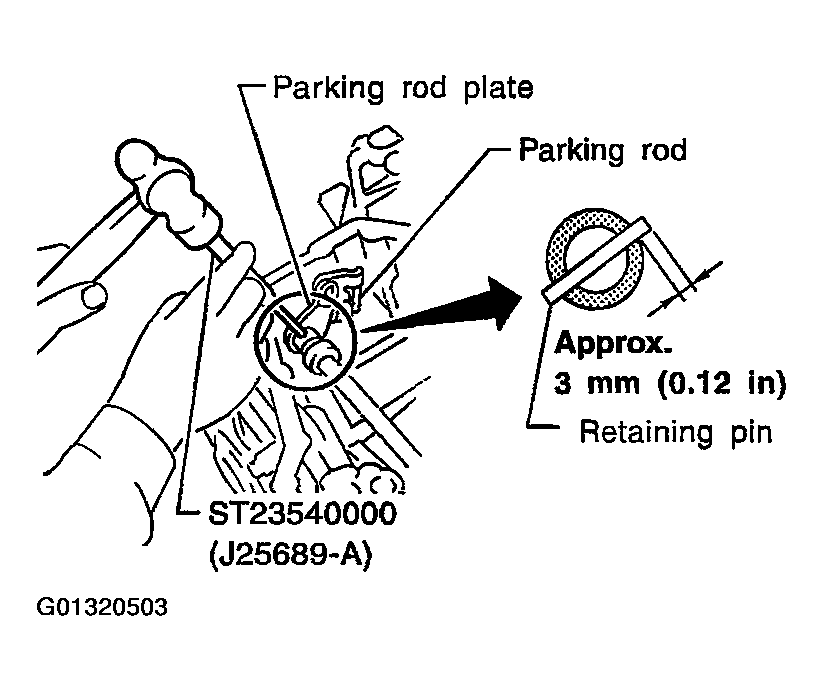

    Fig 4: Installing Parking Rod To Parking Rod Plate
    G01320503Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Drive manual plate retaining pin.
    • Both ends of pin should protrude.

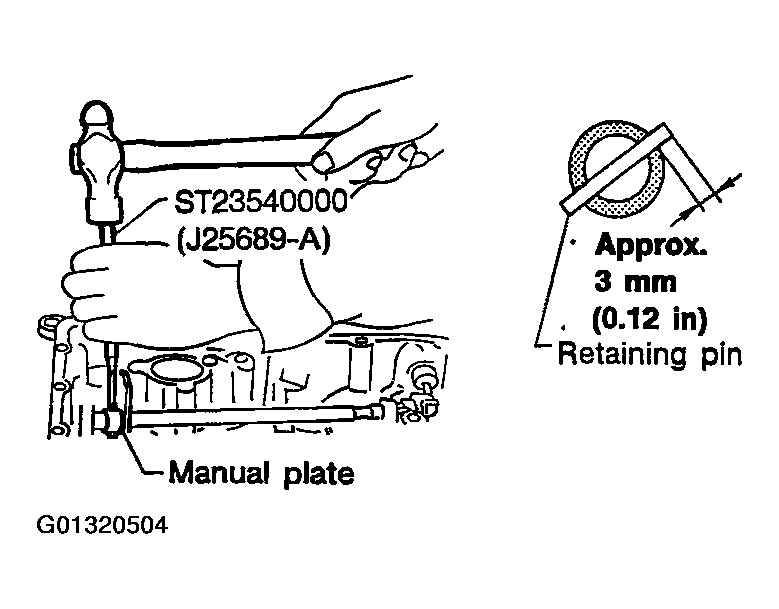

    Fig 5: Inserting Manual Plate Retaining Pin
    G01320504Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install detent spring. Tighten detent spring bolts to the specified torque. Refer to "COMPONENTS ".

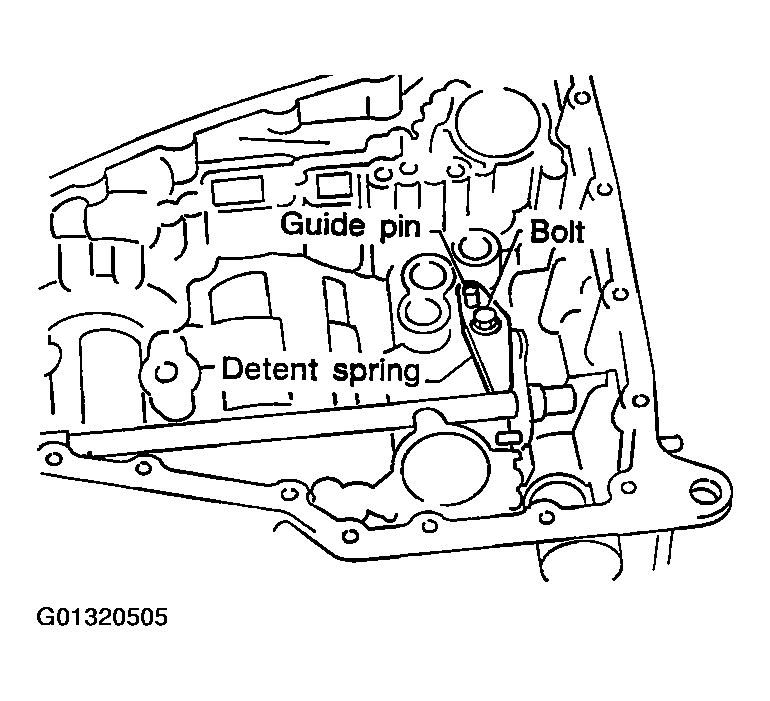

    Fig 6: Installing Detent Spring
    G01320505Courtesy of NISSAN MOTOR CO., U.S.A.
