Oil Cooler Relief Valve Spring: Notes

Check springs for damage or deformation.
Measure free length and outer diameter.
Inspection standard: Refer to " CONTROL VALVE AND PLUG RETURN SPRINGS ".

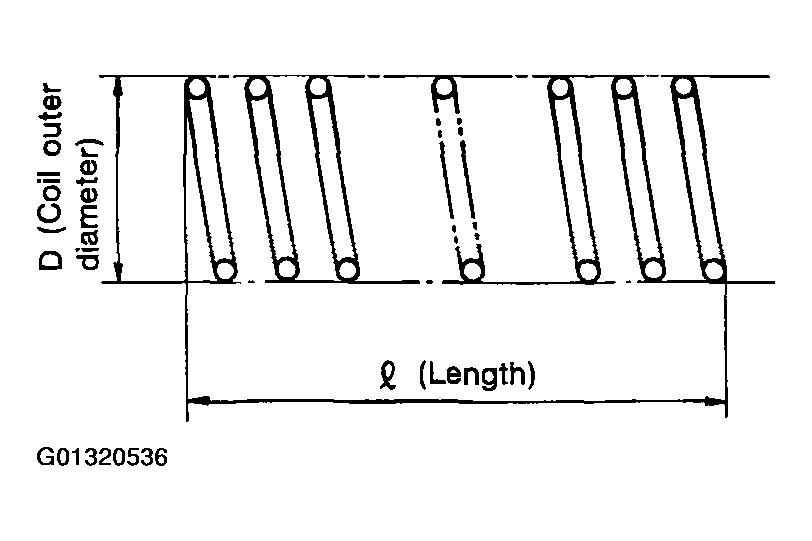

Fig 1: Measuring Oil Cooler Relief Valve Spring Free Length And Outer Diameter
Courtesy of NISSAN MOTOR CO., U.S.A.
