Shift Control: Inspection: Notes

Check the contact surfaces and sliding areas for wear, damage, and bending as shown. Replace any parts as necessary.

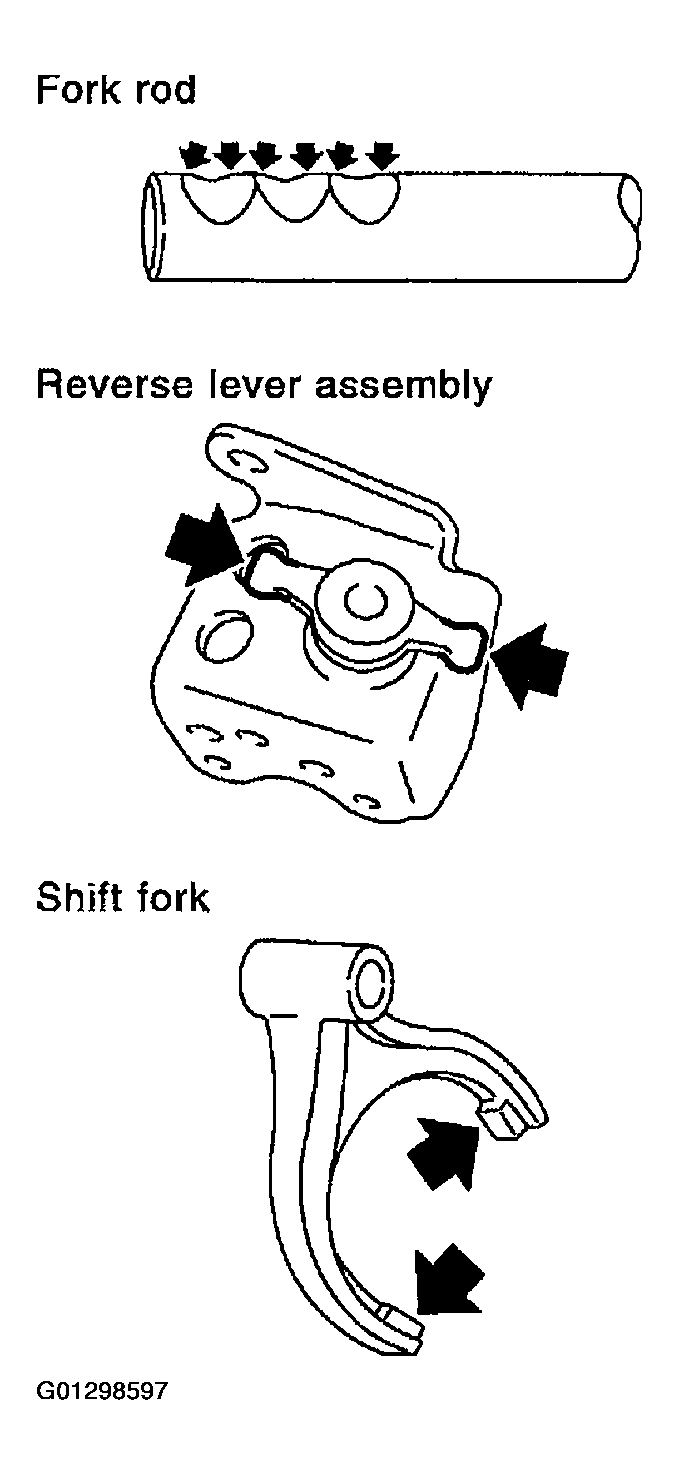

Fig 1: Checking Fork Rod, Shift Fork And Reverse Lever Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
