DTC Confirmation Procedure

CAUTION: Always drive at safe speed.

NOTE: If DTC P0011 is displayed with DTC P1111, first perform trouble diagnosis for DTC P1111. See DTC P1111: INTAKE VALE TIMING (IVT) CONTROL SOLENOID VALVE CIRCUIT .

NOTE: If DTC confirmation procedure has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.

For DTC confirmation procedure, see Fig 1 .

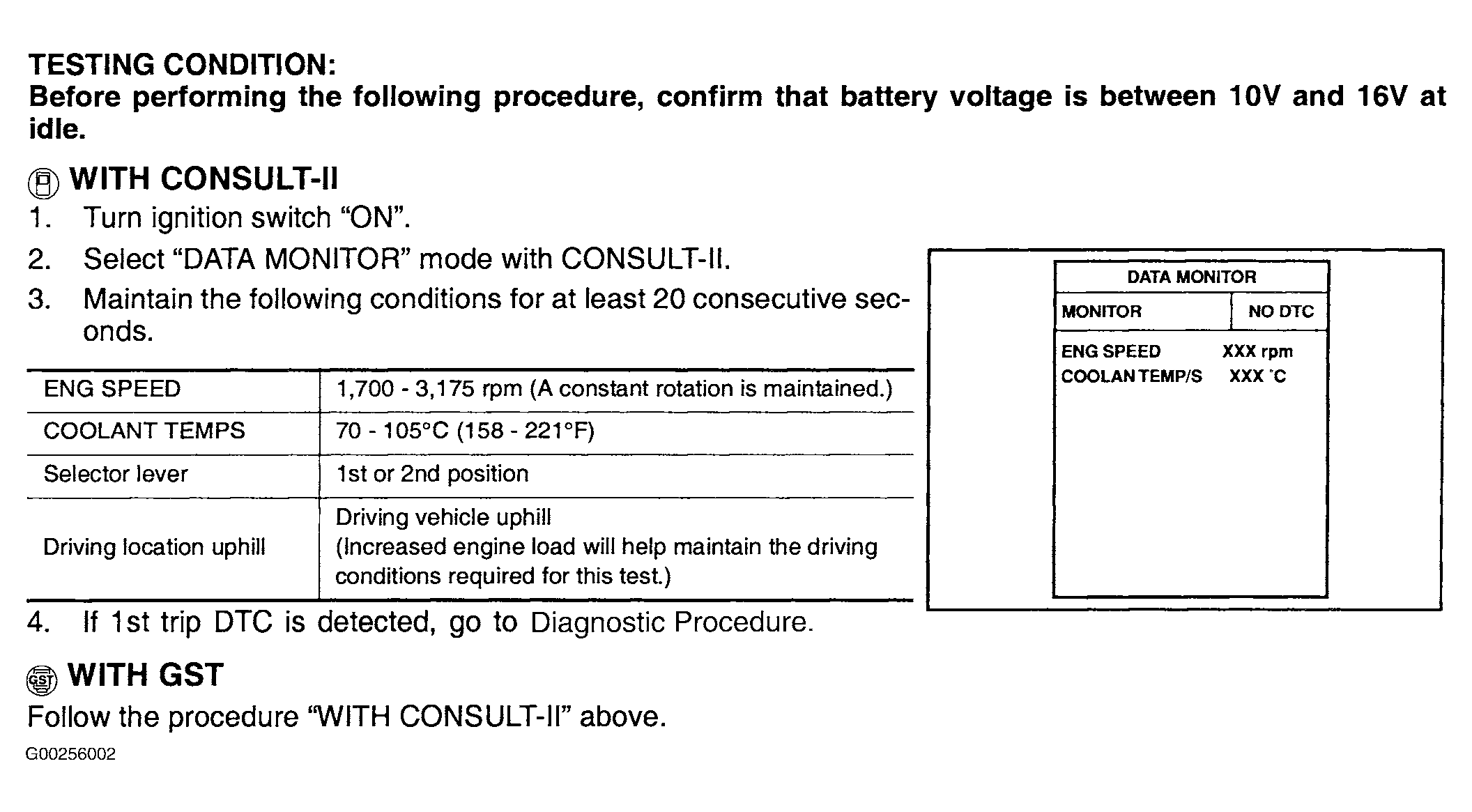

Fig 1: DTC P0011 Confirmation Procedure

Courtesy of NISSAN MOTOR CO., U.S.A.
