DTC P0452: EVAP Control System Pressure Sensor Low Input
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure
For diagnostic procedure, see
Fig 1
-
Fig 3
.

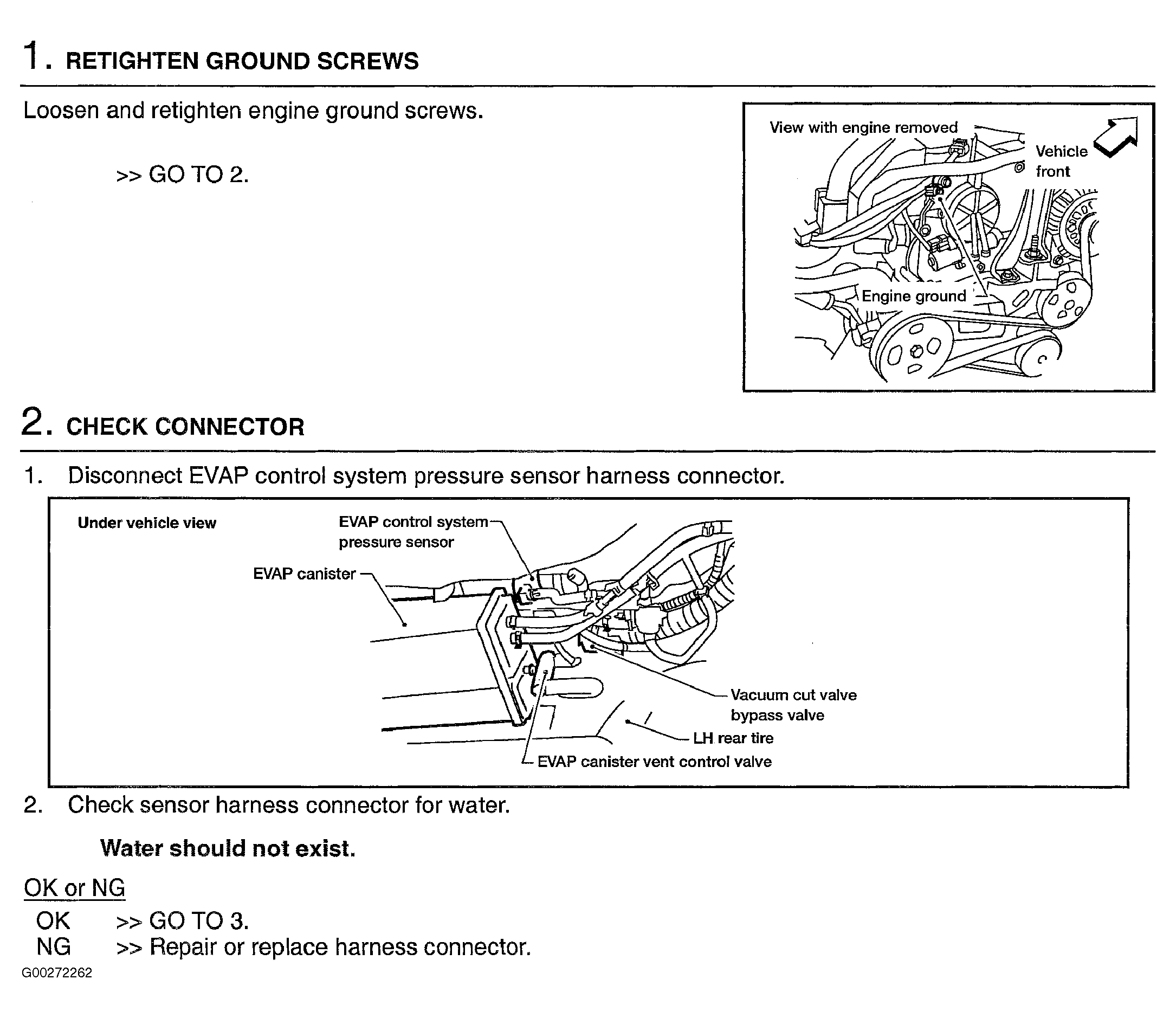

Fig 1: DTC P0452 Diagnostic Procedure (Steps 1 & 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

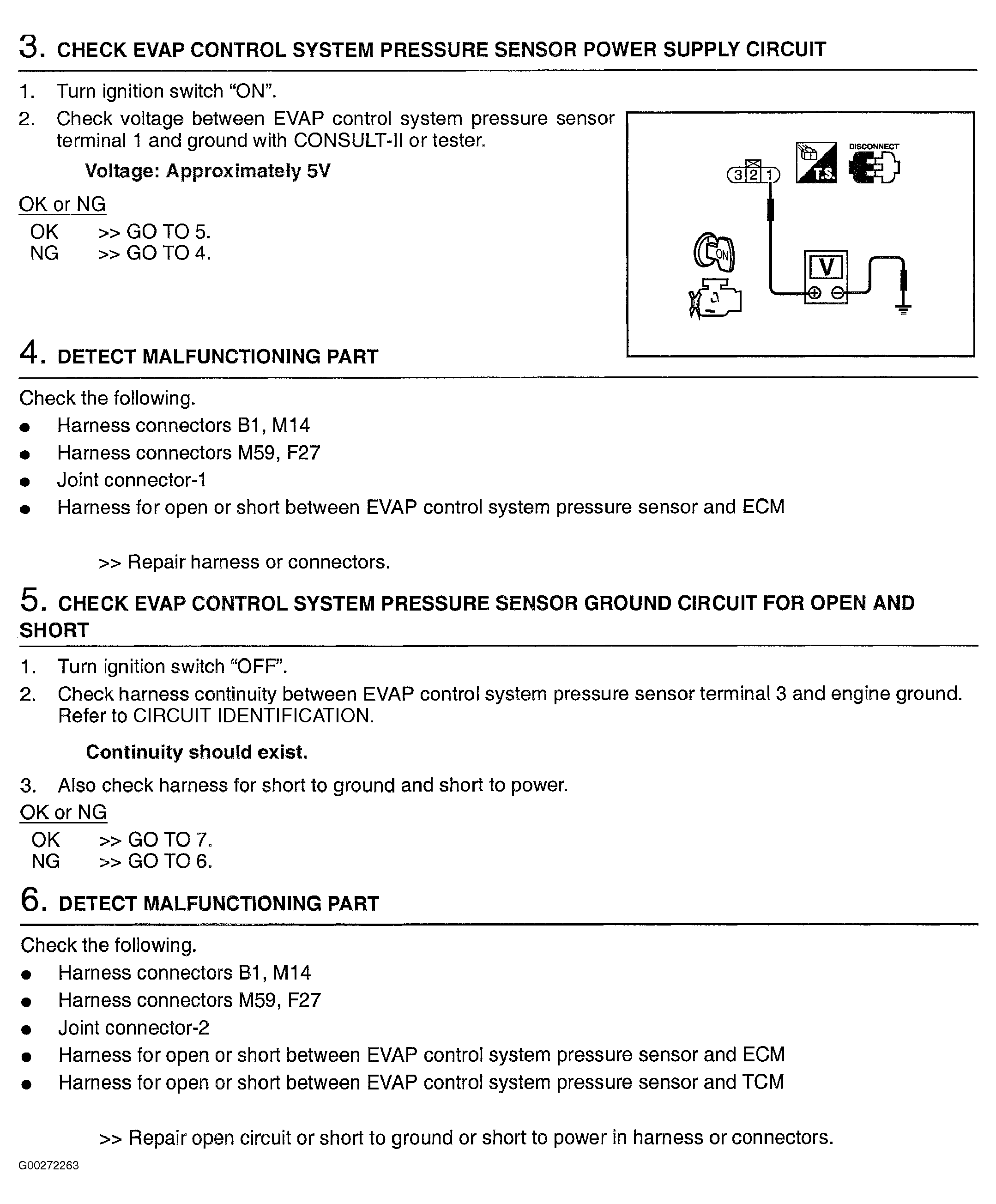

Fig 2: DTC P0452 Diagnostic Procedure (Steps 3-6)
Courtesy of NISSAN MOTOR CO., U.S.A.

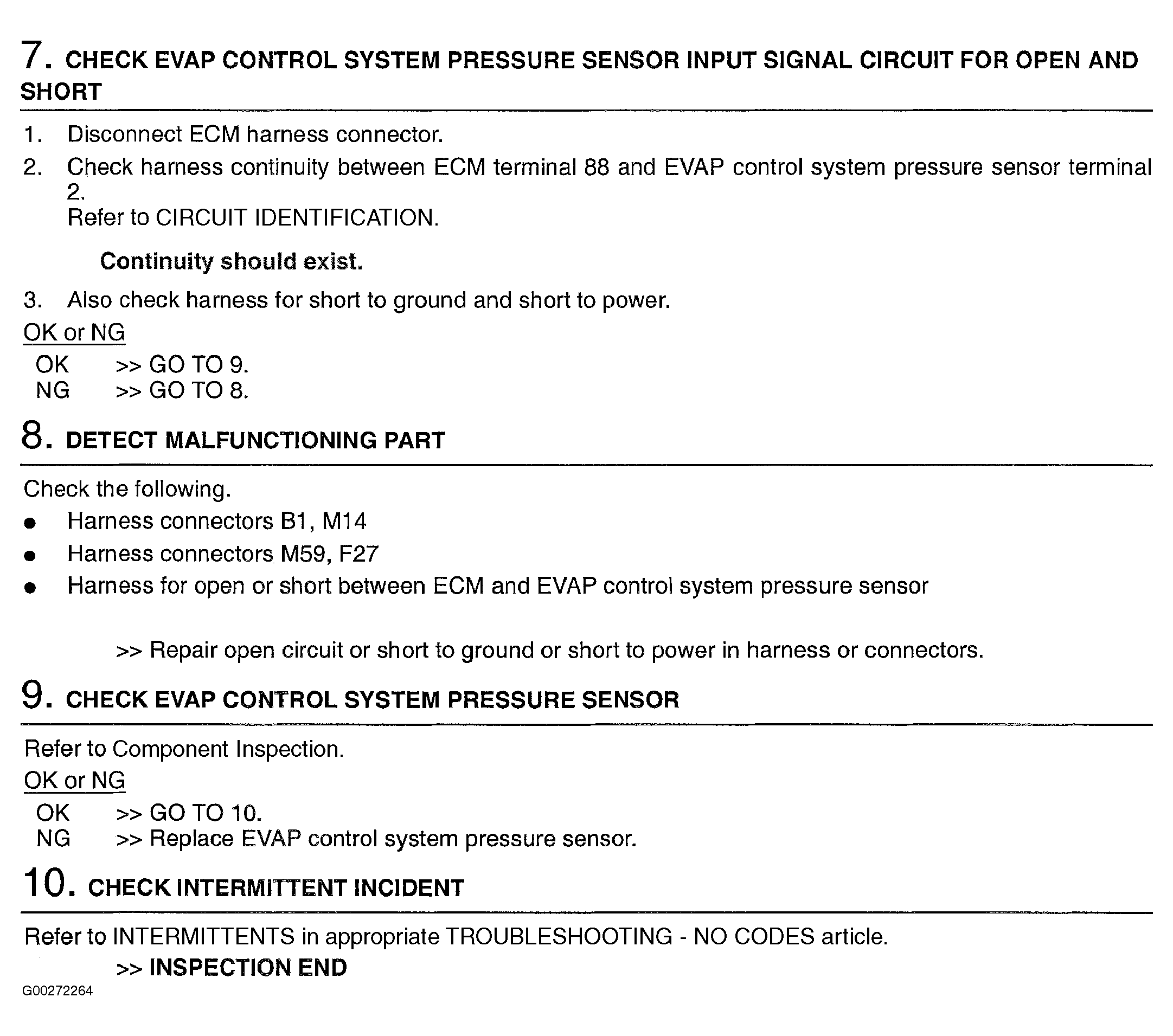

Fig 3: DTC P0452 Diagnostic Procedure (Steps 7-10)
Courtesy of NISSAN MOTOR CO., U.S.A.
