Front Door Key Cylinder Switch LH Check/With Rear Power Vent Windows

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL

With CONSULT-II

Check door key cylinder switch ("KEY CYL LK SW") in "DATA MONITOR" mode for "POWER DOOR ROCK SYSTEM" with CONSULT-II. Refer to "DATA MONITOR ".
"KEY CYL LK-SW" should be "ON" when key inserted in door key cylinder is turned to lock.

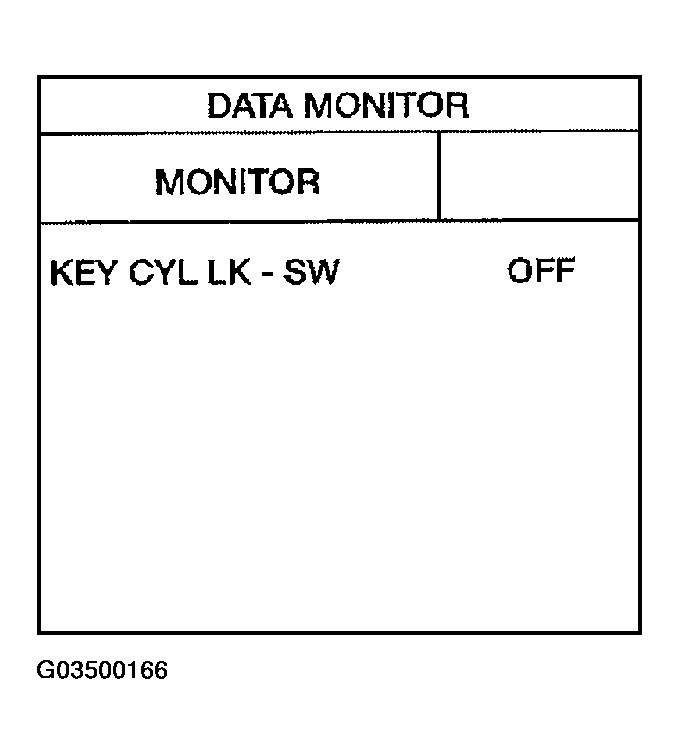

Fig 1: Display CONSULT II (Data Monitor) (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Check door key cylinder switch ("KEY CYL UN-SW") in "DATA MONITOR" mode for "POWER DOOR LOCK SYSTEM" with CONSULT-II. Refer to "DATA MONITOR ".

"KEY CYL UN-SW" should be "ON" when key inserted in door key cylinder was turned to unlock.

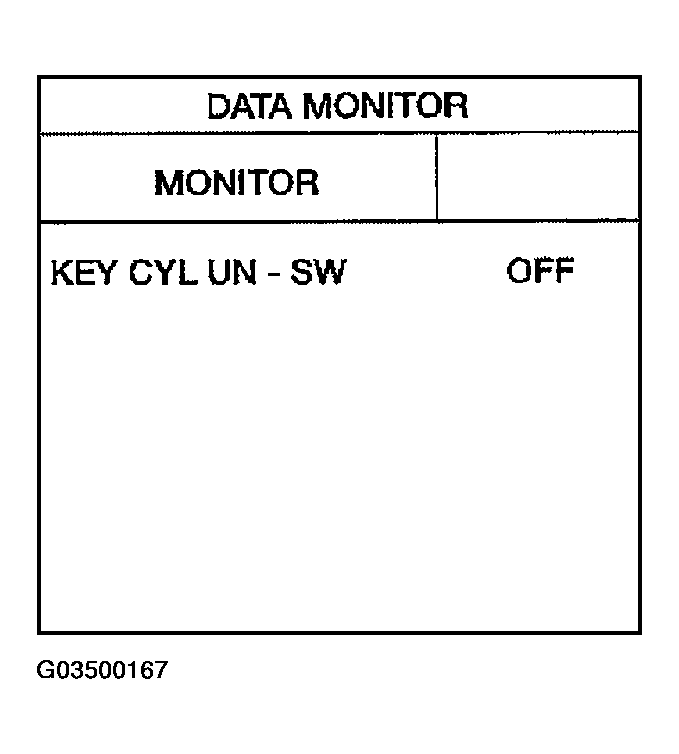

Fig 2: Display CONSULT II (Data Monitor) (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between main power window and door lock/unlock switch connector and ground.

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH CONNECTORS VOLTAGE

Connector	Terminals (Wire color)		Key position	Voltage (V) (Approx.)
	(+)	(-)
D7	6(R)	Ground	Neutral / Lock	5
			Lock	0
	4(L)		Neutral / Unlock	5
			Unlock	0

OK or NG

OK: Further inspection is necessary. Refer to symptom chart.
NG: GO TO 2.

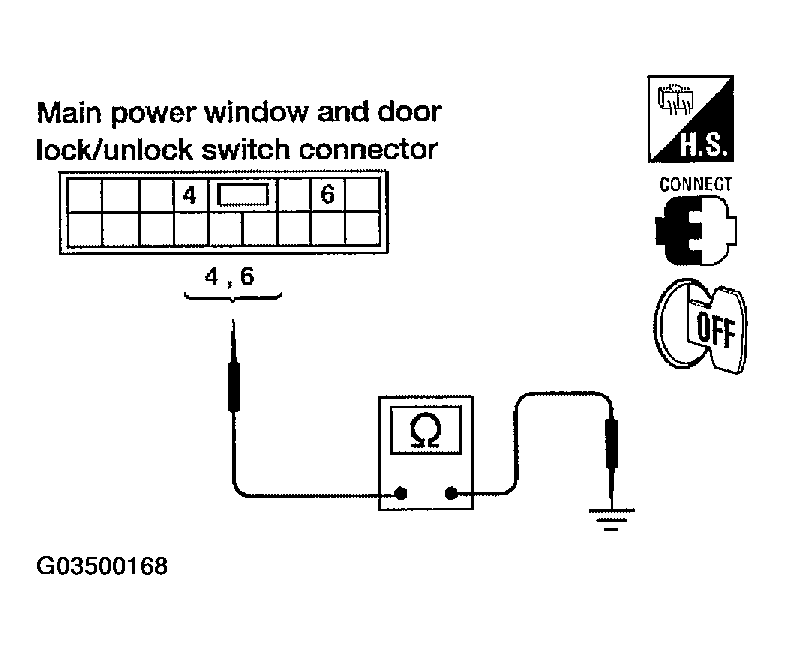

Fig 3: Checking Voltage Between Main Power Window And Door Lock/Unlock Switch Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK FRONT DOOR KEY CYLINDER SWITCH LH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect main power window and door lock/unlock switch and front door key cylinder switch LH.
3. Check continuity between main power window and door lock/ unlock switch connector D7 terminals 4, 6 and front door key cylinder switch LH connector D14 terminals 1, 6.
1. 6 (R) - 6 (R): Continuity should exist.
2. 4 (L) - 1 (L): Continuity should exist.
OK or NG
1. OK: GO TO 3.
2. NG: Repair or replace harness.

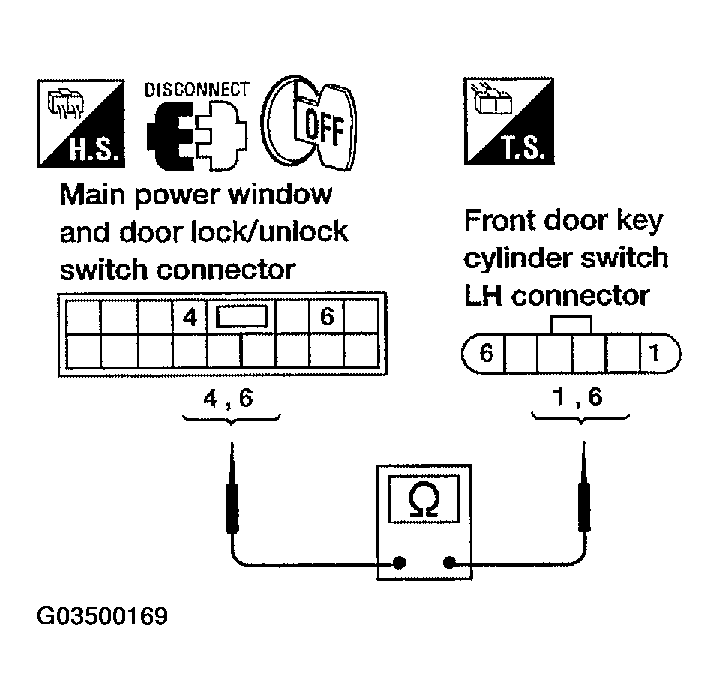

Fig 4: Checking Continuity Between Main Power Window And Door Lock/ Unlock Switch Connector Terminals And Front Door Key Cylinder Switch LH Connector Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK FRONT DOOR KEY CYLINDER SWITCH LH GROUND
Check continuity between front door key cylinder switch LH connector D14 terminal 5 and ground.
1. 5 (B) - Ground: Continuity should exist.
OK or NG
1. OK: GO TO 4.
2. NG: Repair or replace harness.

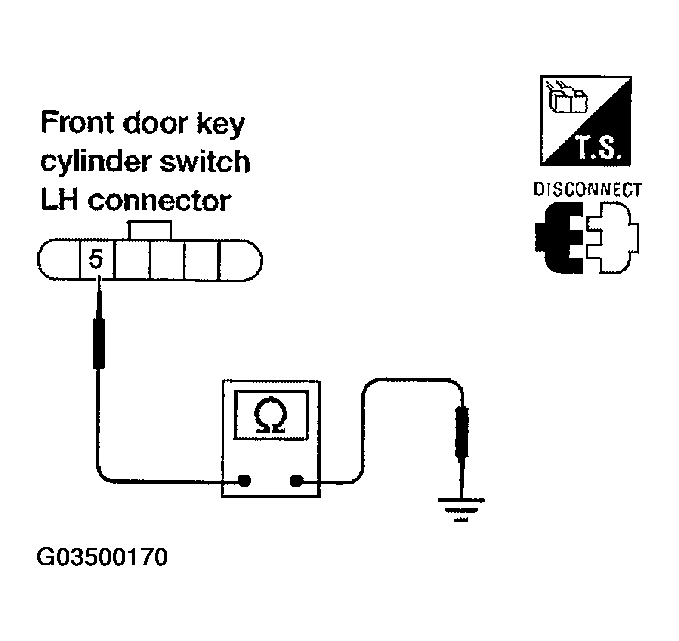

Fig 5: Checking Continuity Between Front Door Key Cylinder Switch LH Connector D14 Terminal 5 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK FRONT DOOR KEY CYLINDER SWITCH LH

Check continuity between door key cylinder switch LH connector D14 terminal 1, 6 and 5.

DOOR KEY CYLINDER SWITCH LH CONNECTORS CONTINUITY

Terminals		Key position	Continuity
6	5	Neutral / Lock	No
6		Unlock	Yes
1		Neutral / Unlock	No
1		Lock	Yes

OK or NG

OK: Further inspection is necessary. Refer to symptom chart.
NG: Replace front door key cylinder switch LH.

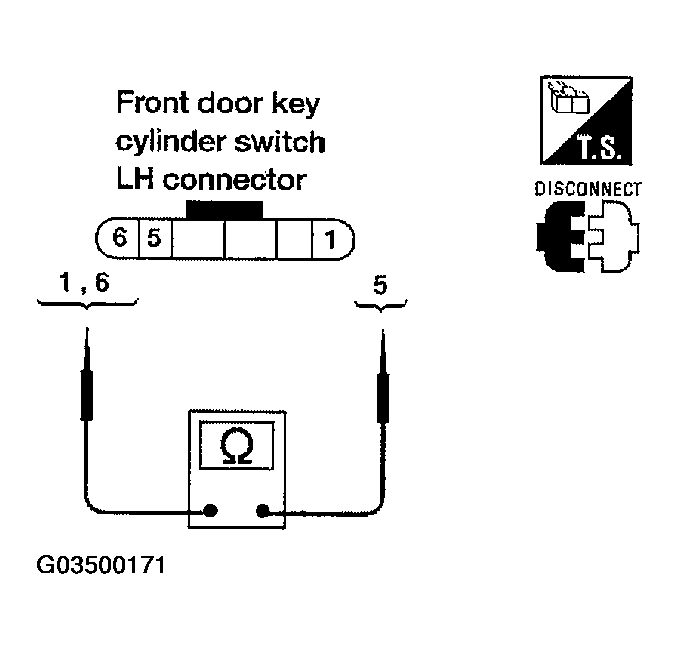

Fig 6: Checking Continuity Between Door Key Cylinder Switch LH Connector D14 Terminal 1, 6 And 5

Courtesy of NISSAN MOTOR CO., U.S.A.
