With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch ON.
Select "P/N POSI SW" in "DATA MONITOR" mode with CONSULT-II. Then check the "P/N POSI SW" signal under the following conditions.

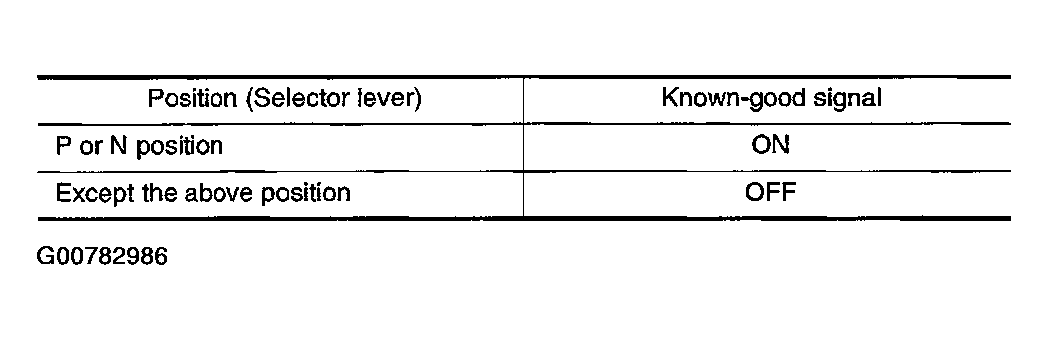

Fig 1: Signal Specification
Courtesy of NISSAN MOTOR CO., U.S.A.

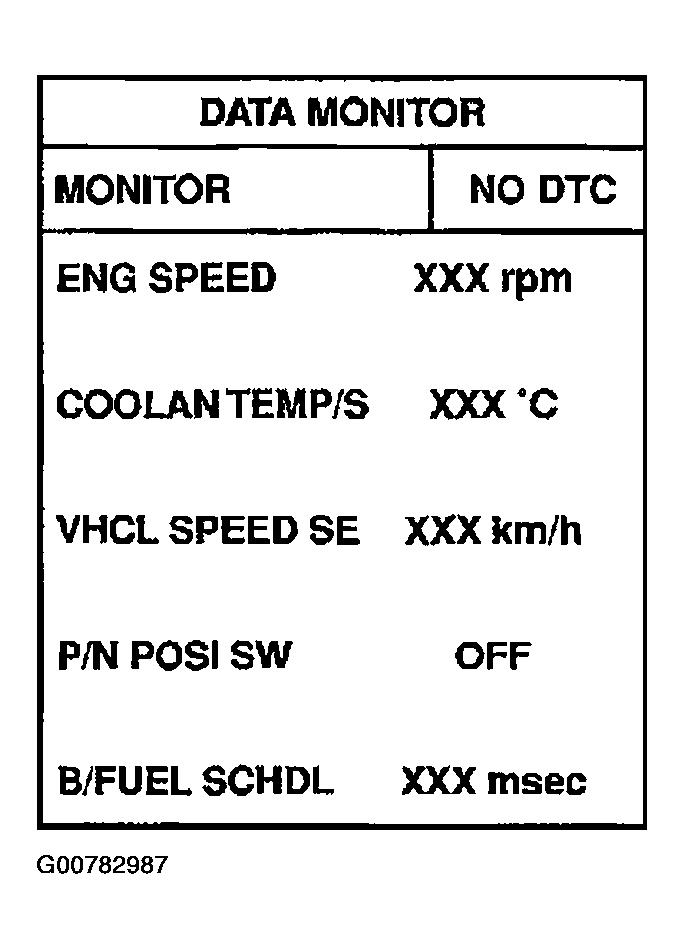

Fig 2: Displaying "DATA MONITOR" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, go to "DIAGNOSTIC PROCEDURE ".

If OK, go to following step.
Select "DATA MONITOR" mode with CONSULT-II.
Start engine and warm it up to normal operating temperature.
Maintain the following conditions for at least 60 consecutive seconds.

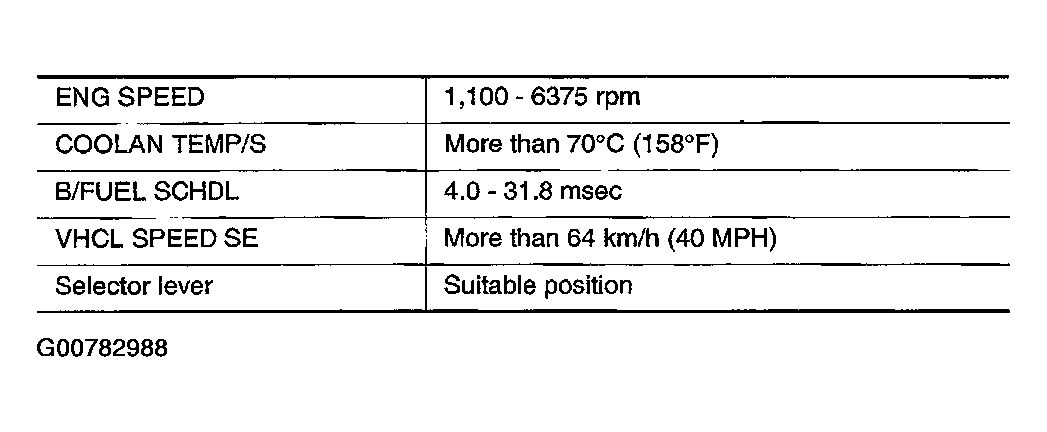

Fig 3: Speed Specification
Courtesy of NISSAN MOTOR CO., U.S.A.

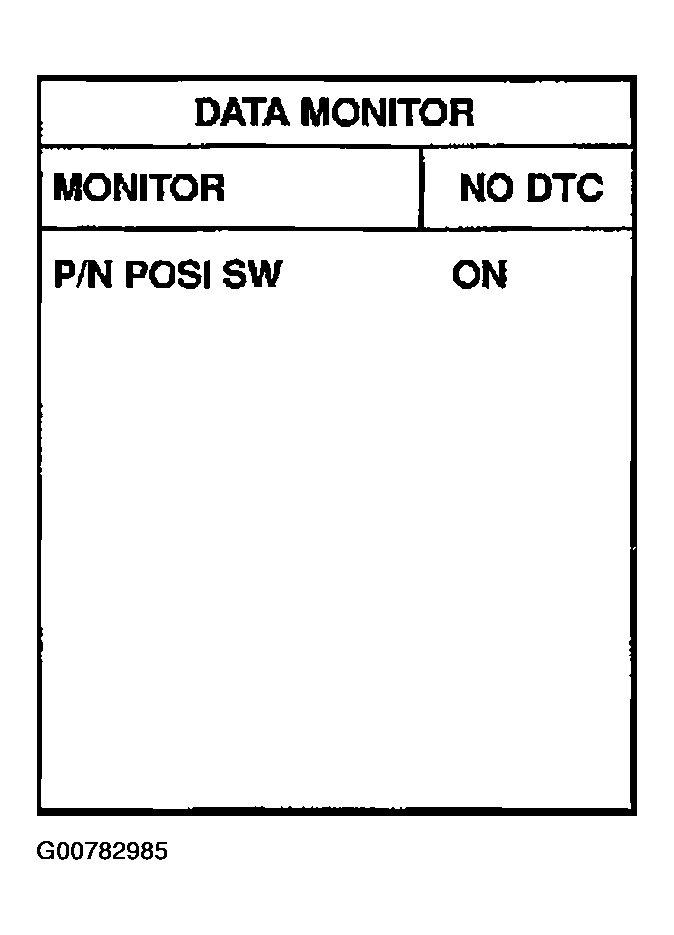

Fig 4: Displaying "DATA MONITOR" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "
