ABS Motor

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Touch "ON" and "OFF" on the screen. Make sure ABS motor relay operates as shown in table below.

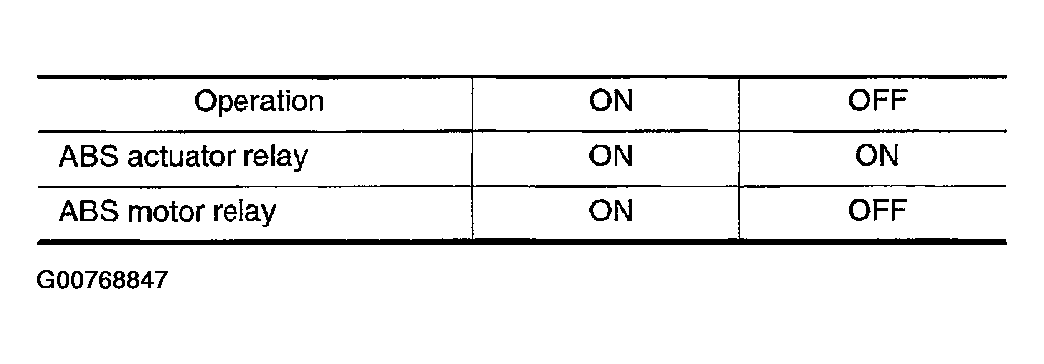

Fig 1: ABS Motor Relay Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

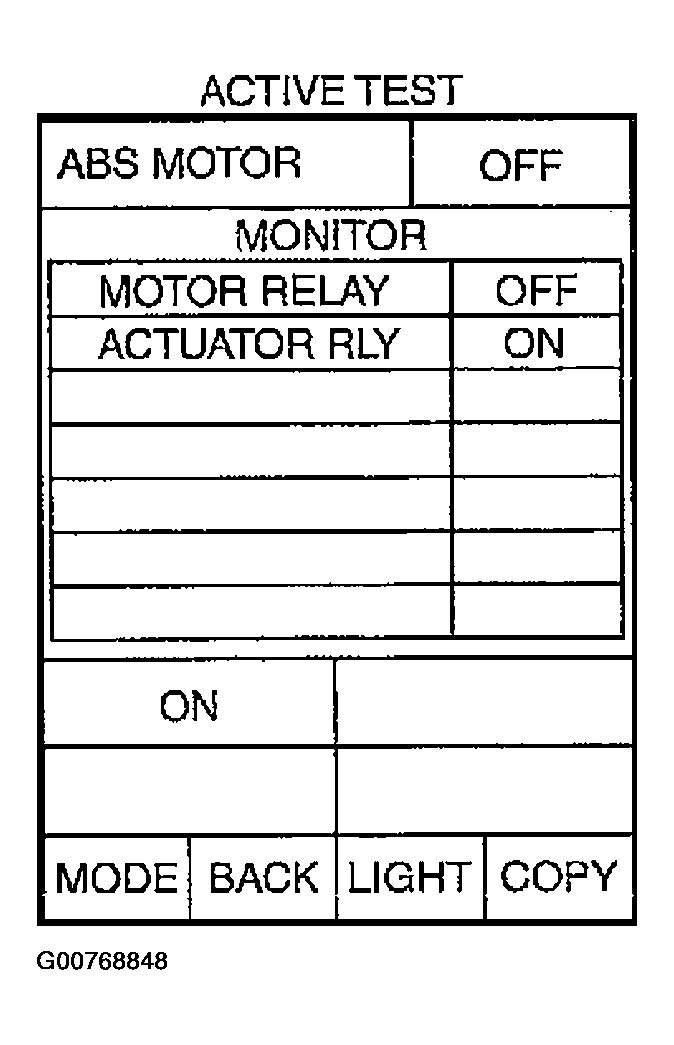

Fig 2: CONSULT-II ACTIVE TEST Display Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

When active test is performed while depressing pedal, pedal depression amount will change, but this is normal.
Approximately 10 seconds after operation is begun, "TEST STOP" will be displayed.
To perform retest after "TEST STOP" is displayed, touch "BACK" and conduct the test from the Step 6.
