Removal and Installation of GPS Antenna

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove defrost grille.
  2. Remove screws.
  3. Remove center console. Refer to CENTER CONSOLE .

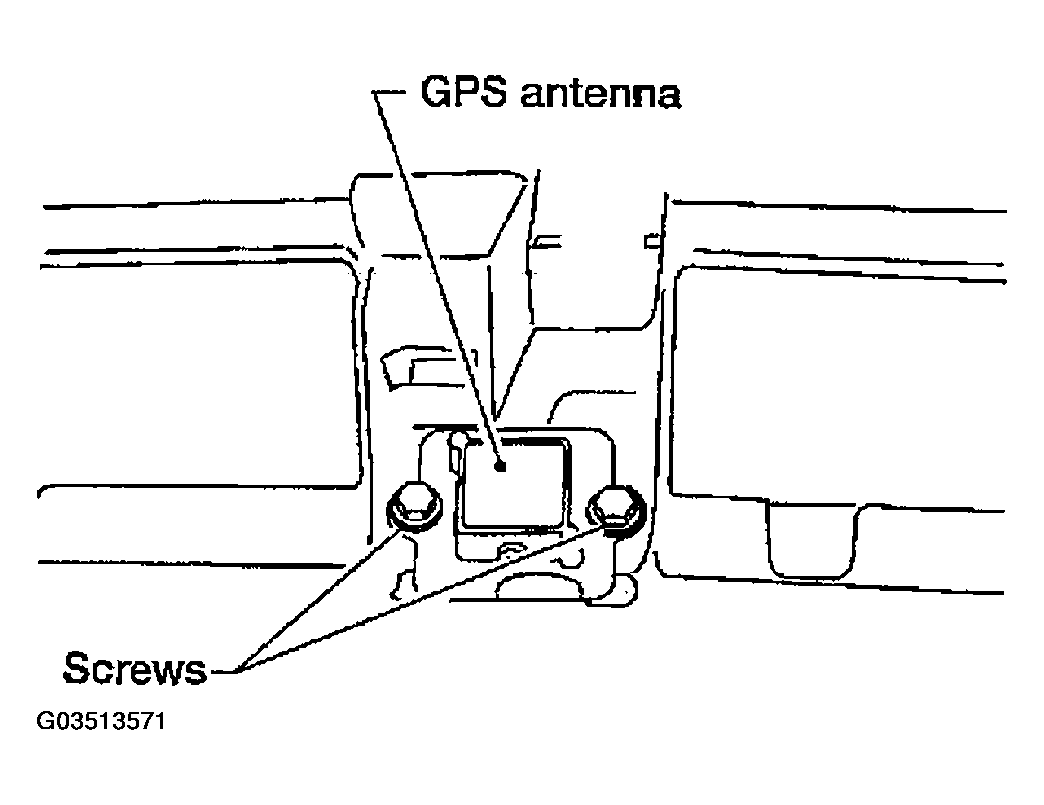

    Fig 1: Removing GPS Antenna
    G03513571Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Disconnect GPS antenna connector and remove GPS antenna and feeder assembly out the top.
  5. Installation is in the reverse order of removal.

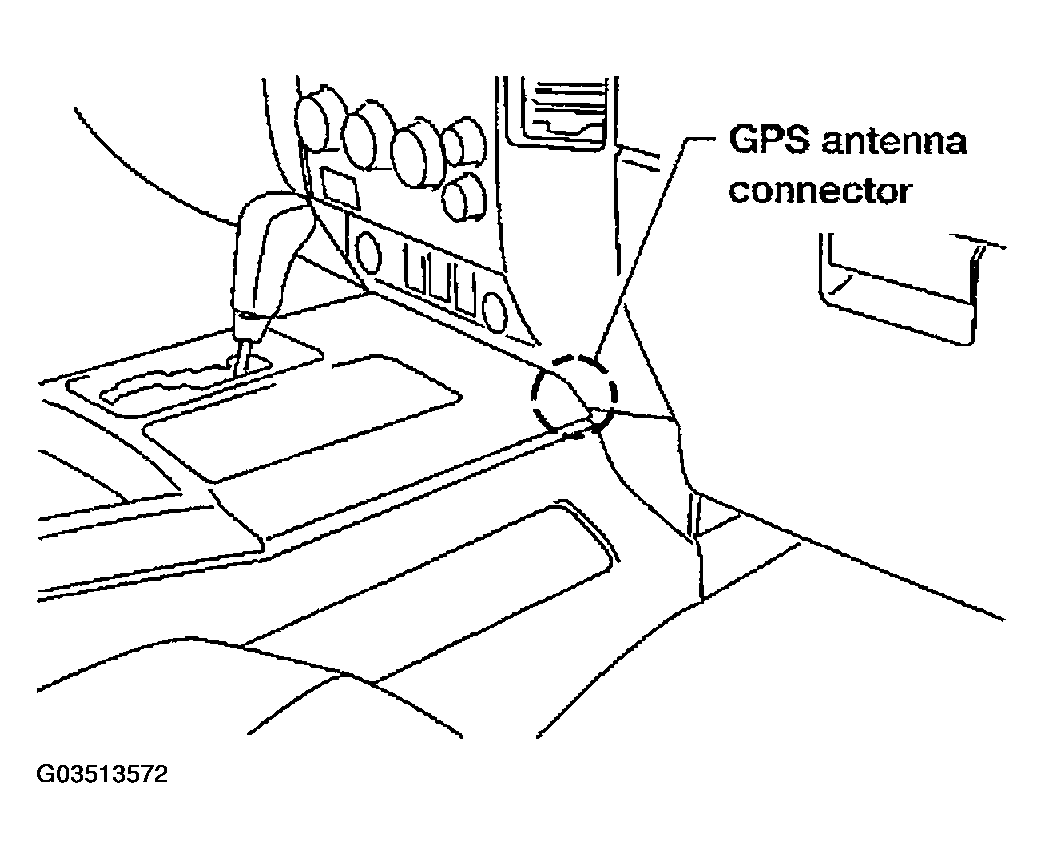

    Fig 2: Disconnecting GPS Antenna Connector And Removing GPS antenna
    G03513572Courtesy of NISSAN MOTOR CO., U.S.A.
