VDC Off Switch
WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

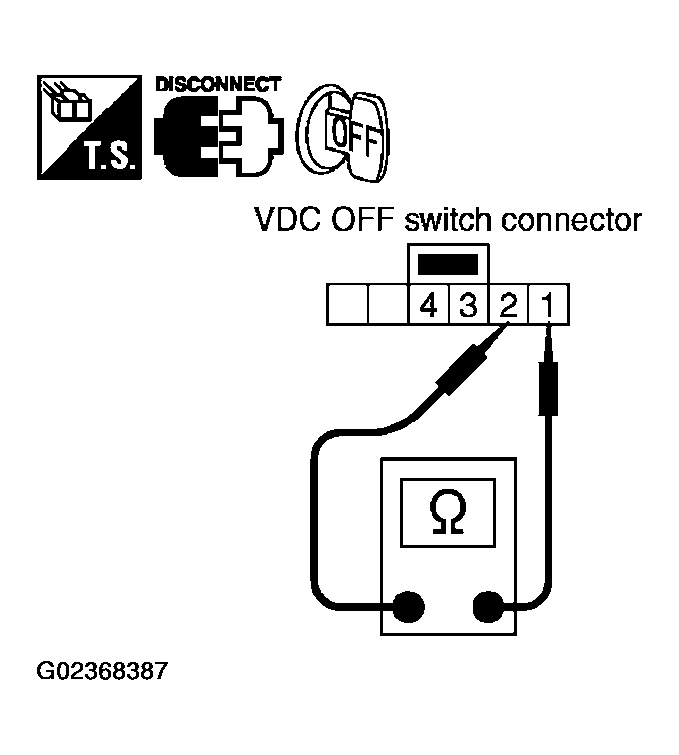

- Turn ignition switch OFF and disconnect VDC OFF switch connector, and check continuity between VDC OFF switch connector M32 terminals 1 and 2.
- 1 -2: Continuity should exist when pushing switch.
Continuity should not exist when releasing switch.
- 1 -2: Continuity should exist when pushing switch.
