Operation Procedure

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect CONSULT-II and CONVERTER to data link connector and start engine.
    CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which performs CAN communication.
  2. Touch "START (NISSAN BASED VHCL)" on the display screen.
  3. Touch "ABS".

    If "ABS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

  4. Touch "ACTIVE TEST".
  5. The test item selection screen is displayed.
  6. Touch necessary test item.

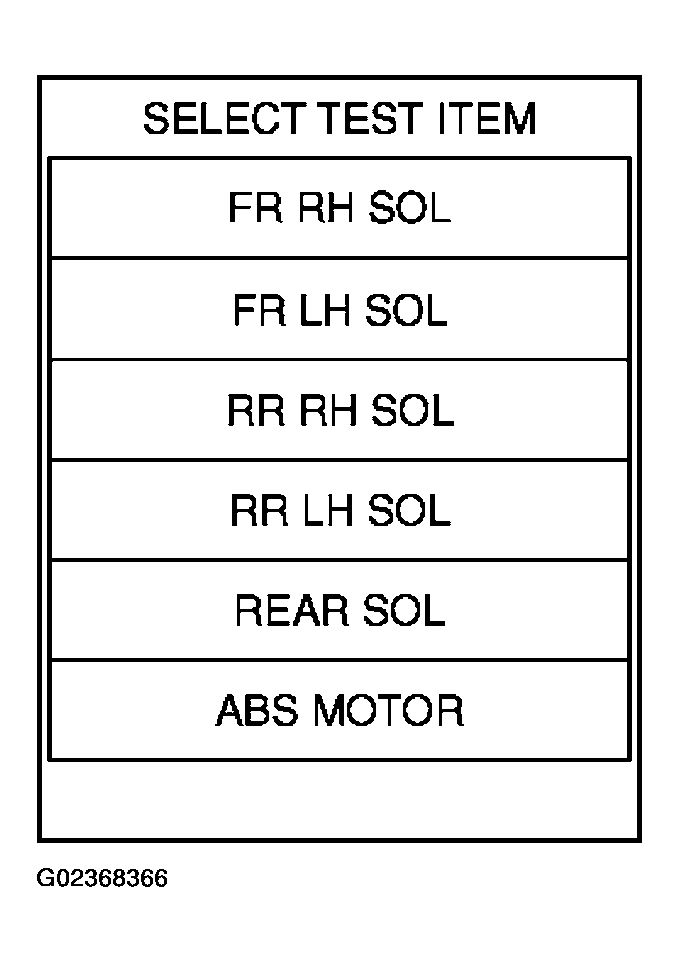

    Fig 1: Active Test - Data Display
    G02368366Courtesy of NISSAN MOTOR CO., U.S.A.
  7. With the "MAIN SIGNALS" display shown in reverse, touch "START".
  8. The "ACTIVE TEST" screen will be displayed, so perform the following test.
