All Step/Foot/Puddle Lamps Do Not Operate
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK EACH DOOR SWITCH

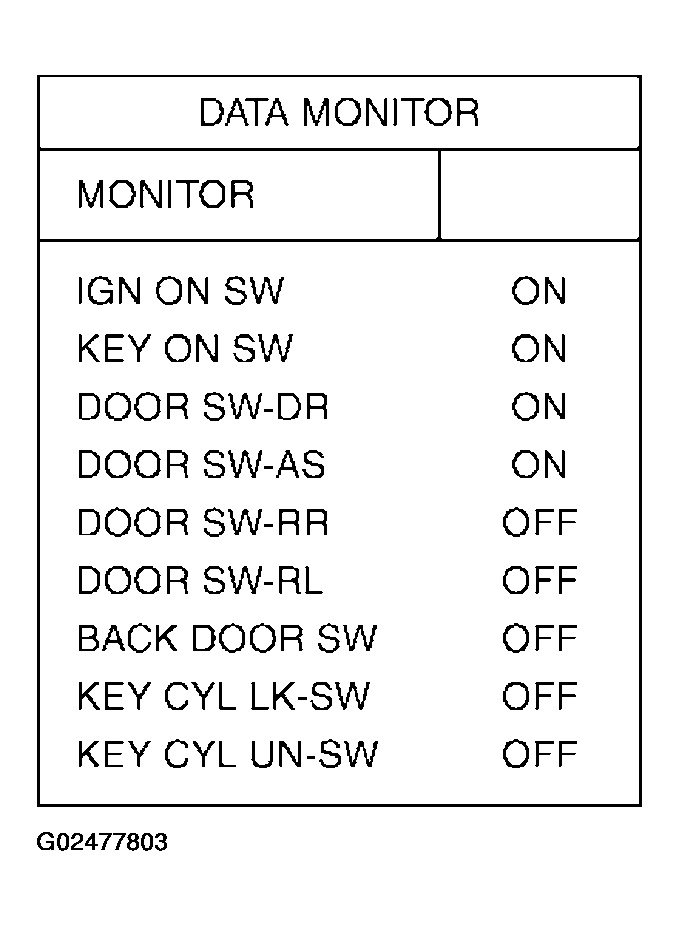

Select "BCM" on CONSULT-II. With "INT LAMP" data monitor, make sure switches listed in display item list turn ON-OFF linked with switch operation. Refer to "DISPLAY ITEM LIST " for switches and their functions.
OK or NG
- OK: GO TO 2.
- NG: Inspect malfunctioning switch system.
- CHECK STEP LAMP POWER SUPPLY
- Turn ignition switch OFF.

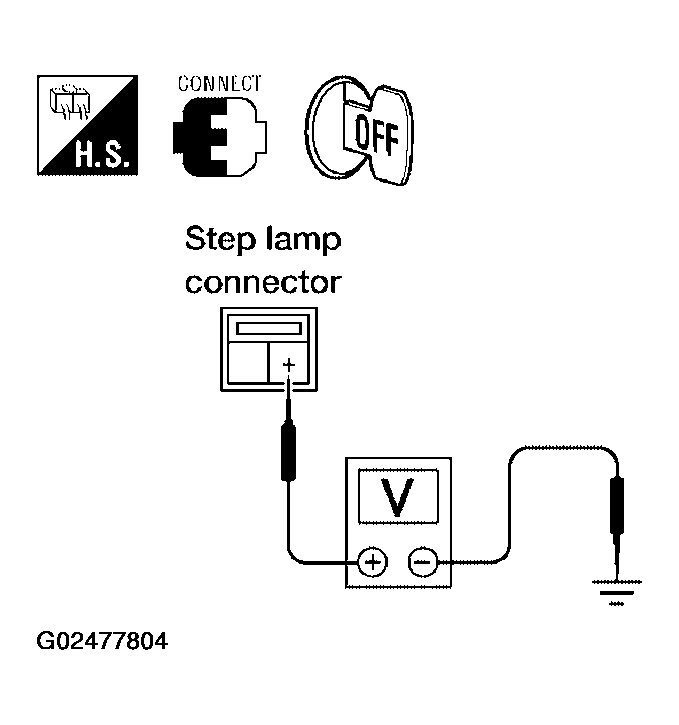

- Check voltage between front step lamp LH harness connector D11 terminal + (R/G) and ground.
Courtesy of NISSAN MOTOR CO., U.S.A.
+ (R/G) - Ground: Battery voltage should exist.
OK or NG
- OK: GO TO 3.
- NG: GO TO 4.
- CHECK STEP LAMP CONTROL CIRCUIT
- Disconnect BCM connector and front step lamp LH connector.

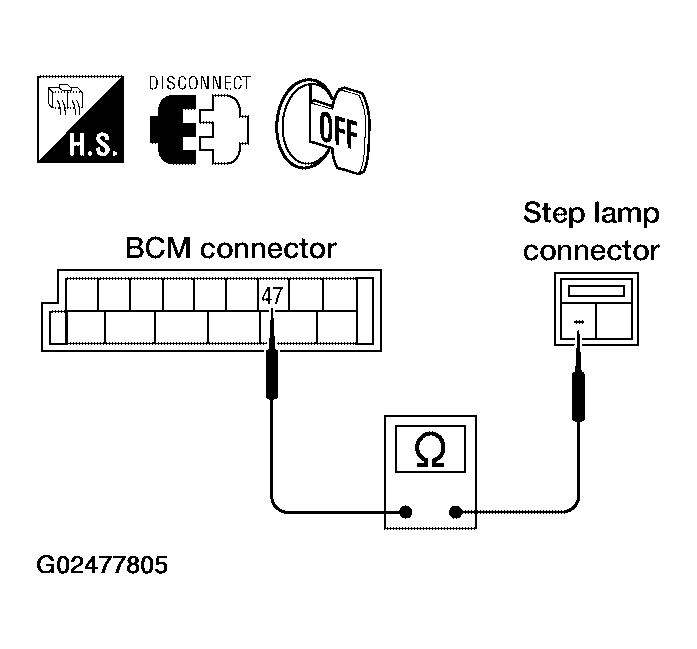

- Check continuity between BCM harness connector M19 terminal 47 (R/W) and front step lamp LH harness connector D11 terminal - (R/W).Fig 3: Checking Continuity Between BCM Harness Connector M19 Terminal 47 & Front Step Lamp LH Harness Connector D11 Terminal -
Courtesy of NISSAN MOTOR CO., U.S.A.
- (R/W) - 47 (R/W): Continuity should exist.
OK or NG
- OK: Replace BCM if step lamp does not work after setting the connector again. Refer to "REMOVAL AND INSTALLATION OF BCM ".
- NG: Repair harness or connector.
- CHECK STEP LAMP CIRCUIT
- Disconnect BCM connector and step lamp LH connector.

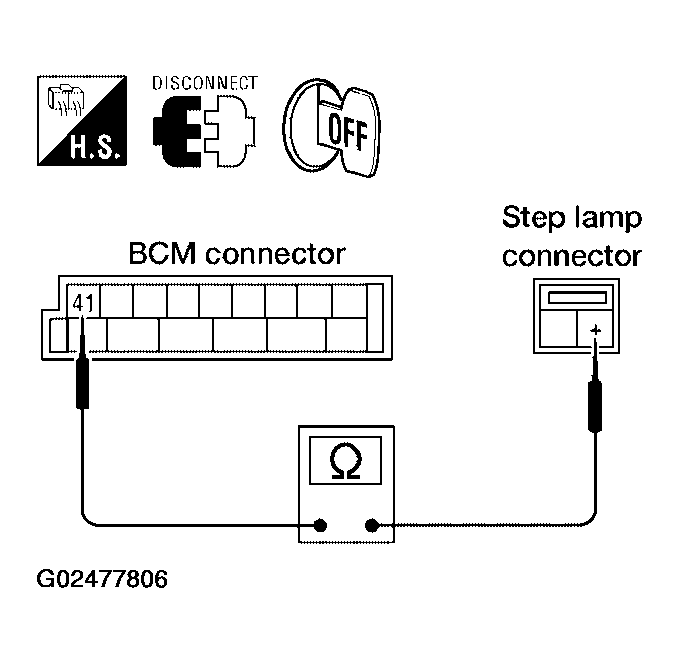

- Check continuity between BCM harness connector M19 terminal 41 (R/G) and front step lamp LH harness connector D11 terminal + (R/G).Fig 4: Checking Continuity Between BCM Harness Connector M19 Terminal 41 & Front Step Lamp LH Harness Connector D11 Terminal +
Courtesy of NISSAN MOTOR CO., U.S.A.
+ (R/G) - 41 (R/G): Continuity should exist.
OK or NG
- OK: Replace BCM if step lamp does not work after setting the connector again. Refer to "REMOVAL AND INSTALLATION OF BCM ".
- NG: Repair harness or connector.
