Bulb Replacement: Removal

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect electrical connector.
  2. Turn the bulb counterclockwise to remove it.
    CAUTION:
    • Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from it. Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.

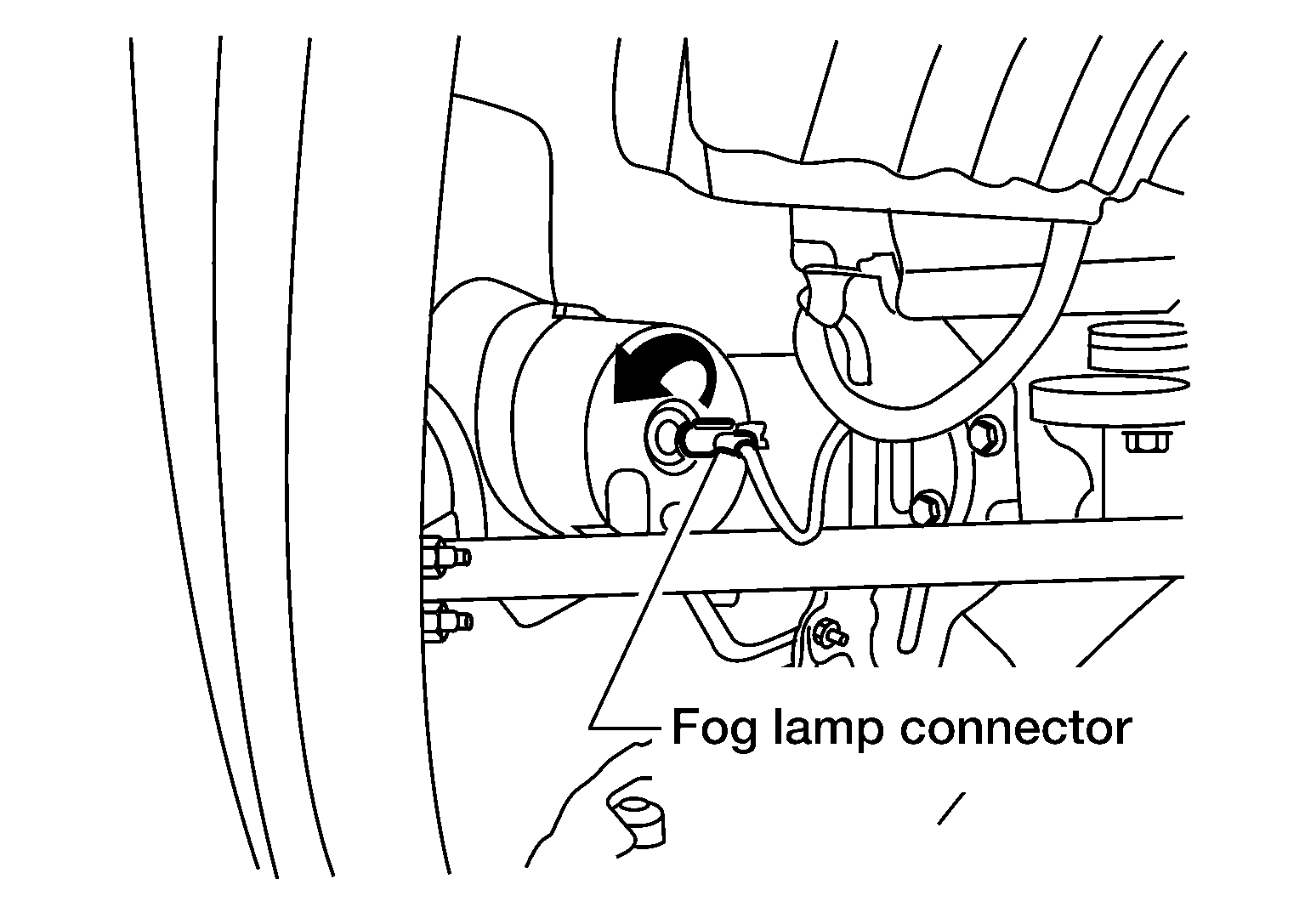

      • Fig 1: Identifying Fog Lamp Connector
      G04188626Courtesy of NISSAN MOTOR CO., U.S.A.
    • Do not leave bulb out of fog lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of fog lamp. When replacing bulb, be sure to replace it with new one.
