Terminals and Reference Values for BCM
WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
BCM TERMINALS AND REFERENCE VALUES
| Terminal No. | Wire color | Signal name | Measuring condition | Reference value (Approx.) | |
|---|---|---|---|---|---|
| Ignition switch | Operation or condition | ||||

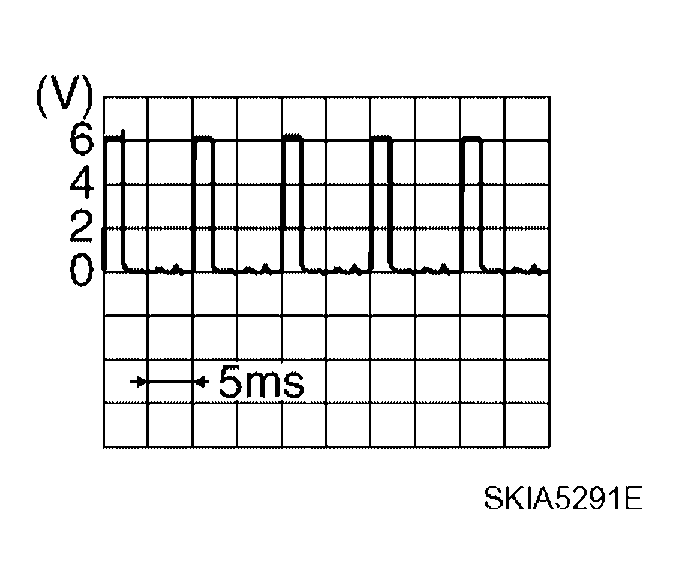

| 2 | SB | Combination switch input 5 | ON | Lighting, turn, wiper OFF Wiper dial position 4 |
|
| 3 | G/Y | Combination switch input 4 | ON | Lighting, turn, wiper OFF Wiper dial position 4 |
|
| 4 | Y | Combination switch input 3 | ON | Lighting, turn, wiper OFF Wiper dial position 4 |
|
| 5 | G/B | Combination switch input 2 | ON | Lighting, turn, wiper OFF Wiper dial position 4 |
|
| 6 | V | Combination switch input 1 | |||
| 32 | R/G | Combination switch output 5 | ON | Lighting, turn, wiper OFF Wiper dial position 4 |
|
| 33 | R/Y | Combination switch output 4 | ON | Lighting, turn, wiper OFF Wiper dial position 4 |
|
| 34 | L | Combination switch output 3 | ON | Lighting, turn, wiper OFF Wiper dial position 4 |
|
| 35 | O/B | Combination switch output 2 | ON | Lighting, turn, wiper OFF Wiper dial position 4 |
|
| 36 | R/W | Combination switch output 1 | |||
| 38 | W/L | Ignition switch (ON) | ON | - | Battery voltage |
| 39 | L | CAN-H | - | - | - |
| 40 | P | CAN-L | - | - | - |
| 67 | B | Ground | ON | - | 0V |
| 70 | W/B | Battery power supply (fusible link) | OFF | - | Battery voltage |
