Front Air Control Circuit Inspection

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of front air control for damage, bend and loose connection (control unit side and harness side).
OK or NG

OK: GO TO 2.

NG: Repair terminal or connector.

CHECK HARNESS FOR OPEN CIRCUIT

Disconnect front air control connector.

Check resistance between front air control harness connector terminals.

RESISTANCE REFERENCE CHART

Front air control connector	Terminal		Resistance (Approx.)
M50	34	35	54 - 66 ohm

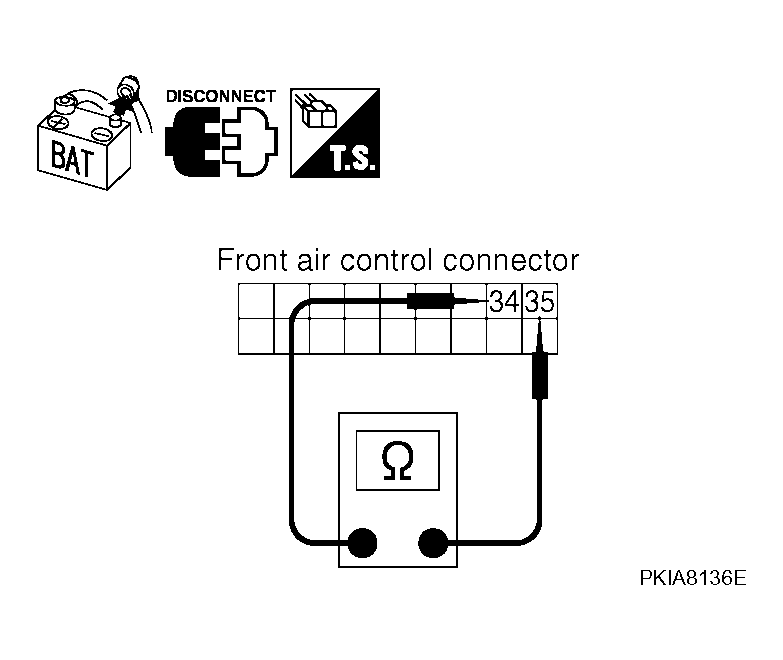

Fig 1: Identifying Resistance Between Front Air Control Harness Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace front air control.

NG: Repair harness between front air control and data link connector.
