Power Windows do not Operate at All: Wiring Diagram

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

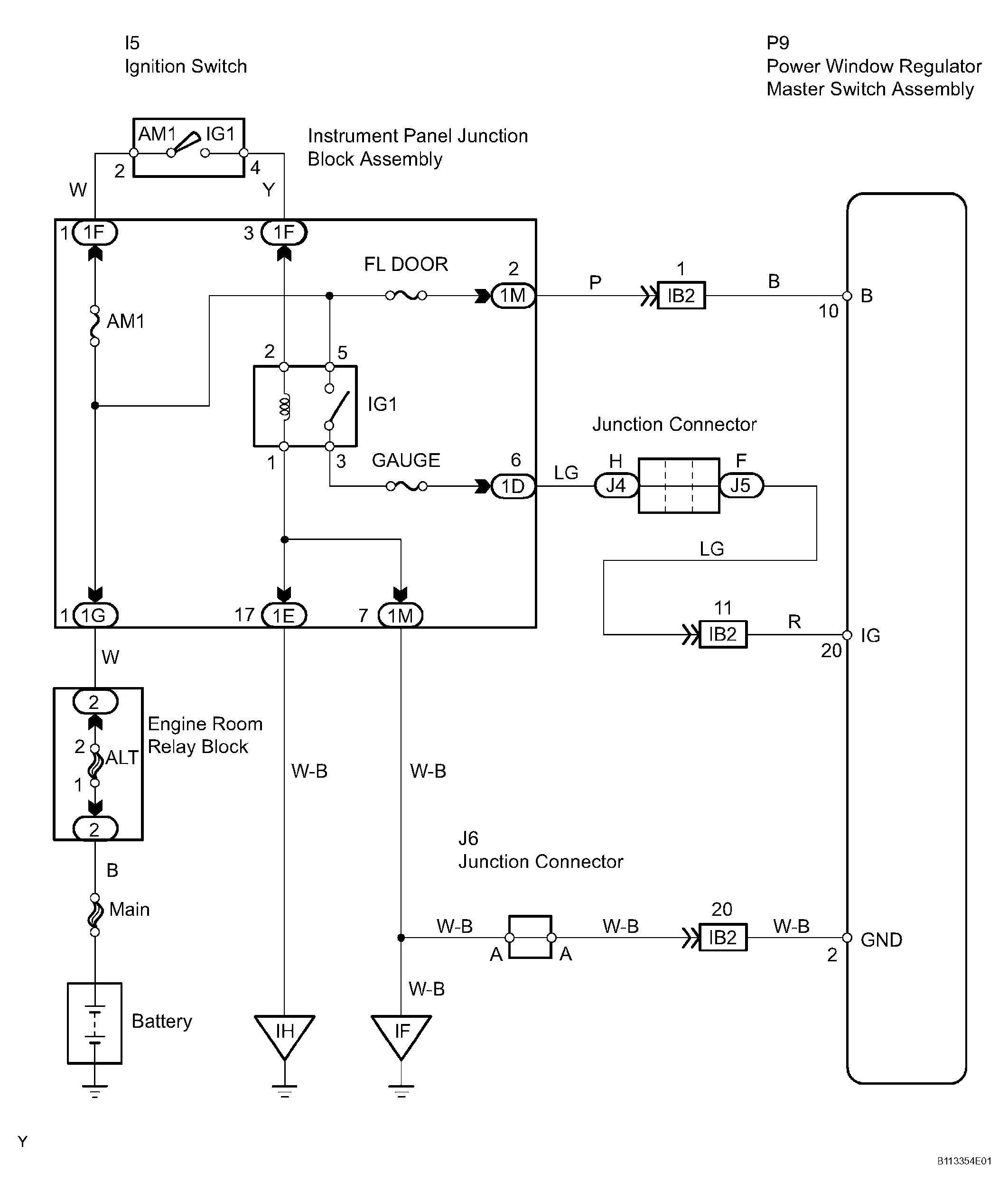

Fig 1: Power Windows Do Not Operate At All - Wiring Diagram
G04224447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
