Interior Room Lamp: Schematic

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

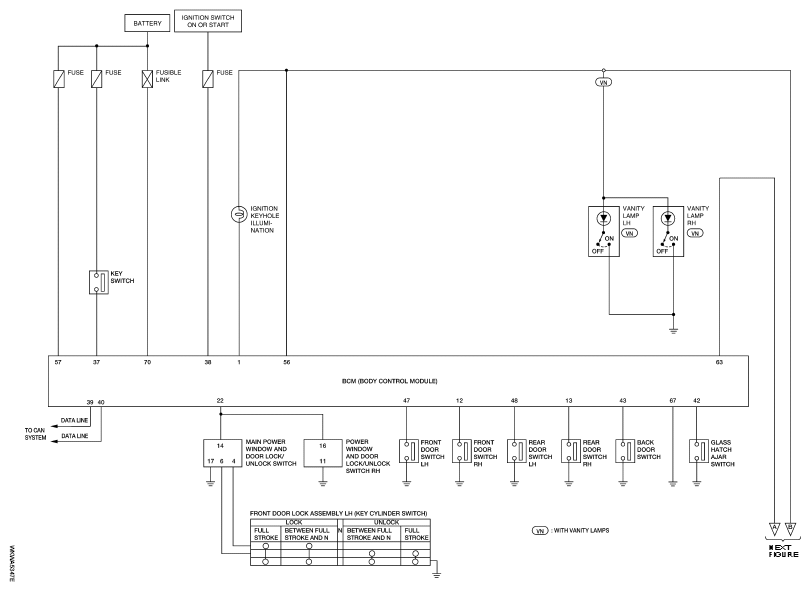

Fig 1: Identifying Interior Room Lamp Schematic (1 Of 2)
G04913876

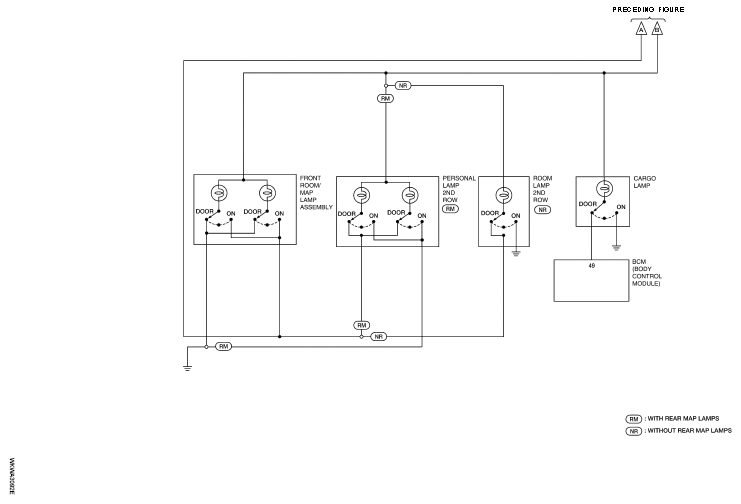

Fig 2: Identifying Interior Room Lamp Schematic (2 Of 2)
G04913877
