Component Inspection

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FRONT DOOR SWITCH

    Check front door switches.

    Terminal Door switch Continuity
    Door switches
    2 Ground part of door switch Pressed No
    Released Yes

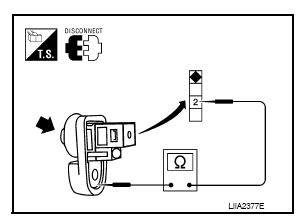

    Fig 1: Checking Front Door Switches
    G08168463Courtesy of NISSAN NORTH AMERICA, INC.

    Is the inspection result normal?

    YES: Front door switch is OK.

    NO: Replace front door switch.
