Testing Condition

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Steps 3 and 4 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test is expected to be easier, it is unnecessary to lift the vehicle.

With CONSULT-II

Start engine (VDC switch OFF).
Select "DATA MONITOR" mode with CONSULT-II.
Drive the vehicle for at least 5 consecutive seconds under the following conditions.

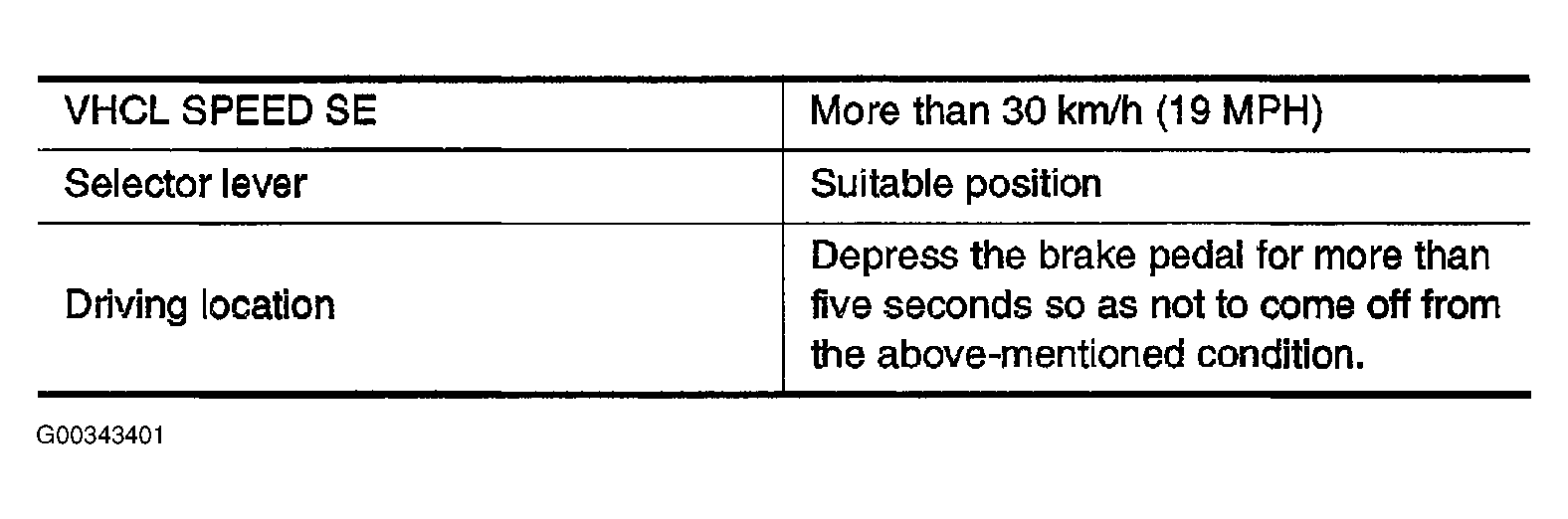

Fig 1: CONSULT-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.

If DTC is detected, go to DIAGNOSTIC PROCEDURE .

If DTC is not detected, go to the following step.
Drive the vehicle for at least 5 consecutive seconds under the following conditions.

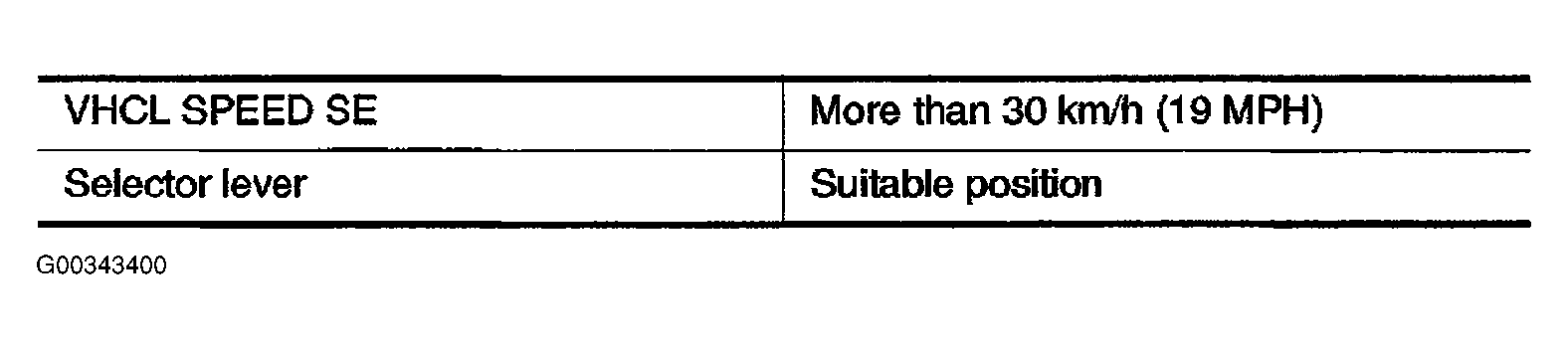

Fig 2: Test Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.
If DTC is detected, go to DIAGNOSTIC PROCEDURE .

WITH GST

Follow the procedure "WITH CONSULT-II" above.
