5. Check Combination Meter

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Disconnect combination meter harness connector.
Check continuity under the following conditions.

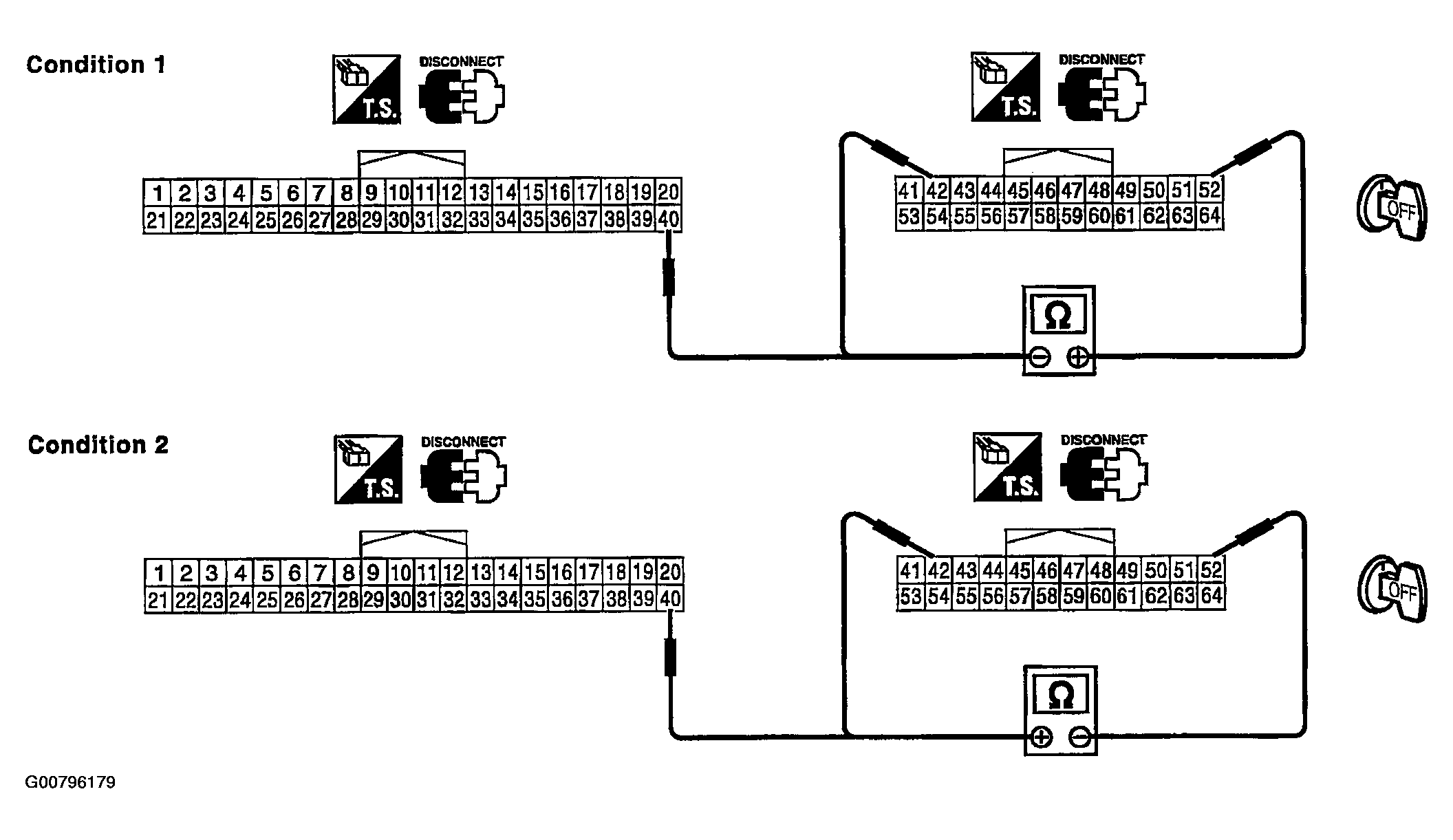

Fig 1: Checking Continuity (As Shown)
Courtesy of NISSAN MOTOR CO., U.S.A.

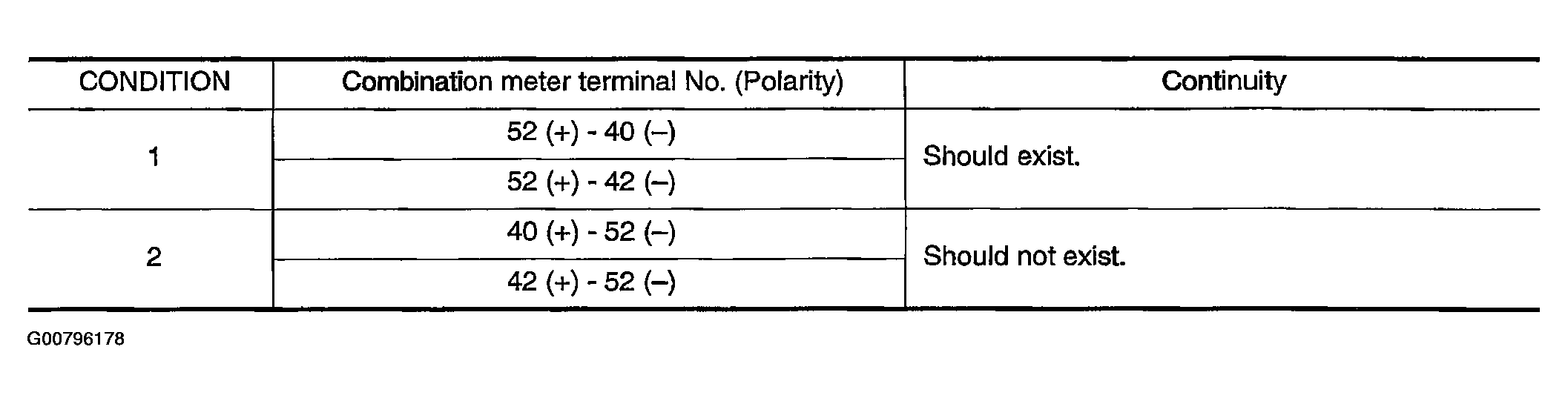

Fig 2: Inspecting Condition Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 6.
NG: Replace combination meter. Refer to REMOVAL AND INSTALLATION OF COMBINATION METER .
