Test Item

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Solenoid valve

CAUTION: The example shown is for front right wheel. The procedure for the other wheels is the same as given below.

For ABS solenoid valve, touch UP, KEEP, and DOWN. Then use screen monitor to check that solenoid valve operates as shown in Solenoid Valve Operation Chart. Refer to Solenoid Valve Operation Chart.

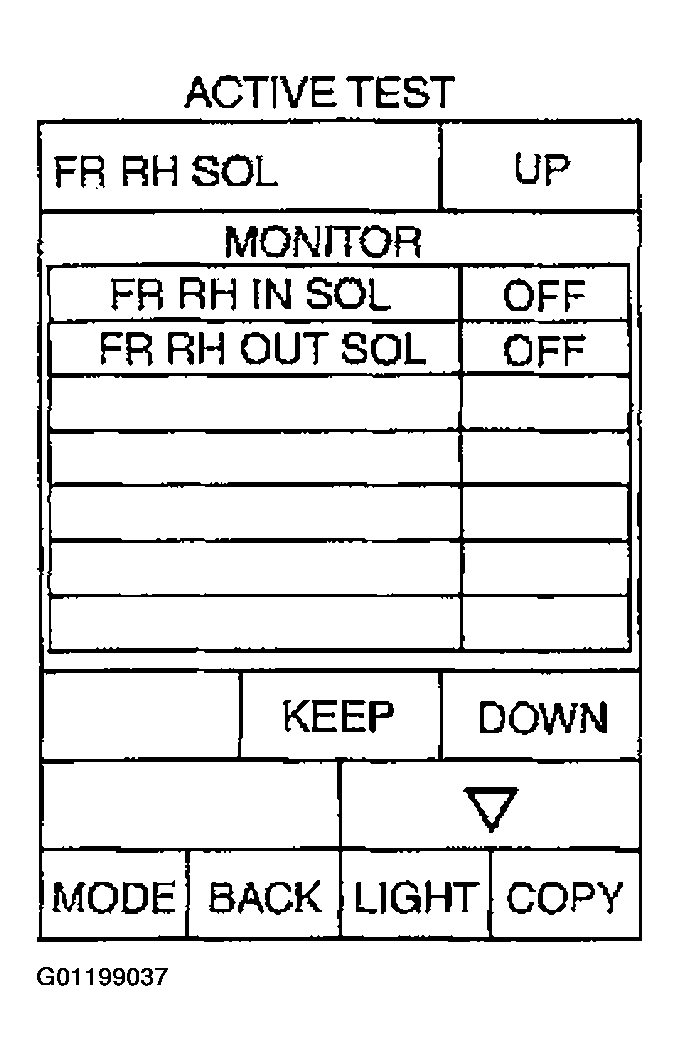

Fig 1: CONSULT-II ACTIVE TEST Display Screen

Courtesy of NISSAN MOTOR CO., U.S.A.
