Diagnostic Procedure

CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to "COMPONENT INSPECTION ".

OK or NG
1. OK : GO TO 2.
2. NG : Replace crankshaft position sensor (POS).
CHECK CAMSHAFT POSITION SENSOR (PHASE)
Refer to "COMPONENT INSPECTION ".

OK or NG
1. OK : GO TO 3.
2. NG : Replace camshaft position sensor (PHASE).
CHECK CAMSHAFT (INTAKE)
Check the following.
- Accumulation of debris to the signal plate of camshaft rear end
- Chipping signal plate of camshaft rear end
OK or NG
1. OK : GO TO 4.
2. NG : Remove debris and clean the signal plate of camshaft rear end or replace camshaft.

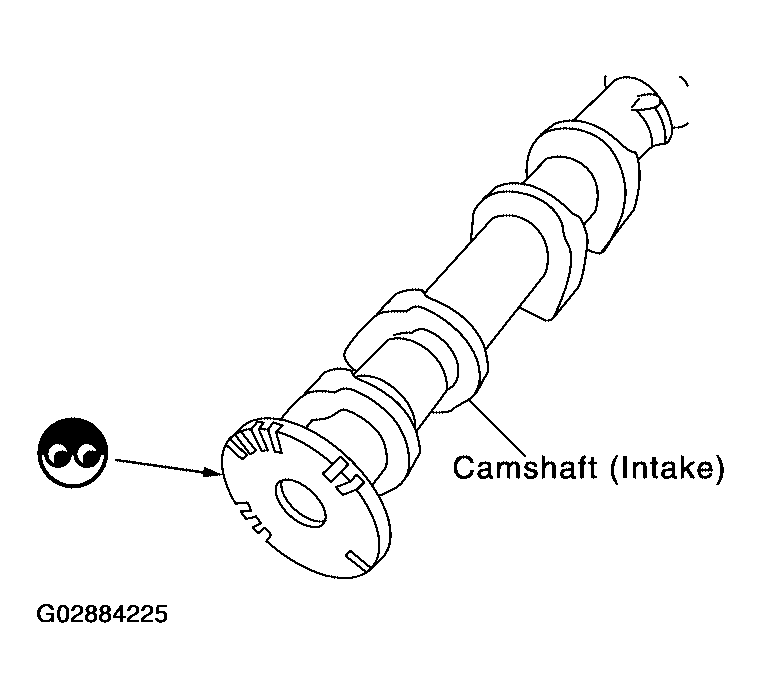

  Fig 1: Checking Camshaft (Intake)
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

For wiring diagram refer to WIRING DIAGRAM and WIRING DIAGRAM .
1. >> INSPECTION END
