CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

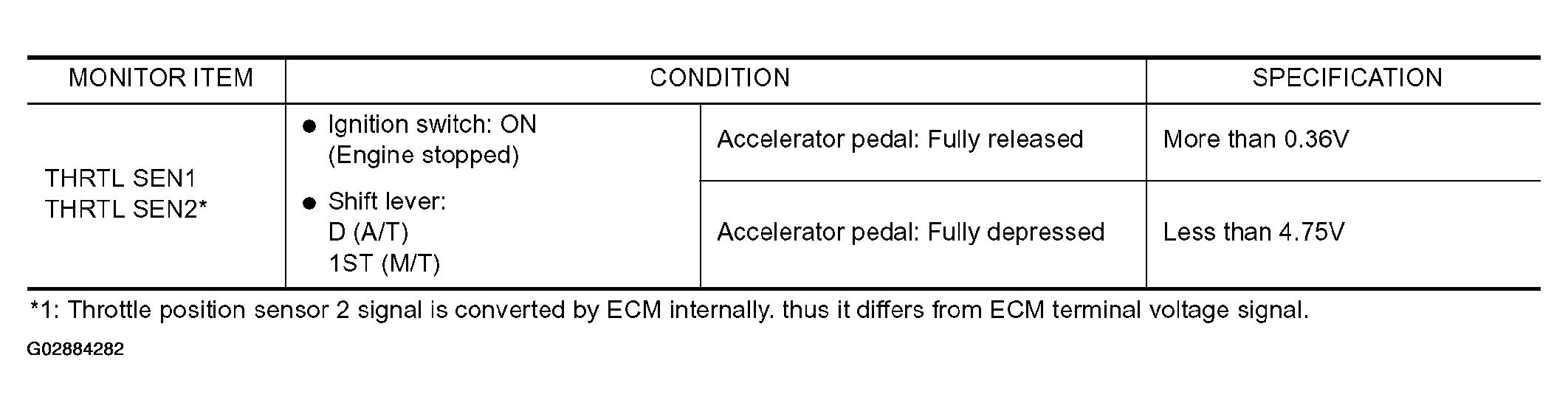

Fig 1: Monitor Item - TP Sensor Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

*1: Throttle position sensor 2 signal is converted by ECM internally, thus it differs from ECM terminal voltage signal.
