Fuel Tank Temperature Sensor

Check resistance by heating with hot water or heat gun as shown in the figure.

FUEL TANK TEMPERATURE SENSOR RESISTANCE

Temperature °C (°F)	Resistance kΩ
20 (68)	2.3 - 2.7
50 (122)	0.79 - 0.90

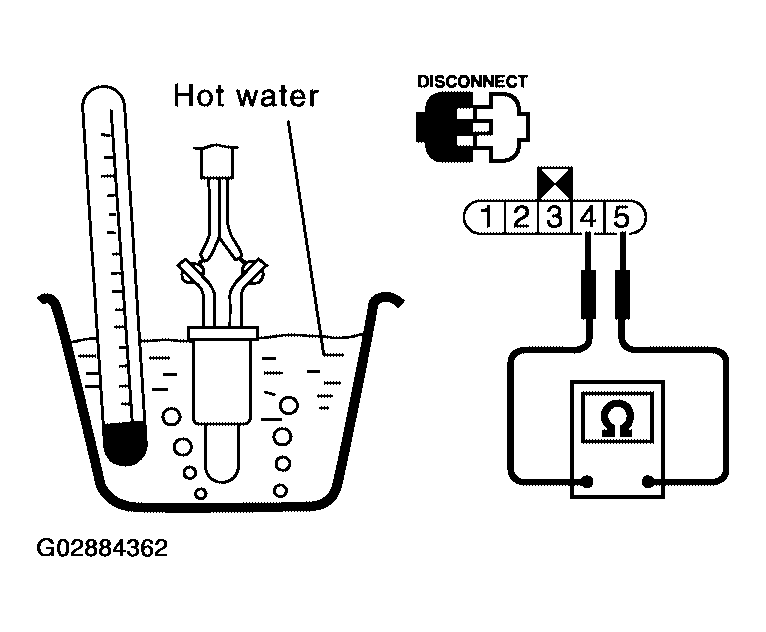

Fig 1: Checking Fuel Tank Temperature Sensor Resistance By Heating With Hot Water

Courtesy of NISSAN MOTOR CO., U.S.A.
