With CONSULT-II

  1. Turn ignition switch ON and wait at least 1 second.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.
  4. Repeat step  3 procedure for 32 times.
  5. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

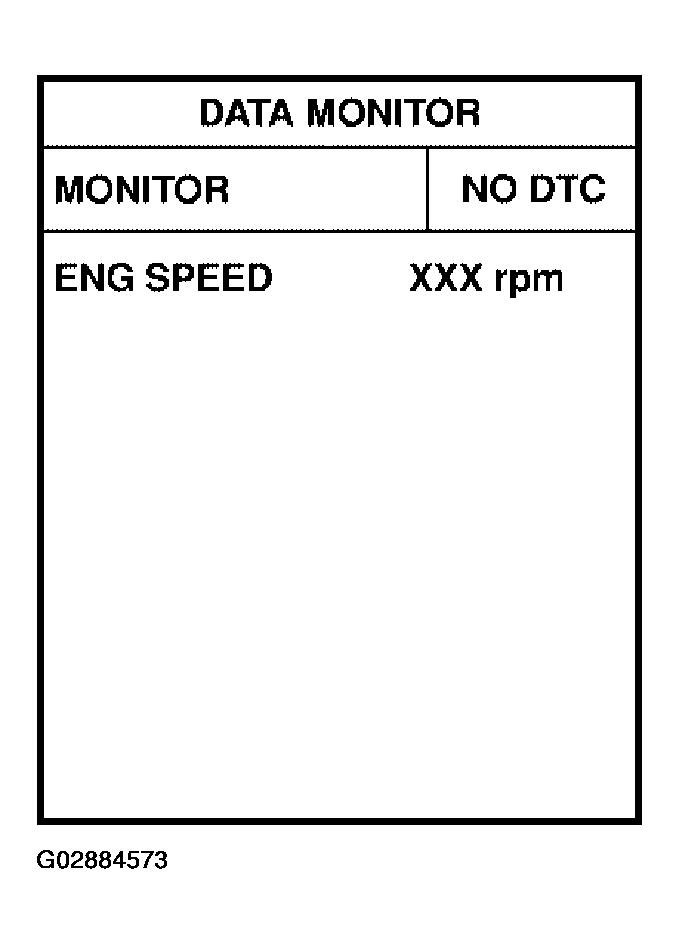

    Fig 1: Display CONSULT II (Data Monitor) (3 Of 3)
    G02884573Courtesy of NISSAN MOTOR CO., U.S.A.
