ASCD Steering Switch

Disconnect ASCD steering switch.
Check continuity between ASCD steering switch terminals 1 and 2 with pushing each switch.

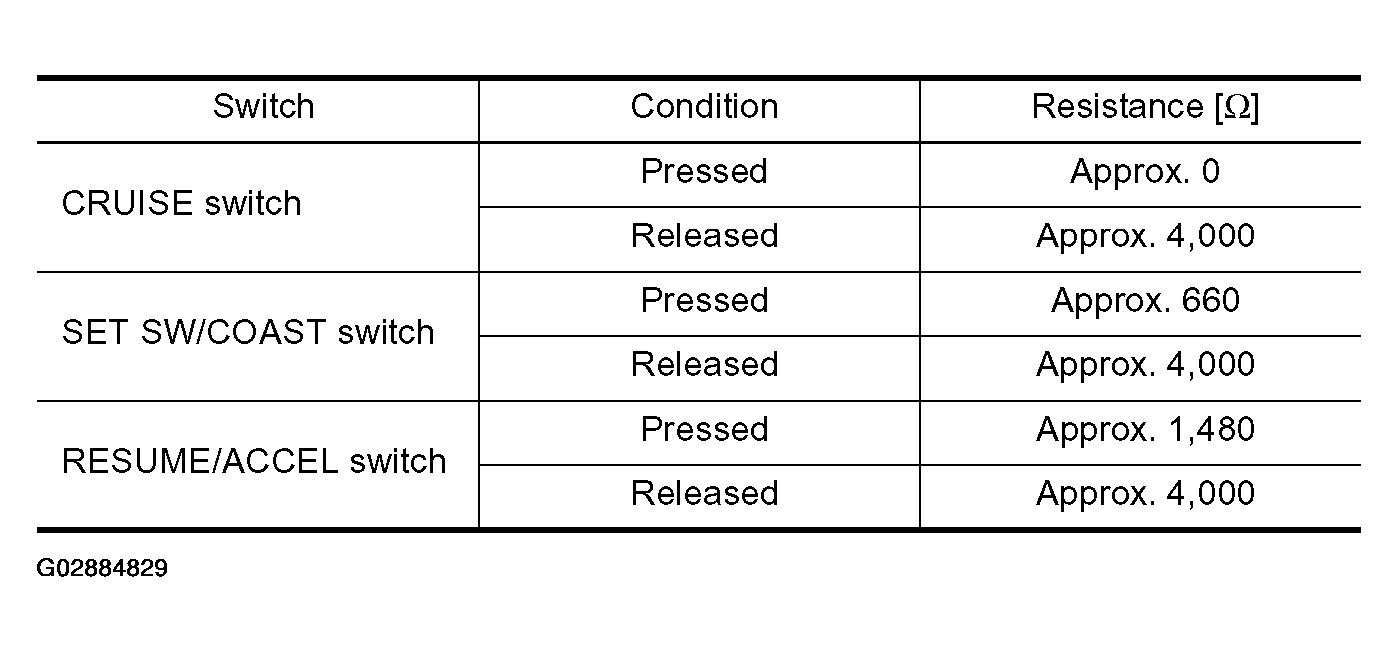

Fig 1: ASCD Steering Switch Resistance Conditions Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

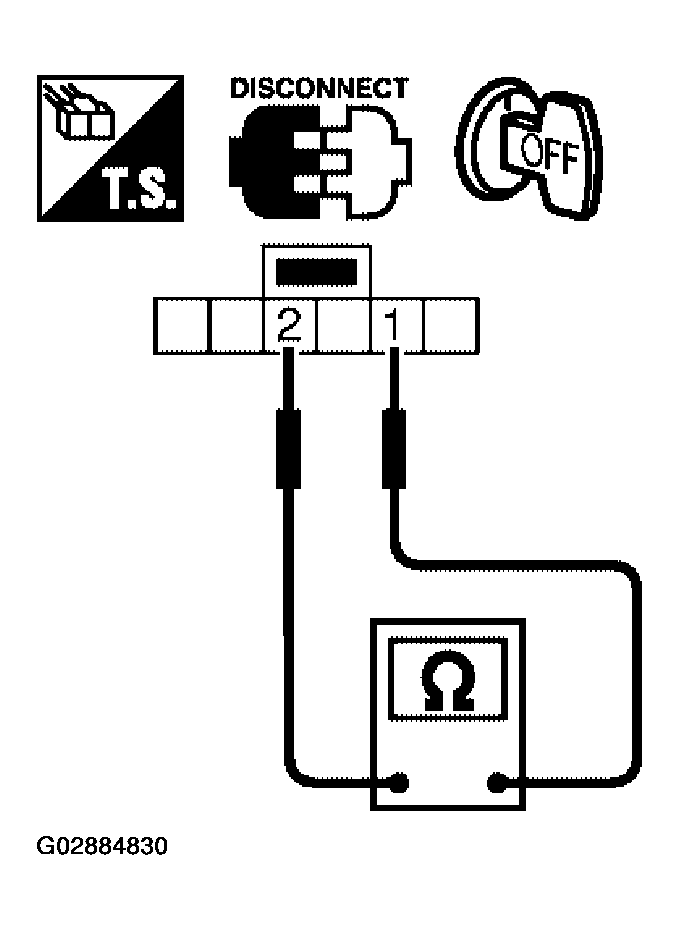

Fig 2: Checking Continuity Between ASCD Steering Switch Terminals 1 & 2
Courtesy of NISSAN MOTOR CO., U.S.A.

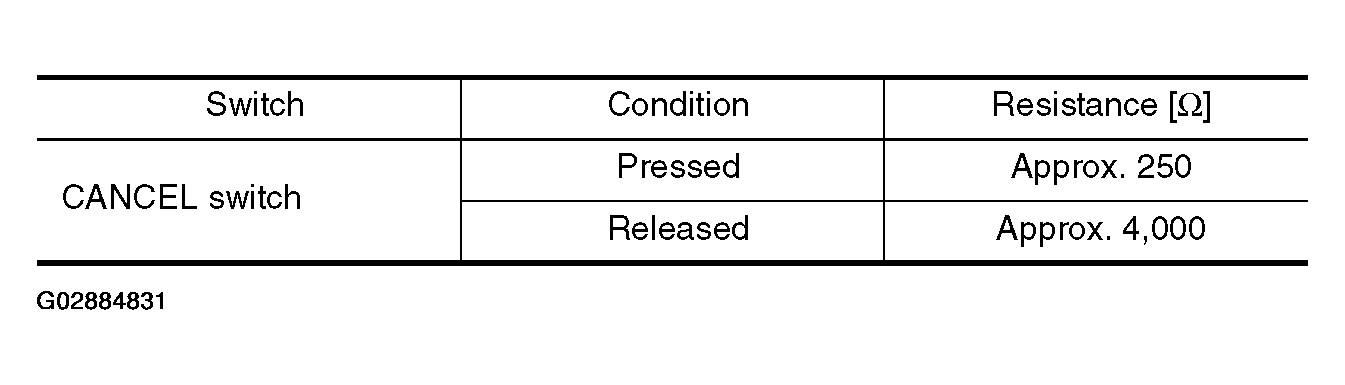

Fig 3: ASCD Steering Switch Resistance Conditions Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace ASCD steering switch.
