Diagnostic Procedure

1. Turn ignition switch ON.
2. Connect CONSULT-II or GST and select "DATA MONITOR" mode.
3. Select "LOAD SIGNAL" and check indication under the following conditions.
   LOAD SIGNAL INDICATION



   Condition	Indication
   Rear window defogger switch ON	ON
   Rear window defogger switch OFF	OFF

OK or NG

1. OK : GO TO 2.
2. NG : GO TO  3.

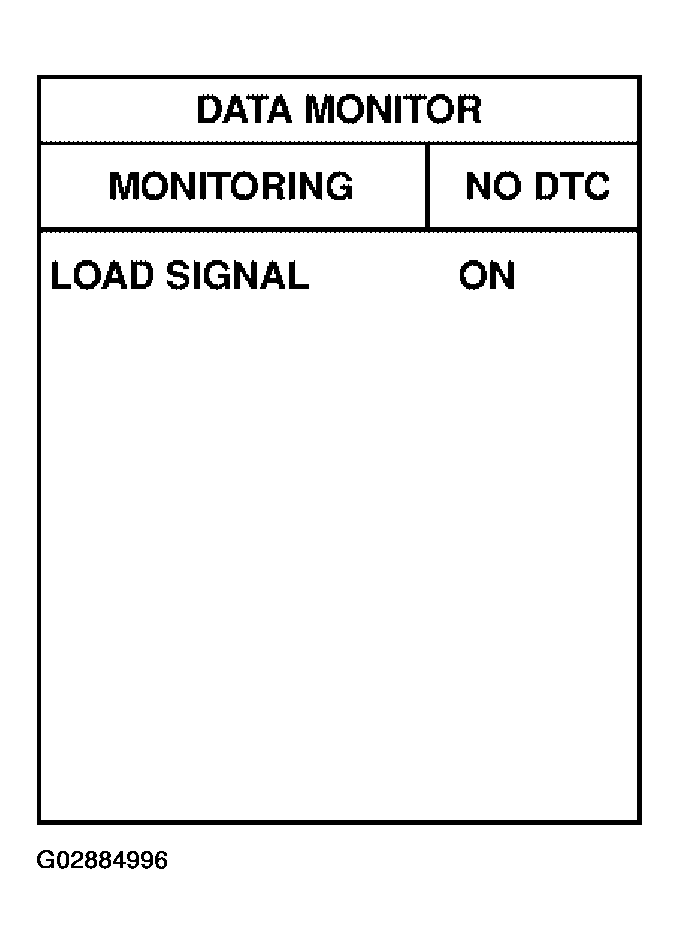

   Fig 1: Displaying DATA MONITOR Mode

   Courtesy of NISSAN MOTOR CO., U.S.A.

Check "LOAD SIGNAL" indication under the following conditions.

OK or NG

1. OK : INSPECTION END
2. NG : GO TO  4.
   Fig 2: Displaying DATA MONITOR Mode

   Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "PRELIMINARY CHECK ".

1. >> INSPECTION END

Refer to "HEADLAMP (FOR USA) " or "HEADLAMP (FOR CANADA) - DAYTIME RUNNING SYSTEM ".

1. >> INSPECTION END
