Monitored Item

x: Applicable

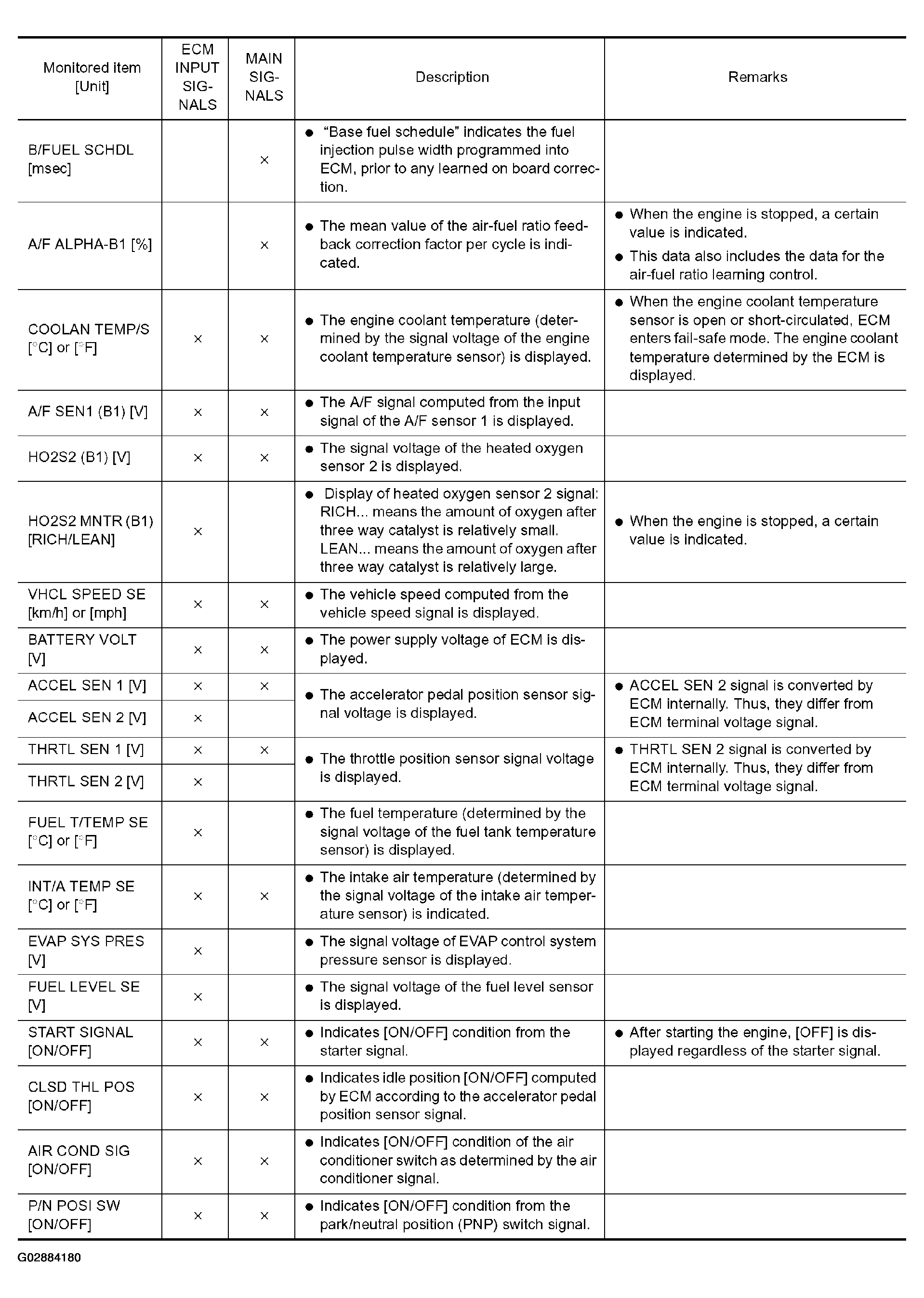

Fig 1: Data Monitor Mode Monitored Item Description Chart (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

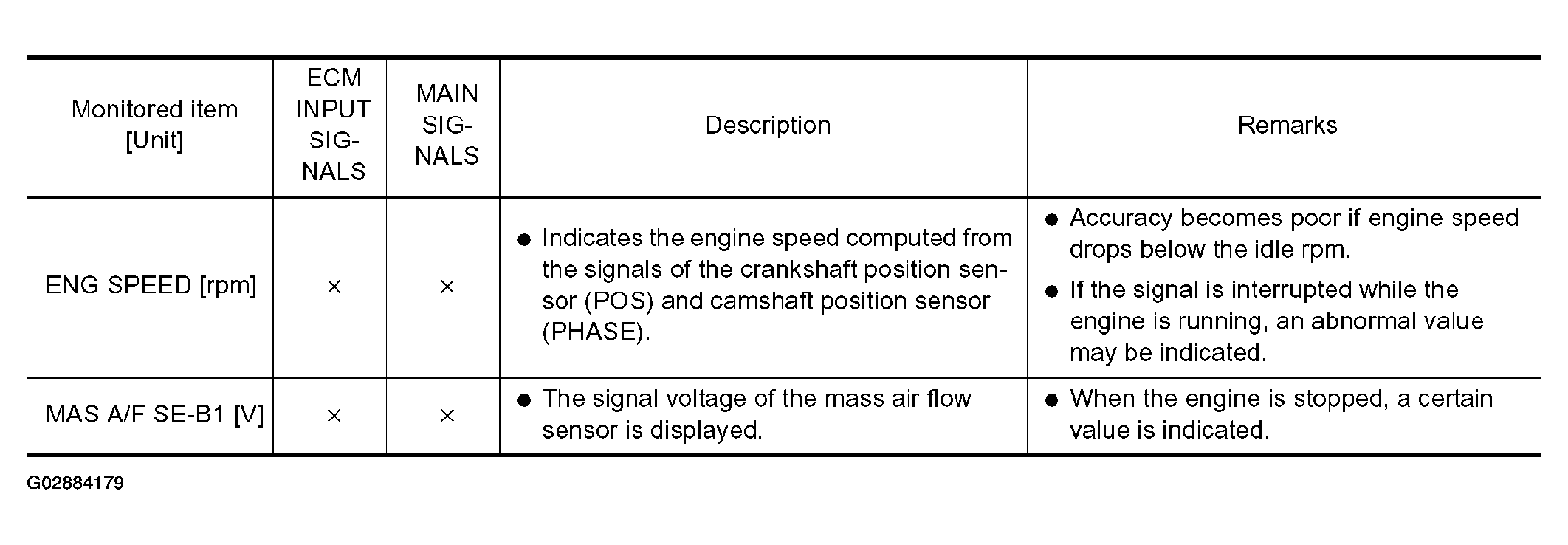

Fig 2: Data Monitor Mode Monitored Item Description Chart (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

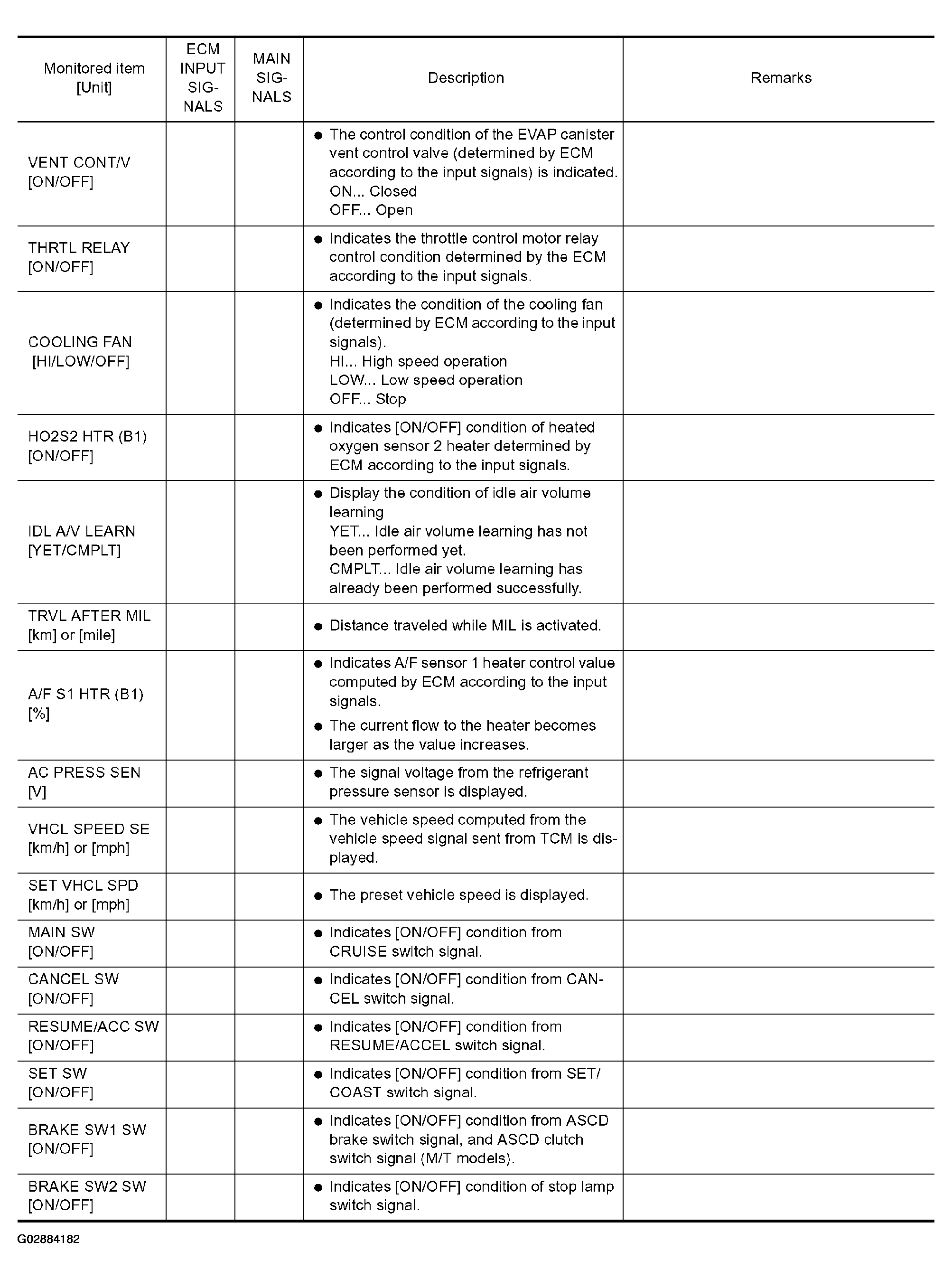

Fig 3: Data Monitor Mode Monitored Item Description Chart (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

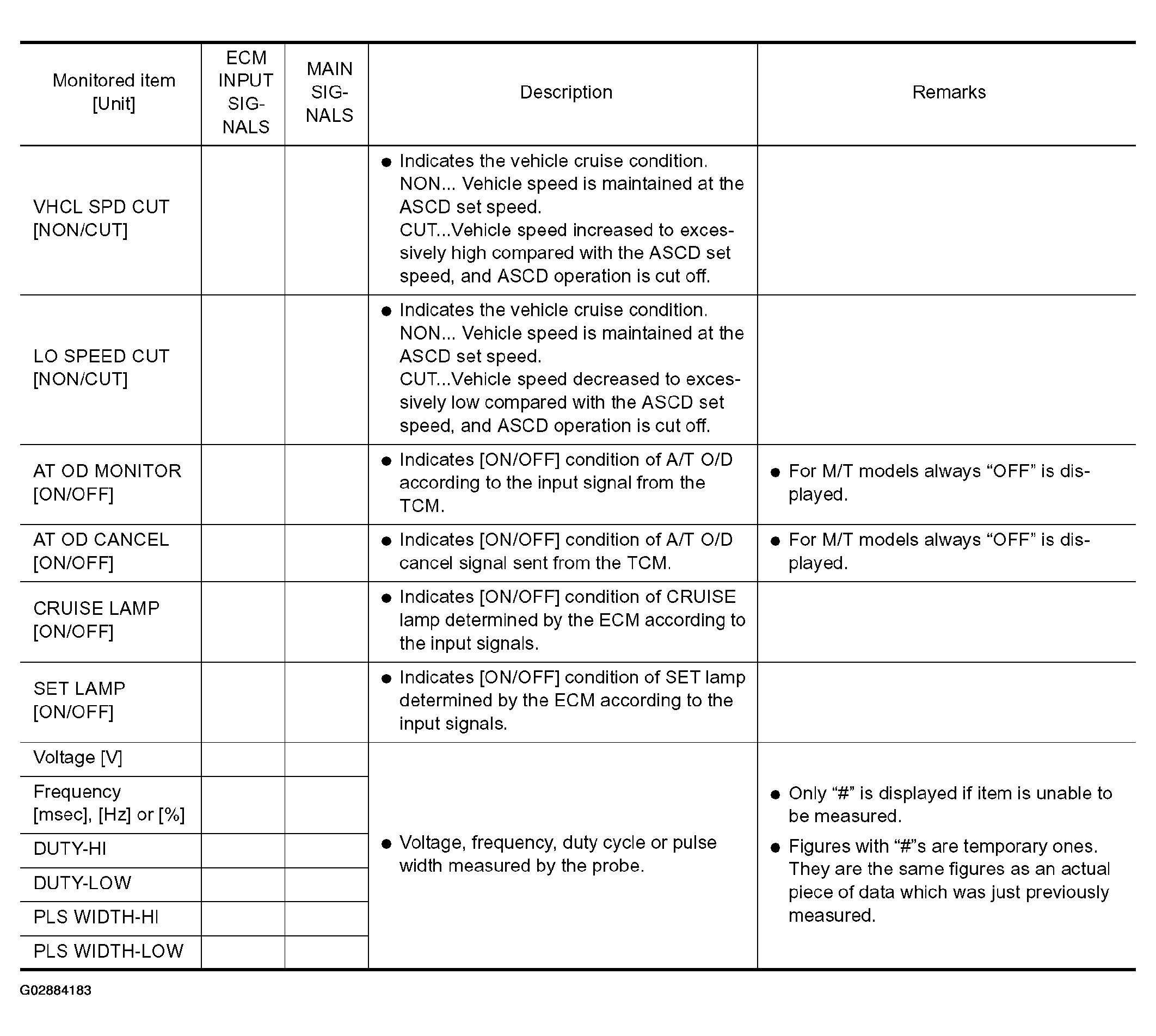

Fig 4: Data Monitor Mode Monitored Item Description Chart (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

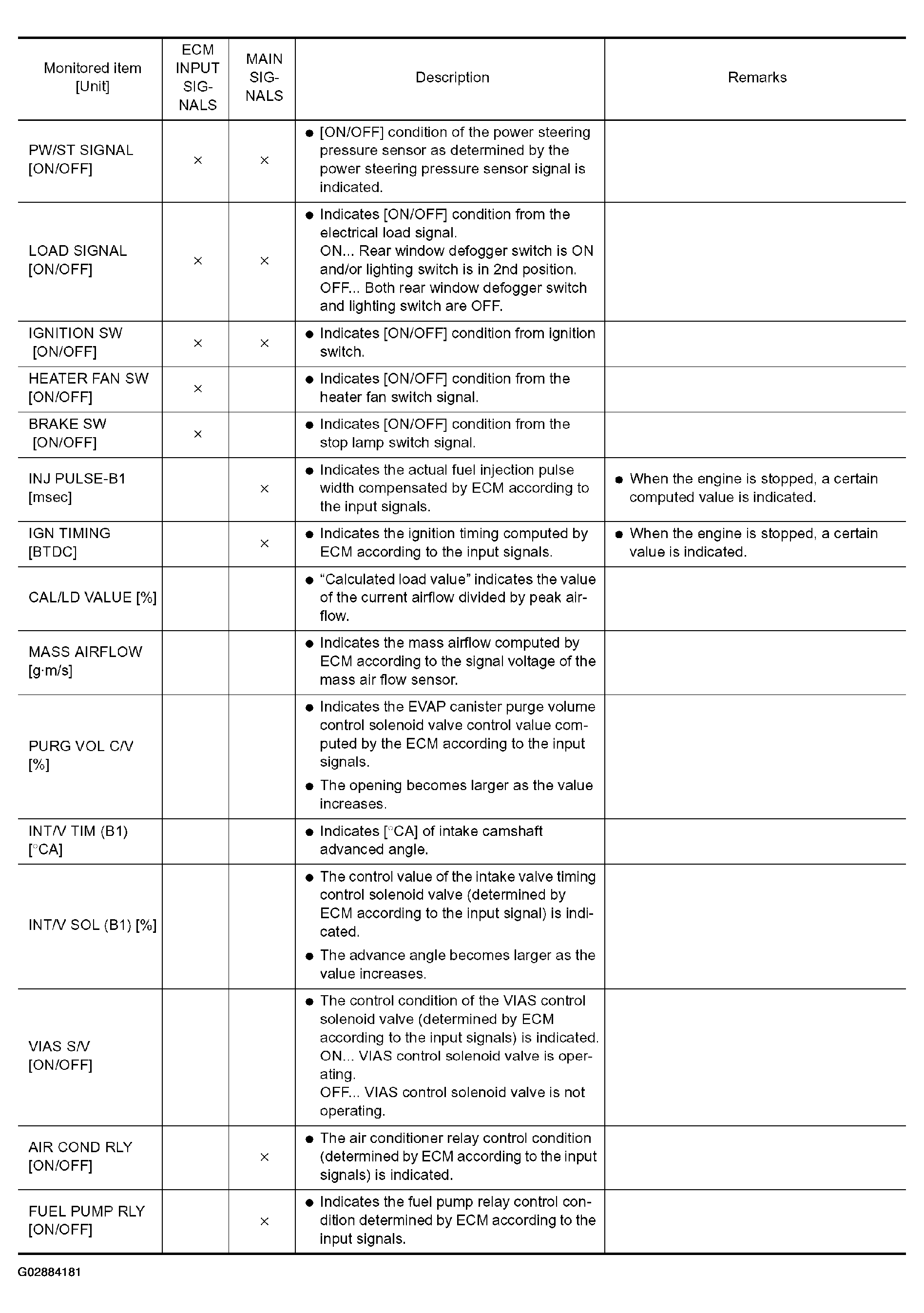

Fig 5: Data Monitor Mode Monitored Item Description Chart (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
