Work Item

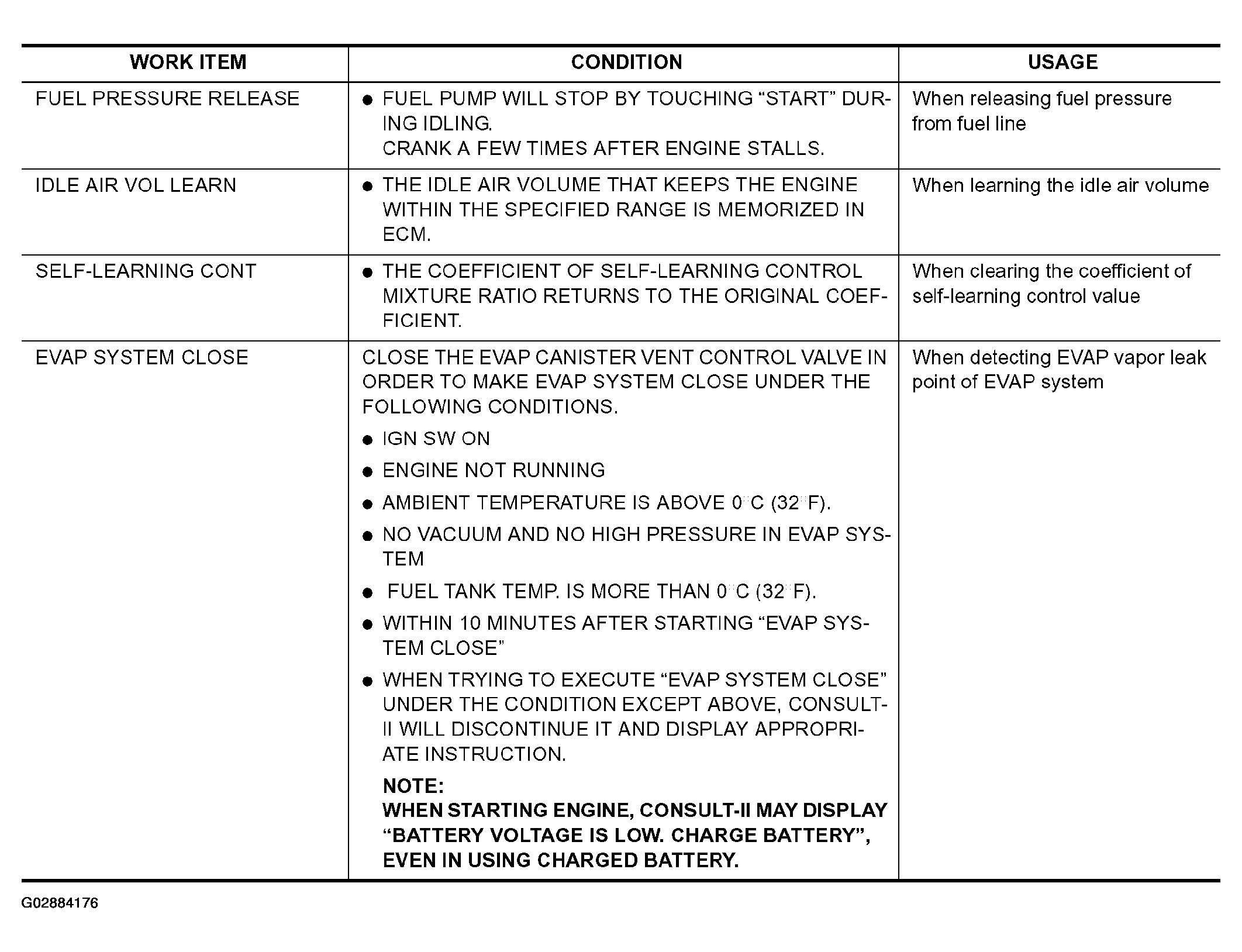

Fig 1: Identifying Work Support Mode Work Item Chart (1 Of 2)
G02884176Courtesy of NISSAN MOTOR CO., U.S.A.

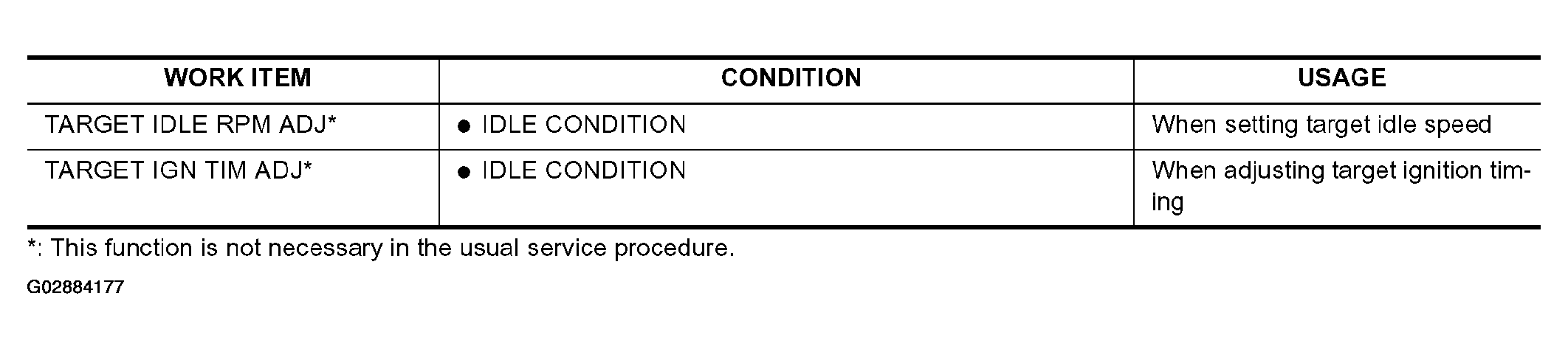

Fig 2: Identifying Work Support Mode Work Item Chart (2 Of 2)
G02884177Courtesy of NISSAN MOTOR CO., U.S.A.
